Philips 220E1SB/00 - LCD Monitor Description

5
Meridian 1
1.2 Physical specifications
• TILT - 5°~ 20°
• POWER SUPPLY 100~ 240 VAC, 50/60Hz
• POWER CONSUMPTION < 40W
*
(TYP.)
• TEMPERATURE
0℃ to 40℃ (OPERATING)
-20℃ to 60℃ (STORAGE)
• RELATIVE HUMIDITY 20% to 80%
• SYSTEM MTBF 50K HOURS (CCFL 50K HOURS)
• CABINET COLOR 220E1SB: BLACK
2. LCD Monitor Description
The LCD monitor will contain a main board, a power board and a key board which house the flat panel control logic,
brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.

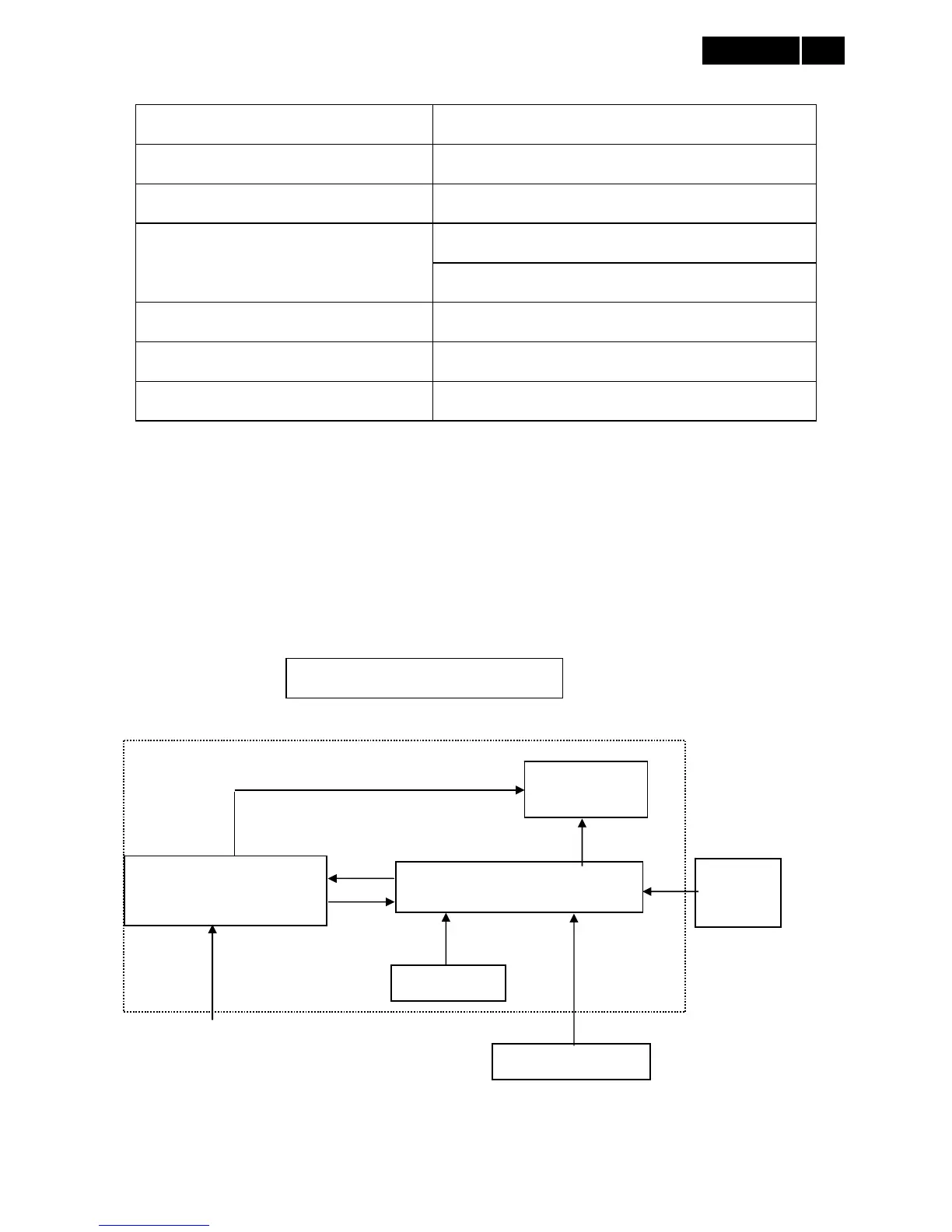

Monitor Block Diagram
AC-IN
100V-240V
Power board
(Include: Adapter, Inverter)
Flat Panel and
CCFL backlight
Main Board
DVI
D-SUB
CCFL Drive.
Video signal, DDC
Key Board
HOST Computer
