8.10

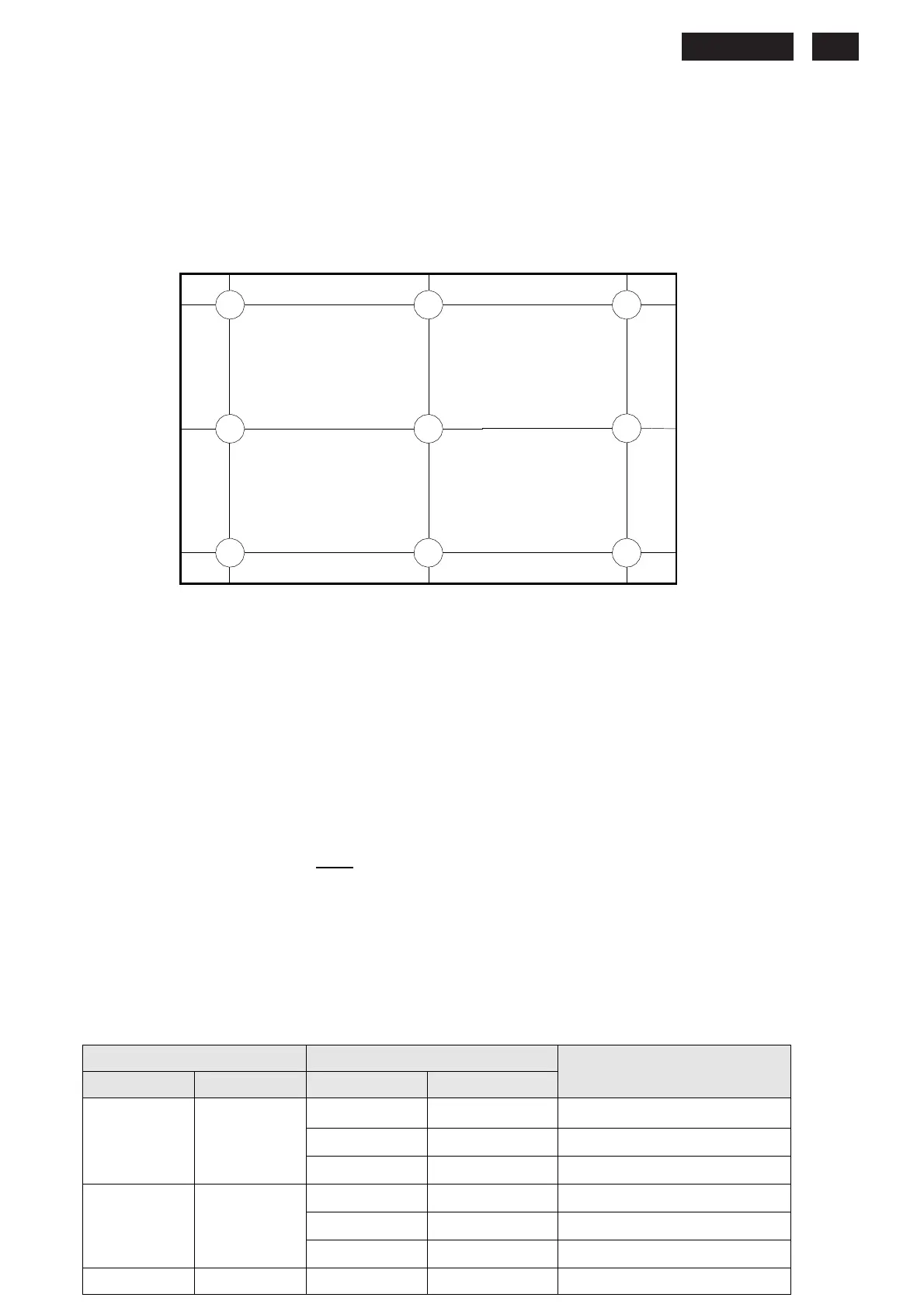

White Uniformity
Definition of White Variation (W):
Measure the luminance of gray level 255 at
9 points
W = Maximum [L(1), L(2)
…… L(9)] /
Minimum [L(1), L(2) …… L(9)]
90%
50%
10%
10%
1 2 3
4
5
6
50%
90%
Spec : =< 1.33 (In all ranges)
8.11
Contrast ratio
The
contrast ration can be calculated by following expression.
Contrast Ratio (CR) = L255 / L0
L255 : Luminance of gray level 255
L0 : Luminance of gray level 0
Typical value:
1000:1
8.12
White color adjustment
(FW)
There
are three factory preset white color 9300K, 6500K, sRGB.
Apply full gray 64 pattern, with brightness in 100 % position and the contrast control at 50 %
position. The 1931 CIE Chromaticity
(color triangle) diagram (x,y) coordinate for the screen
center
should be:
Product specification:
Mode Chromaticity Coordinate
OSD setting
Temp. x y
Remark
0.313 ±0.020 0.329 ±0.020 For product Spec(DQA test)
0.313 ±0.015 0.329 ±0.015 For OQC Test:
Warm 6500K
0.313 ±0.005 0.329 ±0.005 For production alignment test
0.283 ±0.020 0.298±0.020 For product Spec(DQA test)
0.283 ±0.015 0.298±0.015 For OQC Test:
Cool 9300K
0.283 ±0.005 0.298±0.005 For production alignment test
User Panel White x
Panel White y
