Philips 243V5LAB Series User Manual

Service Manual 243V5LAB
29

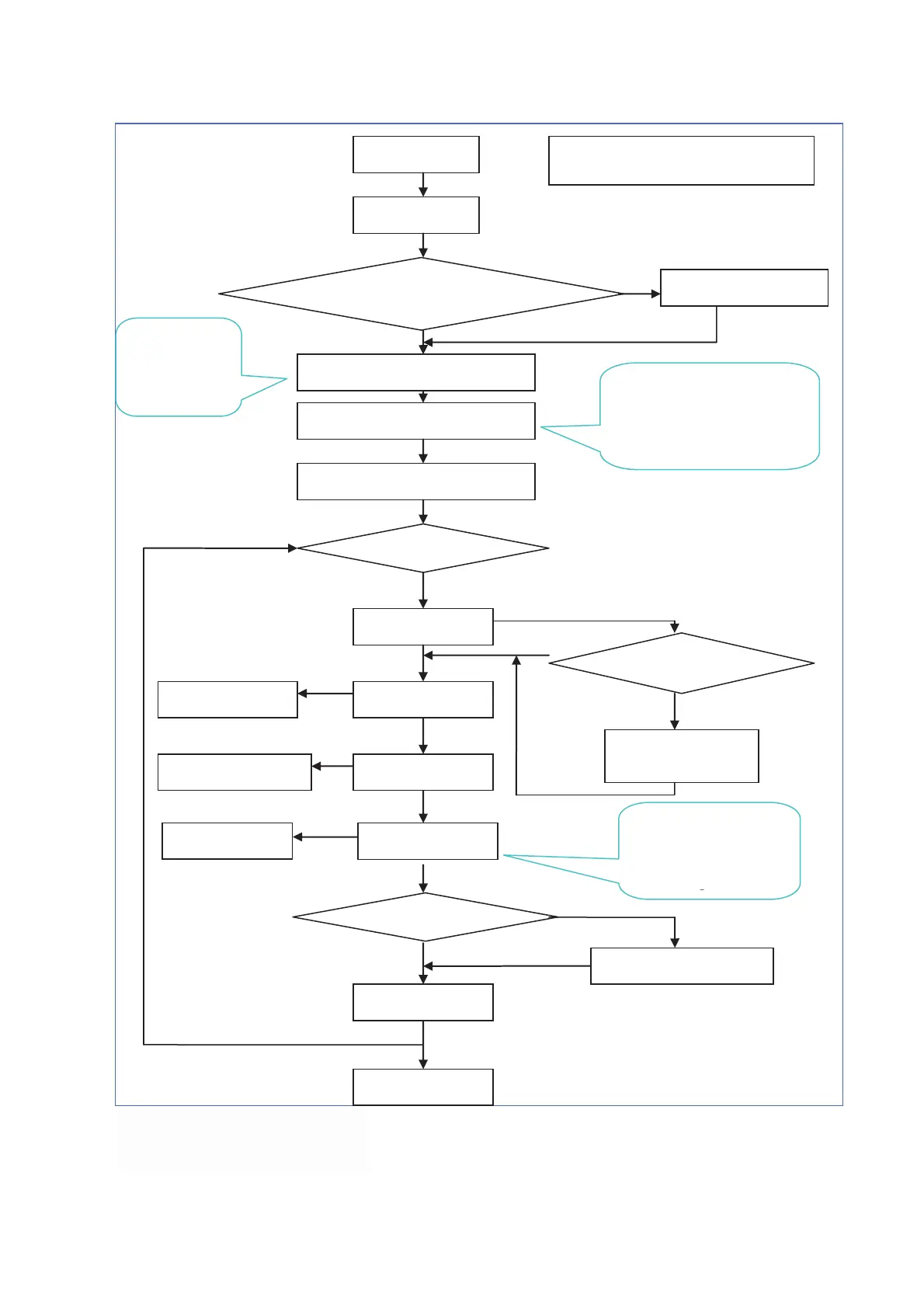

5.4 Software Flow Chart
Start
Initial_MCU
Check if DataBuffer Is blank
Check if Sum is changed ?
To Write default values
Read parameter_from Buffer
PowerHandler
Init_GlobalVariables
Initial_MCU Device
while
InputTiming
ModeHandler
MenuHandler
DebugHand
if standby mode?
Brightness
Contrast
Language
Input
Type
InputTimingStableCounter
OsdCounter
PowerDownCounter
LED turn-on
Show power on logo
if factory mode?
No signal message
UnsupportModeFlag
END
OSD Menu
Software Flow Chart
InputTiming
Phaes/F
requency
Image setup
Color
O
Enter factory mode OSD
Y
N
Y
