Service Manual 243V5LAB
40
8 Software step and Writing DDC˄
SOP
8.1 Software step
Step1:Connection (For example in a similar model)
1. Connect USB cable to the PC USB port and the ISP tool,˄715GT089-B˅
2. Will be the Monitor VGA cable to connect ISP tool;

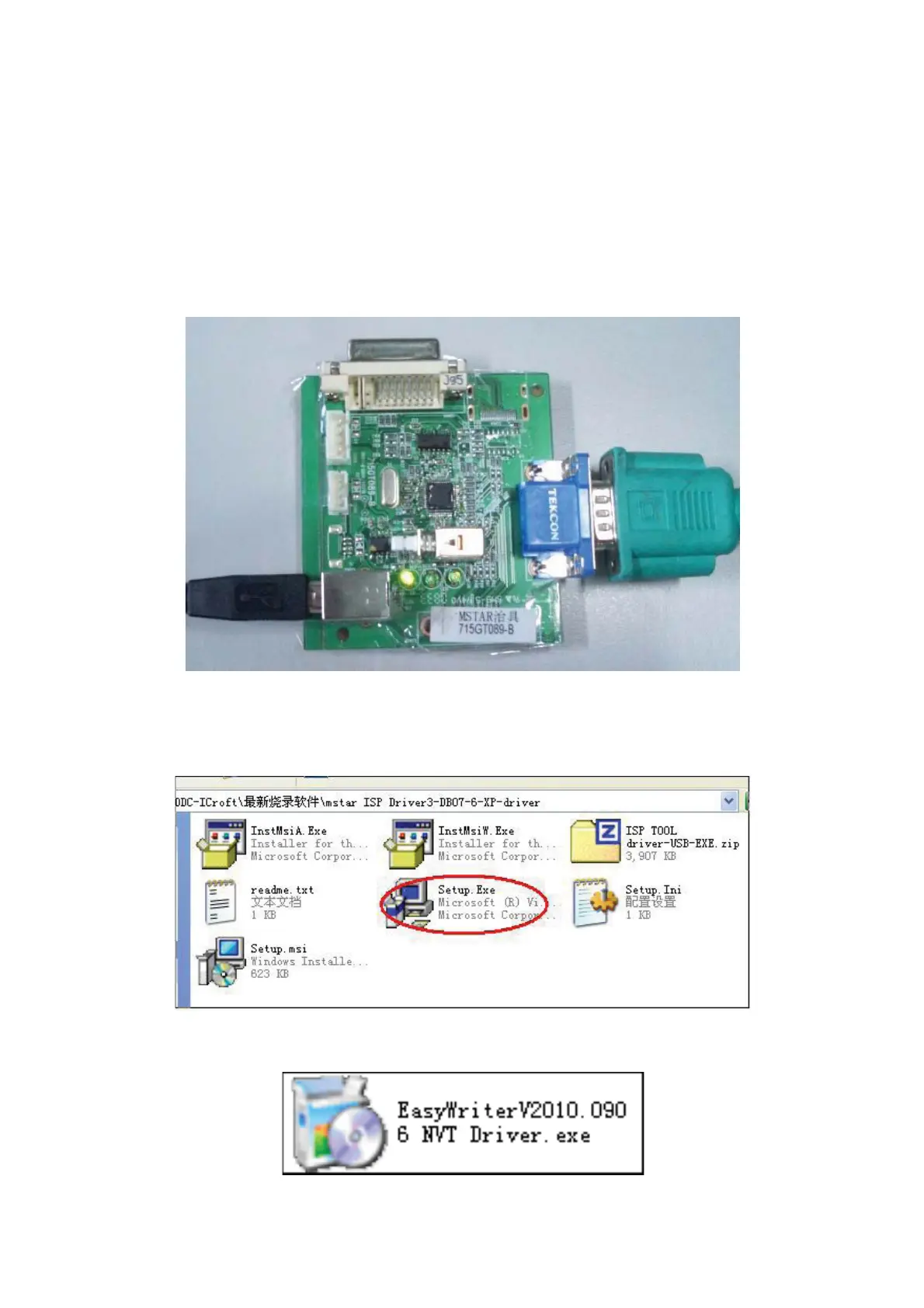

3. ISP tool card connection as shown below.
Step2⧜Installing driver software
1.To install the USB driver software, mstar ISP Driver3-DB07-6-XP-driver
2. To Run “RTD Customer Tool V1.7 Beta4 Install.exe”
To Next Page
