Philips 243V5LAB Series - Panel Feature; Display Characteristics; Mechanical Specifications

Service Manual 243V5LAB
22
3 Panel Feature
The LCM236HGJ02A11BX0F is a 23.6” TFT Liquid Crystal Display module with WLED Backlight unit and
30Pins 2ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors.

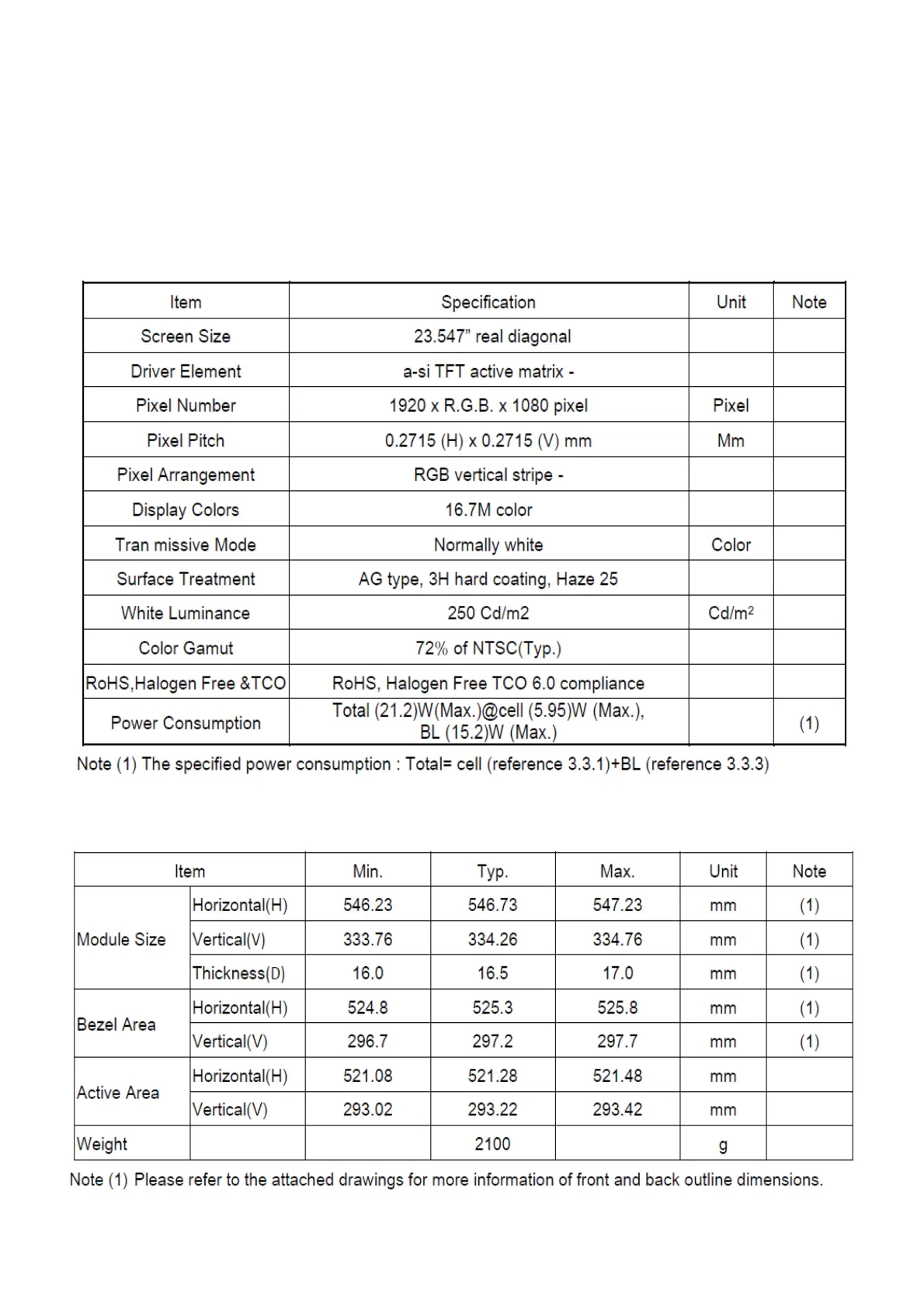

3.1 Display Characteristics
The following items are characteristics summary on the table under 25ć condition˖
3.2 MECHANICAL SPECIFICATIONS:
