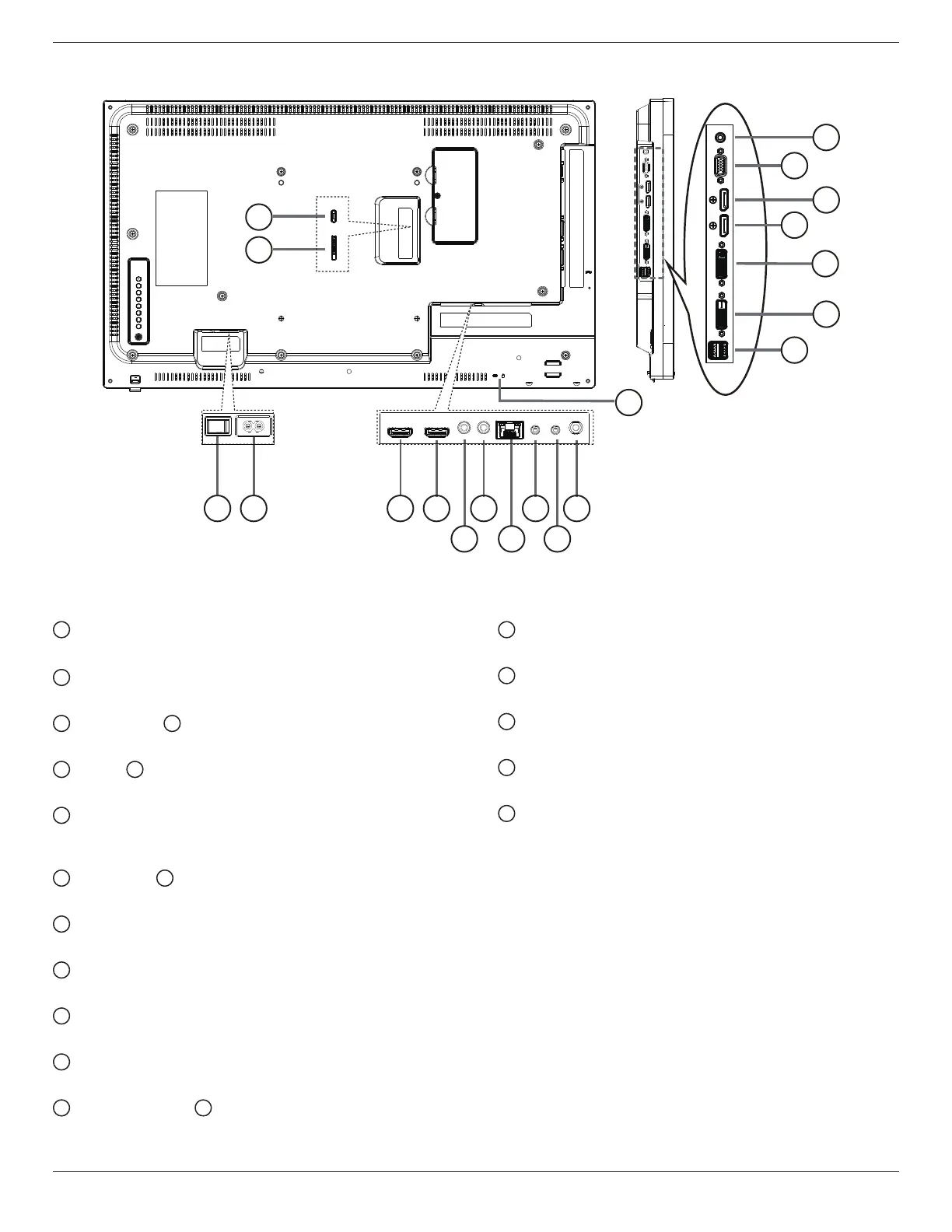

2.2. Input/Output Terminals
11
12
14
16
15
17
19
20
13
18
21 43 6
5
8
7
10
9
1
AC SWITCH
2
AC IN
ACpowerinputfromthewalloutlet.
3
HDMI1 IN /
4
HDMI2 IN
HDMIvideo/audioinput.
5
IR IN /
6
IR OUT
IRsignalinput/outputfortheloop-throughfunction.
7
RJ-45
LANcontrolfunctionfortheuseofremotecontrolsignalfrom
controlcenter.
8
RS232 IN /
9
RS232 OUT
RS232networkinput/outputfortheloop-throughfunction.
10
Audio OUT
AudiooutputtoexternalAVdevice.
11
USB PORT
ConnectyourUSBstoragedevice.
12
DVI IN
DVI-Dvideoinput.
13
DVI OUT
DVIorVGAvideooutput.
14
DisplayPort IN /
15
DisplayPort OUT
DisplayPortvideoinput/output.
16
VGA IN
VGAinput.
17
PC LINE IN
AudioinputforVGASource(3.5mmstereophone).
18
SECURITY LOCK
Usedforsecurityandtheftprevention.
19
MICRO USB
ConnectoryourUSBstoragedevice..
20
MICRO SD CARD
ConnectorMICROSDCARD.
