Technical Specifications, Connections, and Chassis Overview
EN 4 Q529.1E LA1.
1.2.2 Rear Connections
Service Connector (UART)
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
EXT 3 VGA: Video RGB - In

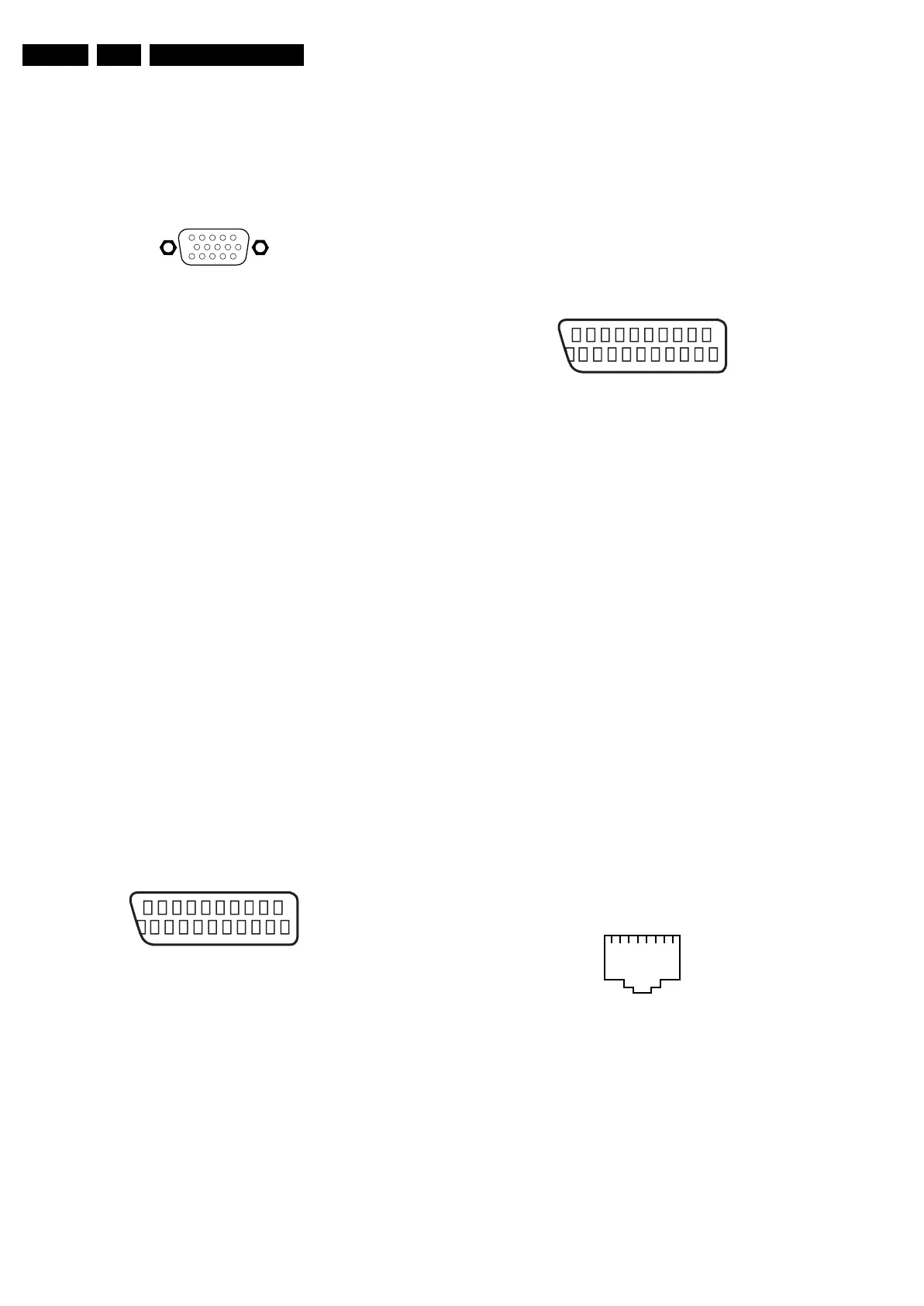

Figure 1-4 VGA Connector
1 - Video Red 0.7 V
PP
/ 75 Ω j
2 - Video Green 0.7 V
PP
/ 75 Ω j
3 - Video Blue 0.7 V
PP
/ 75 Ω j
4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 - n.c.
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
EXT3: Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 Ω kq
EXT3: Cinch: Video YPbPr - In
Gn - Video Y 1 V
PP
/ 75 Ω jq
Bu - Video Pb 0.7 V
PP
/ 75 Ω jq
Rd - Video Pr 0.7 V
PP
/ 75 Ω jq
EXT3: Cinch: Audio - Out
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ kq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ kq
EXT3: Cinch: Audio - In
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ jq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ jq
EXT1: Video RGB/CVBS - In, Audio - In
Figure 1-5 SCART connector
1-n.c.
2 - Audio R 0.5 V
RMS
/ 10 kΩ j
3-n.c.
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kΩ j
7 - Video Blue 0.7 V
PP
/ 75 Ω j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V
PP
/ 75 Ω j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Data Gnd H
15 - Video Red 0.7 V
PP
/ 75 Ω j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 Ω j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - n.c.
20 - Video CVBS 1 V
PP
/ 75 Ω j
21 - Shield Gnd H
EXT2: Video RGB - In, CVBS - In/Out, Audio - In/Out
Figure 1-6 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kΩ k
2 - Audio R 0.5 V
RMS
/ 10 kΩ j
3 - Audio L 0.5 V
RMS
/ 1 kΩ k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kΩ j
7 - Video Blue 0.7 V
PP
/ 75 Ω j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V
PP
/ 75 Ω j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red 0.7 V
PP
/ 75 Ω j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 Ω j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75 Ω k
20 - Video CVBS 1 V
PP
/ 75 Ω j
21 - Shield Gnd H
Aerial - In
- - IEC-type (EU) Coax, 75 Ω D
RJ45: Ethernet (if present)
Figure 1-7 Ethernet connector
1 - TD+ Transmit signal k
2 - TD- Transmit signal k
3 - RD+ Receive signal j
4-n.c.
5-n.c.
6 - RD- Receive signal j
7-n.c.
8-n.c.
1
6
10
11
5
15
E_06532_002.eps
050404
21
20
1
2
E_06532_001.eps
050404
21
20
1
2
E_06532_001.eps
050404
112345678
E_06532_025.eps
210905
