Philips 32PFL7623D/10 - Page 5

Technical Specifications, Connections, and Chassis Overview
EN 5Q529.1E LA 1.
HDMI 1, 2 & 3 Digital Video, Digital Audio - In
Figure 1-8 HDMI (type A) connector
1 - D2+ Data channel j
2-Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5-Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8-Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
Cinch: Audio - In
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ jq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ jq

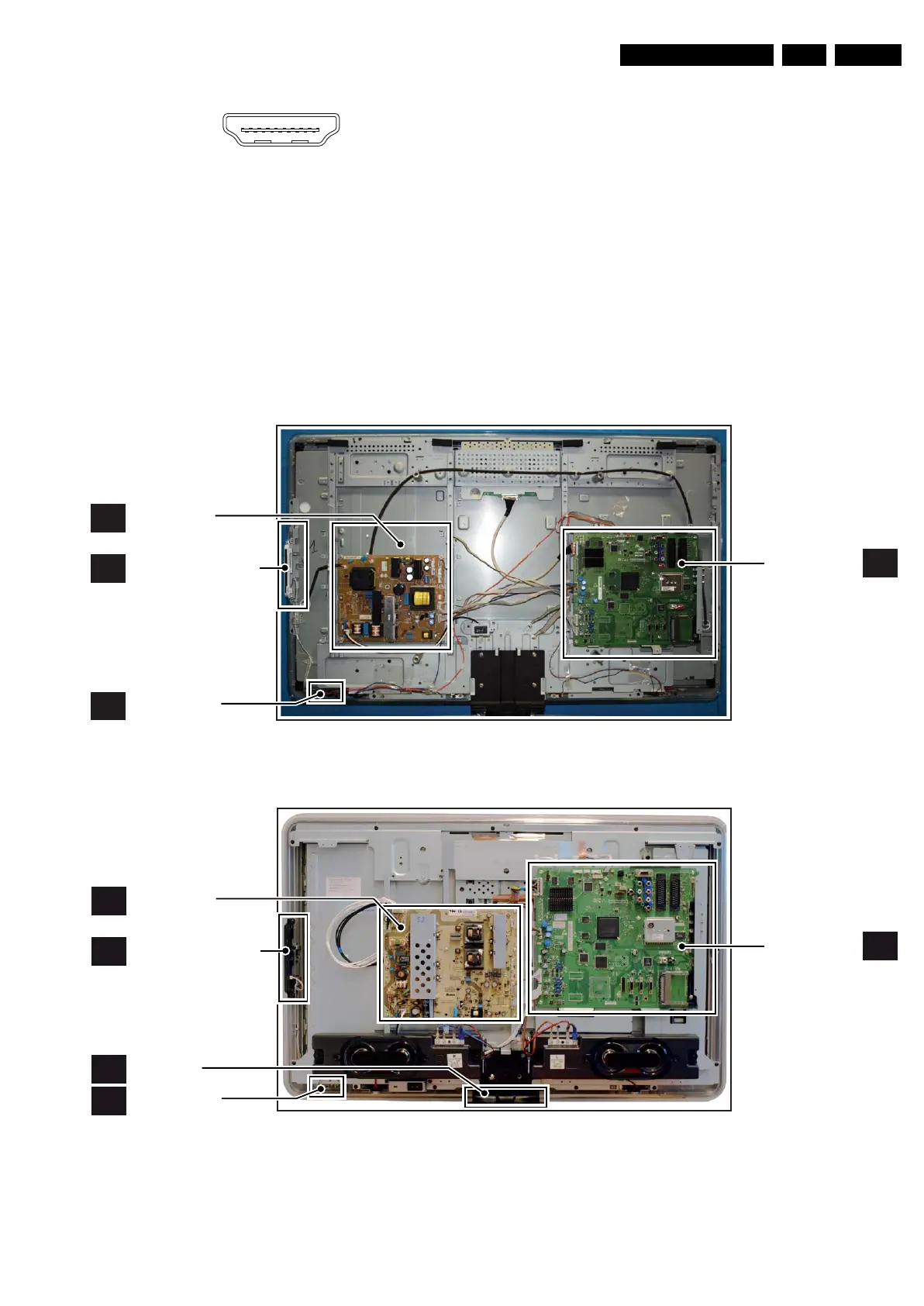

1.3 Chassis Overview
Figure 1-9 PWB/CBA locations 7-series
Figure 1-10 PWB/CBA locations 9-series
19
1
18 2
E_06532_017.eps
250505
I_17661_021.eps
180408
B
MAIN
SUPPLY PANEL
SMALL SIGNAL
BOARD
J
IR & LED PANEL
E
A
KEYBOARD CONTROL
PANEL
I_17660_104.eps
130308
B
MAIN
SUPPLY PANEL
SMALL SIGNAL
BOARD
J
IR & LED PANEL
L
LIGHTGUIDE
E
A
KEYBOARD CONTROL
PANEL
