Circuit Descriptions
EN 43QM16.3A LA 7.
2016-Jun-08
Table 2-1
7.3.1 Power layout SSB

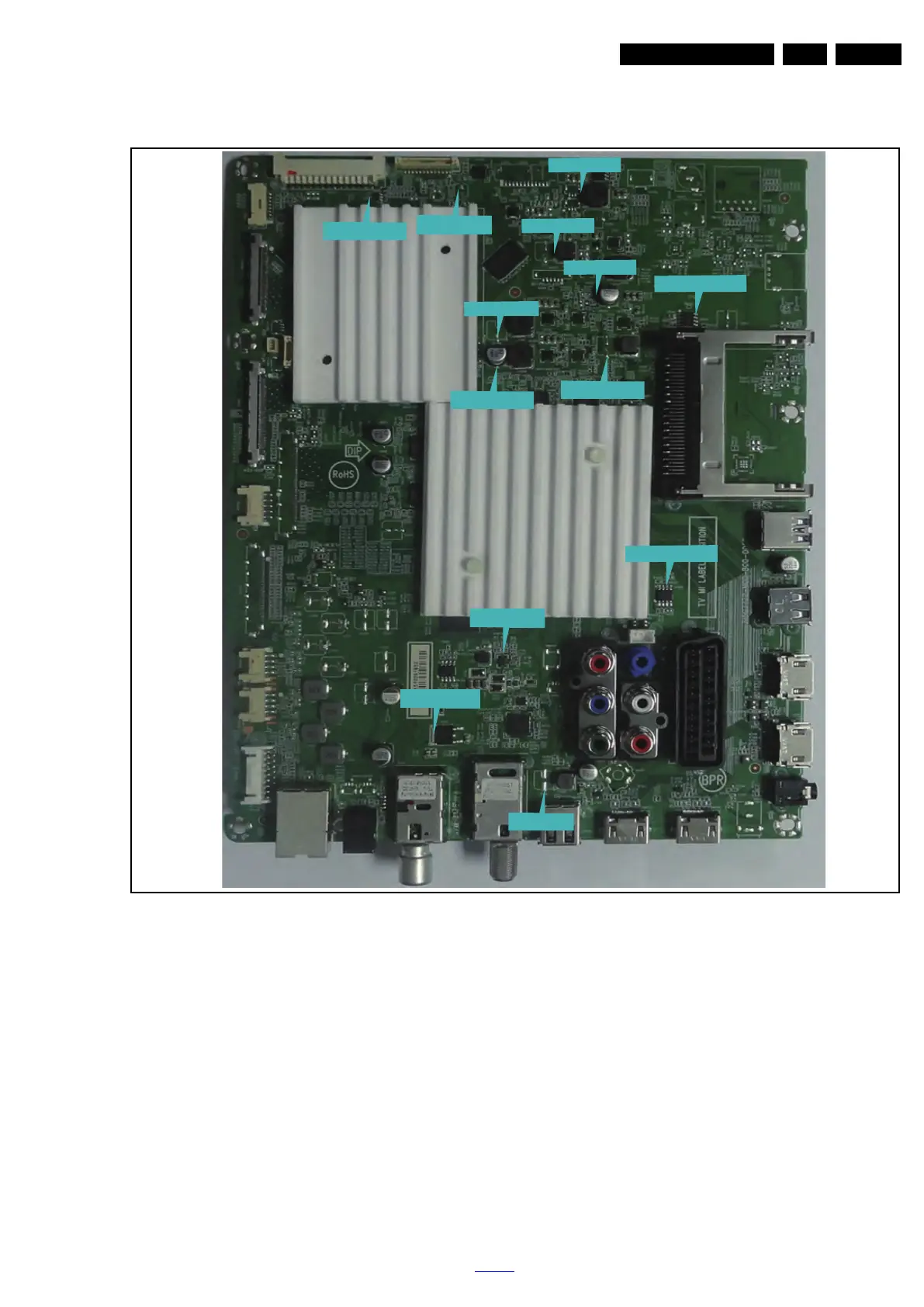

Figure 7-5 Power SSB Top View
20150_208.eps
R4292,Tuner_LNB
C4459,AMBI-Power
U4304 Pin1, +3V5SB
U8203 Pin4, +3V3-LAN
C4419(+), +5V-SW
C4377(+), +1V5-DDR
U705,+3V3_TUNER
C4114(+), +1V1-NT
C4369(+),+1V0-VCCK
C4310(+), DV12
L4300,+3V3-AVDD
U4300 Pin6, +1V0AVDD
L4101,+2V5-NT
