Philips 43PUT6801 - 7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

Circuit Descriptions
EN 44 QM16.3A LA7.
2016-Jun-08
Table 2-1

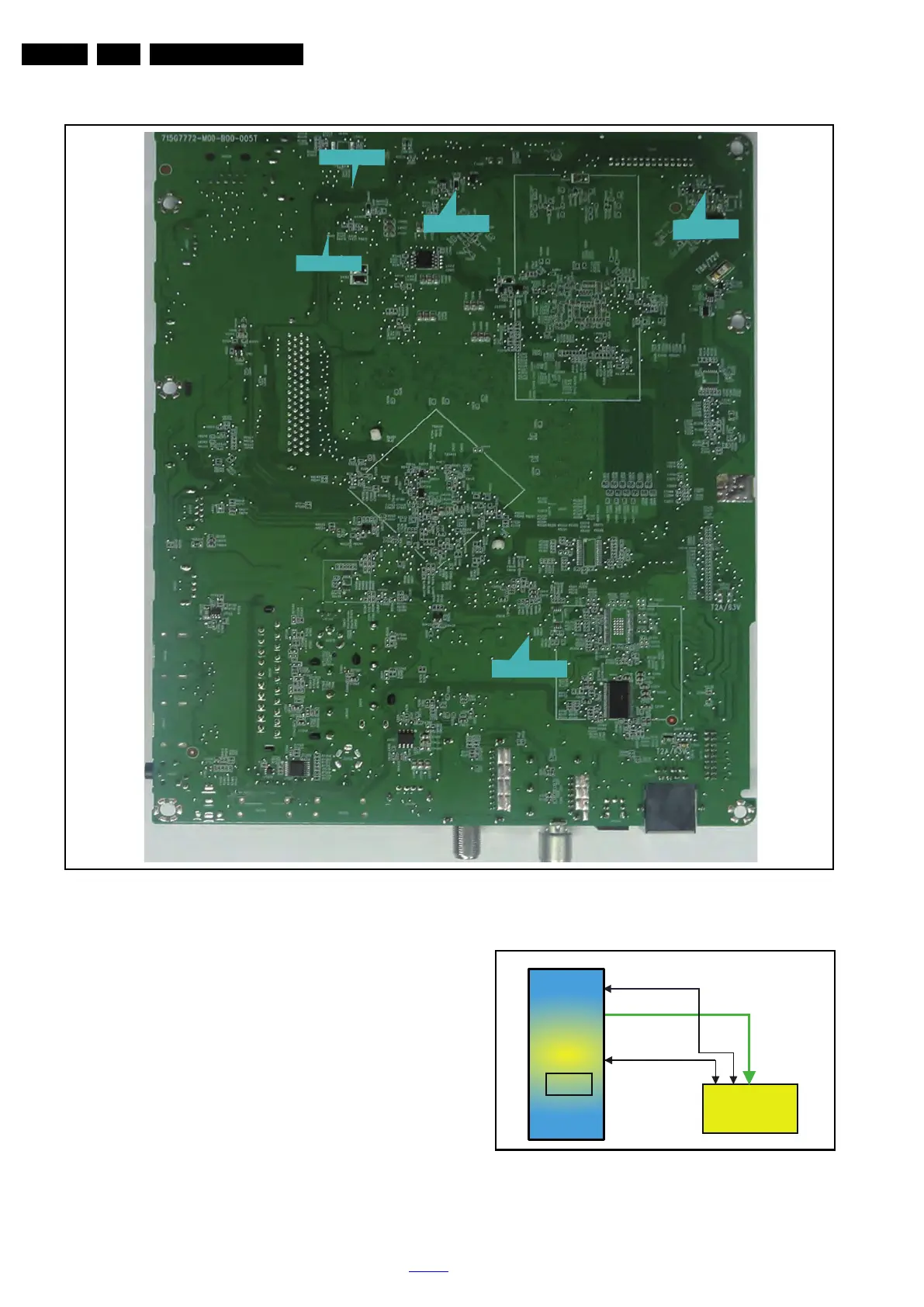

Figure 7-6 Power SSB Bottom View
7.4 Front-End Analogue and DVB-T, DVB-C;
ISDB-T reception
7.4.1 DVB-C part
The Front-End for analogue tuner consist of the following key
components:
• TUNER EUROPE TDSY-G480D
• TUNER EUROPE TDQS-A701F
• SCALER MT5593UGIJ HSBGA-900 Processor
Below find a block diagram of the front-end application for
DVB-C part.
Figure 7-7 Front-End DVB-C block diagram
7.4.2 DTB-T2 part The Front-End for DVT part consist of the following key
components:
20150_209.eps
TP4403,+3V3-WIFI
TP4400,+5V-SW
ZD4101,+3V3-NT
TP4314,+3V3
TP4321,+1V8EMMC
IF
IF_AGC
RF_AGC
MT5593U
IF_AGC
TDSY-G480D/TDQS-A701F
I
2
C
I
2
C
20150_203.eps
