65BDL3052E/75BDL3052E/86BDL3052E
24

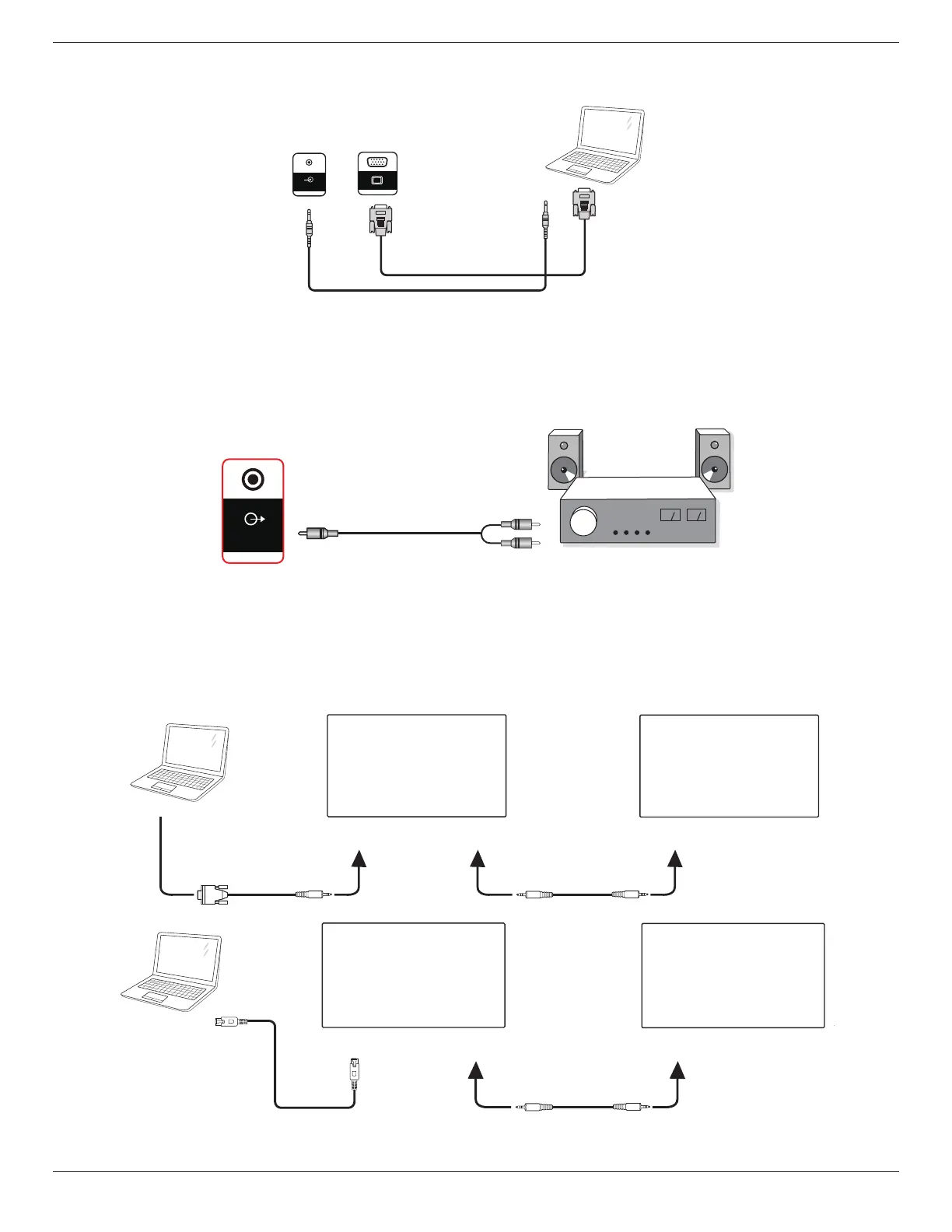

4.2.3. Using VGA
PC
[VGA IN]
VGA Out
D-Sub 15 pin
[PC LINE IN ]
Audio Out
AUDIO IN
VGA IN
4.3. Connecting Audio Equipment
4.3.1. Connecting an external audio device
Stereo Ampli�er
[AUDIO OUT]
Audio In
AUDIO OUT
4.4. Connecting Multiple Displays in a Daisy-chain Configuration
You can interconnect multiple displays to create a daisy-chain conguration for applications such as a menu board.
4.4.1. Display control connection
Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2.
PC
DISPLAY 2
DISPLAY 1
[RS232 IN]
[RS232]
[RS232 OUT] [RS232 IN]
PC
[RJ-45] [RS232 OUT] [RS232 IN]
DISPLAY 1 DISPLAY 2
[RJ-45]
