EN 3A02U AA 1.
1.2.2 Rear Connections

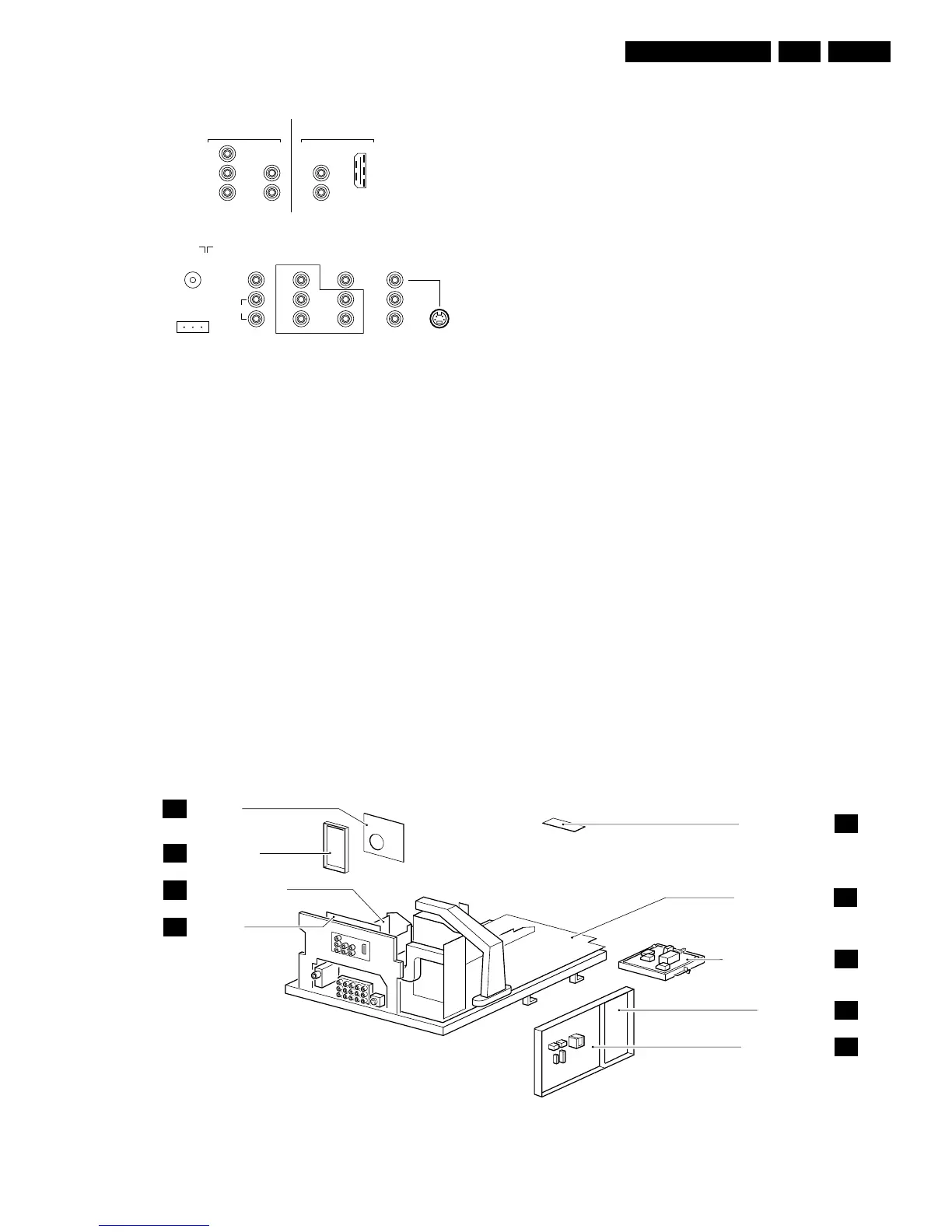

Figure 1-2 Rear connections
Aerial In
- F-type Coax, 75 ohm D
Monitor Out
Ye - Video (CVBS) 1 V_pp / 75 ohm kq
Wh - Audio - L 0.5 V_rms / 1 kohm kq
Rd - Audio - R 0.5 V_rms / 1 kohm kq
AV1 In
Gn - Y 0.7 V_pp / 75 ohm jq
Bu - Pb 0.7 V_pp / 75 ohm jq
Rd - Pr 0.7 V_pp / 75 ohm jq
Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.5 V_rms / 10 kohm jq
Rd - Audio - R 0.5 V_rms / 10 kohm jq
AV2 In
Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.5 V_rms / 10 kohm jq
Rd - Audio - R 0.5 V_rms / 10 kohm jq
AV2 In (SVHS)
1 - Ground GND H
2 - Ground GND H
3 - Y 1 V_pp / 75 ohm jq
4 - C 0.3 V_pp / 75 ohm jq
AV4 In (not used for 27/32MS series)
Wh - Audio - L 0.5 V_rms / 10 kohm jq
Rd - Audio - R 0.5 V_rms / 10 kohm jq
HDMI (not used for 27/32MS series)
1 - RX2+ Data channel j
2 - GND Ground H
3 - RX2- Data channel j
4 - RX1+ Data channel j
5 - GND Ground H
6 - RX1- Data channel j
7 - RX0+ Data channel j
8 - GND Ground H
9 - RX0- Data channel j
10 - RXC+ Data channel j
11 - GND Ground H
12 - RXC- Data channel j
13 - n.c.
14 - n.c.
15 - DDC SCL DDC clock j
16 - DDC SDA DDC data jk
17 - GND Ground H
18 - +5V j
19 - HPD j
20 - GND Ground H
21 - GND Ground H
22 - GND Ground H
23 - GND Ground H
24 - GND Ground H
AV5 In
Gn - Y 0.7 V_pp / 75 ohm jq
Bu - Pb 0.7 V_pp / 75 ohm jq
Rd - Pr 0.7 V_pp / 75 ohm jq
Wh - Audio - L 0.5 V_rms / 10 kohm jq
Rd - Audio - R 0.5 V_rms / 10 kohm jq
1.3 Chassis Overview
Figure 1-3 PWB location
VIDEO
AUDIO
L/Mono
R
Y
Pb
Pr
V
L
R
V
L
R
Y
Pb
Pr
VIDEO AUDIO HDMI
L
R
L
R
S-VIDE
O
MONITOR
OUT
75 Ohm
AV1
IN
COMPONENT VIDEO INPUTSERVICE
CONNECTOR
AV2
IN
AV5
IN
AV4
IN
E_13950_001.ep
s
03030
4
AUDIO
SMALL SIGNAL BOARD
B
HDMI PANEL
M
CRT PANEL
F
SIDE I/O PANEL
D
E_13950_002.eps
270204
LARGE SIGNAL PANEL
A
VDAF + 2ND ORDERS
PANEL
I
DC SHIFT PANEL
(OPTIONAL)
G
FRONT INTERFACE PANEL
J
TOP CONTROL PANEL
E
