Technical Specifications, Connections, and Chassis Overview
EN 2 A02U AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1. Technical Specifications
2. Connections
3. Chassis Overview
Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.
1.1 Technical Specifications
1.1.1 Vision
Display type : DV-CRT-RF
Screen size(s) : 26 inch - 16:9
: 27 inch - 4:3
: 30 inch - 16:9
: 32 inch - 4:3
: 34 inch - 16:9
Tuning system : PLL
IF frequency : 45.75 MHz
Color systems : NTSC M (3.58-4.5)
Channel selections : 181 presets
: Full cable, UHF
Video playback : ATSC
: 480p
: 1080i
Aerial input : 75 ohm, F-type
1.1.2 Sound
Sound systems : BTSC DBX
Maximum power : 2 x 10 W_rms (int.)
1.1.3 Miscellaneous
Mains voltage : 110 V_ac
Mains frequency : 50 / 60 Hz
Ambient temperature : +5 to +45 deg. C
Maximum humidity : 90 % R.H.
Power consumption
- Normal operation : ≈ 159 W
- Standby : < 1 W
1.2 Connections
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, Ye= Yellow.
1.2.1 Top Control and Front / Side Connections

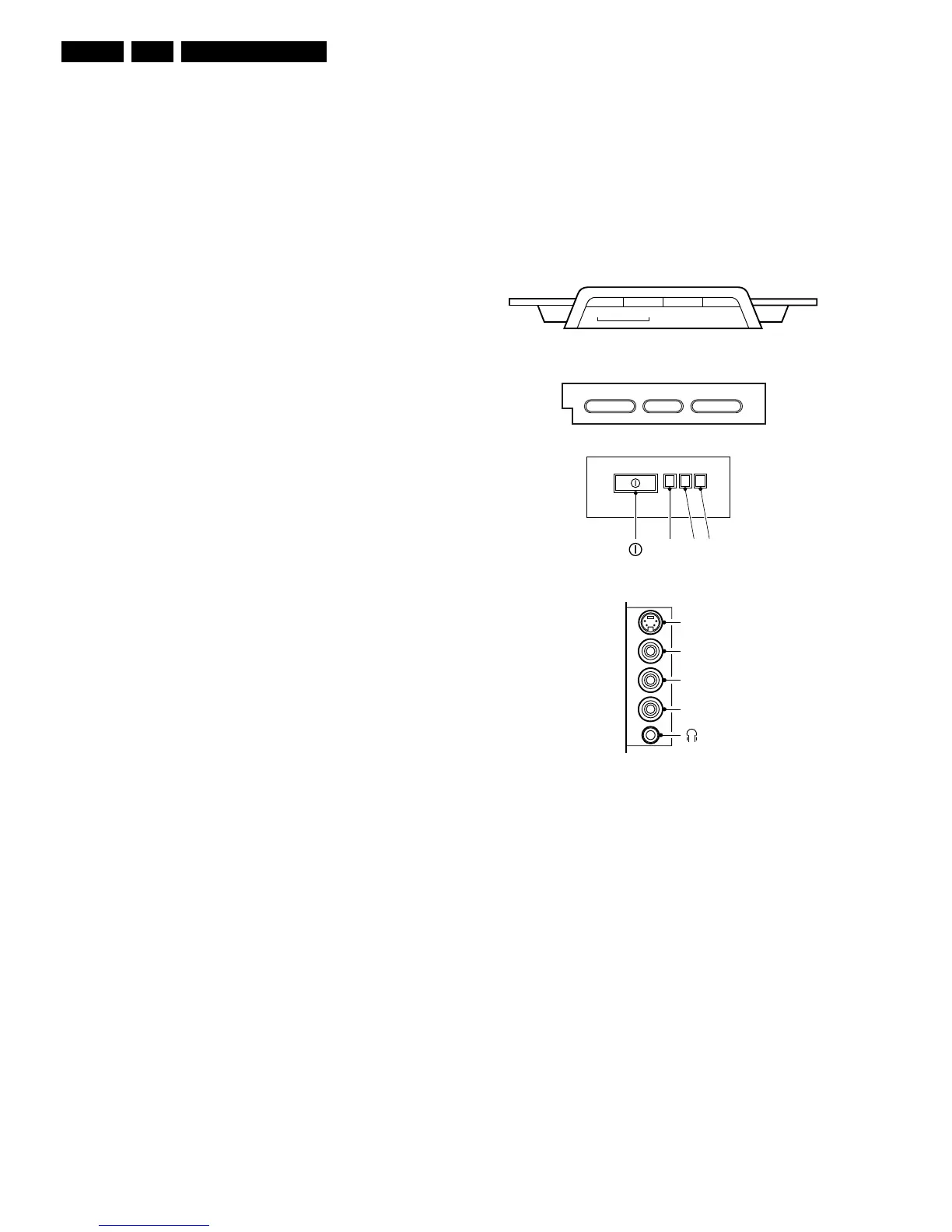

Figure 1-1 Top control and Front / Side connections
Hosiden: SVHS - In
1 - Y Ground H
2 - C Ground H
3 - Y 1 V_pp / 75 ohm j
4 - C 0.3 V_pp / 75 ohm j
Audio / Video In
Ye - Video (CVBS) 1 V_pp / 75 ohm H
Wh - Audio - L 0.2 V_rms / 10 kohm jq
Rd - Audio - R 0.2 V_rms / 10 kohm jq
Mini Jack: Headphone - Out
- Headphone 32 - 600 ohm / 10 mW ot
RED
LED
E_13950_006.eps
110304
IR LIGHT SENSOR
(OPTIONAL)
TOP CONTROL (for FL13 styling)
SIDE I/O
FRONT I/O
VOLUME-+ -+CHANNELMENU
S-VIDEO
VIDEO
L
AUDIO
R
TOP CONTROL (for PV2 styling)
VOLUME-+-+CHANNELMENU
CH
MENU
