Philips BDL4251V - PRODUCT SPECIFICATIONS

User Manual BDL4251V
49
Pin No Name
1 V ideo Signal Red
2 V ideo Signal Green
3 V ideo Signal Blue
4 GND
5 DDC-GND
6 Red-GND
7 Gr een-GND
8 Blue-GND
9 +5V (DDC)
10 SYNC-GND
11 GND
12 DDC-SDA
13 H-SYNC
14 V -SYNC
15 DDC-SCL
Pin - Assignment of HDMI connector:
1
TMDS Data2+
8
TMDS Data0 Shield
15
SCL
2
TMDS Data2 Shield
9
TMDS Data0-
16
SDA
3
TMDS Data2-
10
TMDS Clock+
17
DDC/CEC Gr ound
4
TMDS Data1+
11
TMDS Clock Shield
18
+5V Power
5
TMDS Data1 Shield
12
TMDS Clock-
19
Hot Plug Detect
6
TMDS Data1-
13
CEC
7
TMDS Data0+
14
Reserved (N.C. on device)
Pin No Name
1
NC
2 RXD
3
TXD
4 NC
5
GND
6 NC
7
RT S
8
CTS
9 NC

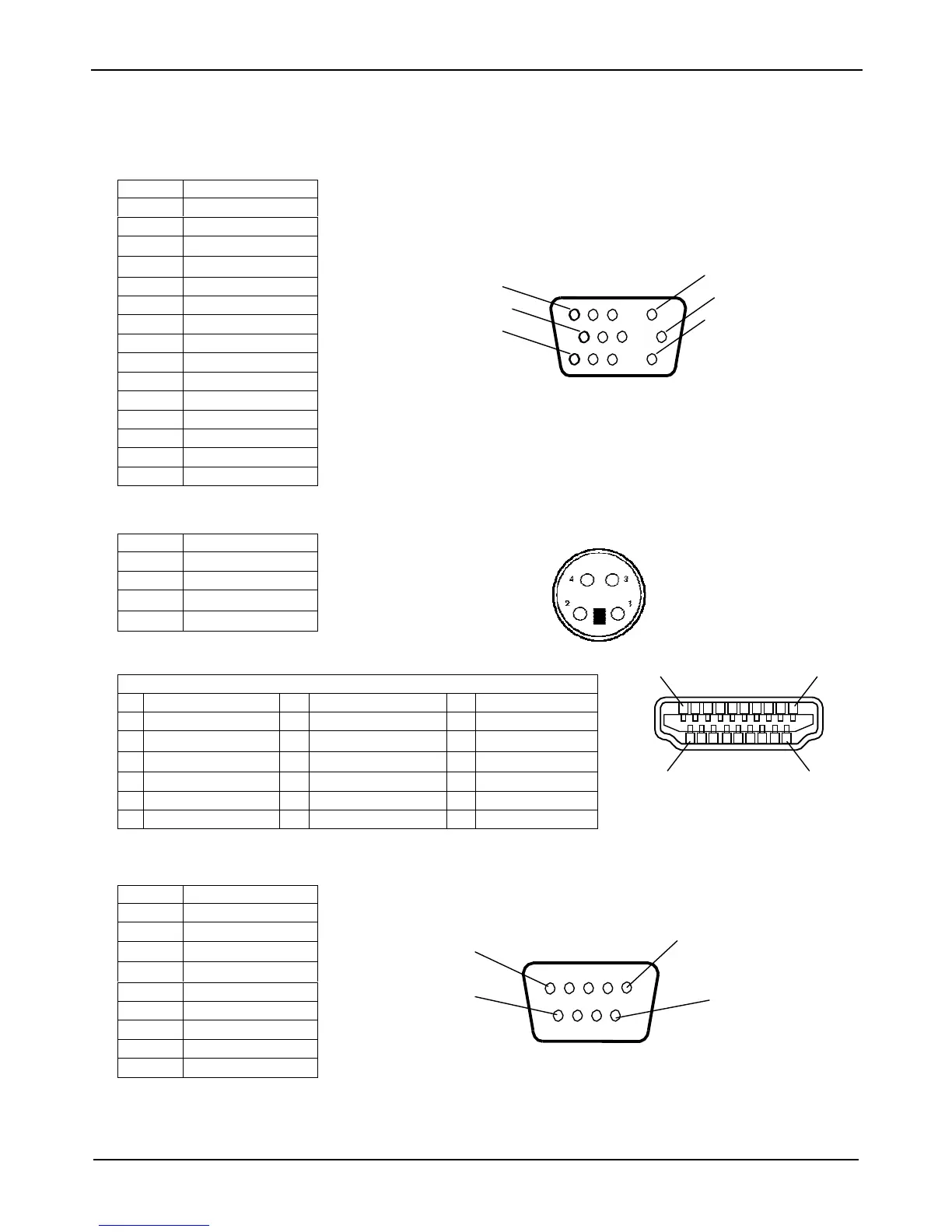

Pin Assignment
1) Analog Video Signal Input (Mini D-SUB 15P): VGA
Mini D-SUB 15P
1
5
6
10
11
15
2) S-VIDEO input (MINI DIN 4P): S-VIDEO
3) HDMI:
MINI DIN 4P
4) RS232C input/output
Mini D-SUB 9P
1
6
5
9
1
2
18
19
HDMI
Pin No
Name
1
GND
2
GND
3
Y (Luminance)
4
C (Chroma)
