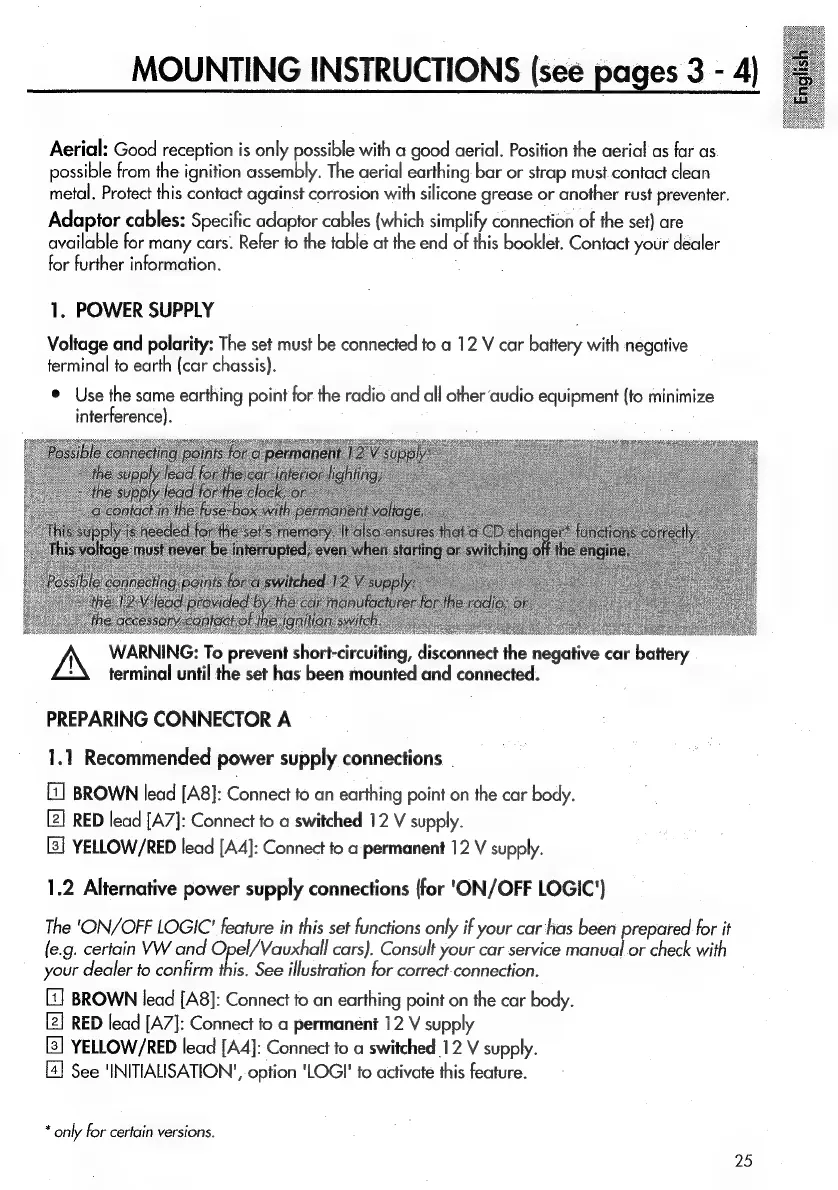

MOUNTING INSTRUCTIONS (see pages 3 - 4)
Aerial: Good reception is only possible with a good aerial. Position the aerial as far as
possible from the ignition assembly. The aerial earthing bar or strap must contact clean
metal. Protect this contact against corrosion with silicone grease or another rust preventer.
Adaptor cables: Specific adaptor cables (which simplify connection of the set) are
available for many cars. Refer to the table at the end of this booklet. Contact your dealer
for further information.
1. POWER SUPPLY
Voltage and polarity: The set must be connected to a 12 V car battery with negative
terminal to earth (car chassis).
© Use the same earthing point for the radio and all other audio equipment (to minimize
interference).
Be
A WARNING: To prevent short-circuiting, disconnect the negative car battery
terminal until the set has been mounted and connected.
PREPARING CONNECTOR A
1.1 Recommended power supply connections
BROWN lead [A8]: Connect to an earthing point on the car body.
RED lead [A7]: Connect fo a switched 12 V supply.
YELLOW/RED lead [A4]: Connect to a permanent 12 V supply.
1.2 Alternative power supply connections (for 'ON/OFF LOGIC')
The ‘ON/OFF LOGIC’ feature in this set functions only if your car has been prepared for it
(e.g. certain VW and Opel/Vauxhall cars). Consult your car service manual or check with
your dealer to confirm this. See illustration for correct connection.
BROWN lead [A8]: Connect fo an earthing point on the car body.
RED lead [A7]: Connect fo a permaneni 12 V supply
YELLOW/RED lead [A4]: Connect to a switched 12 V supply.
See 'INITIALISATION’, option 'LOGI' to activate this feature.
