15
DELL P1230 M25P

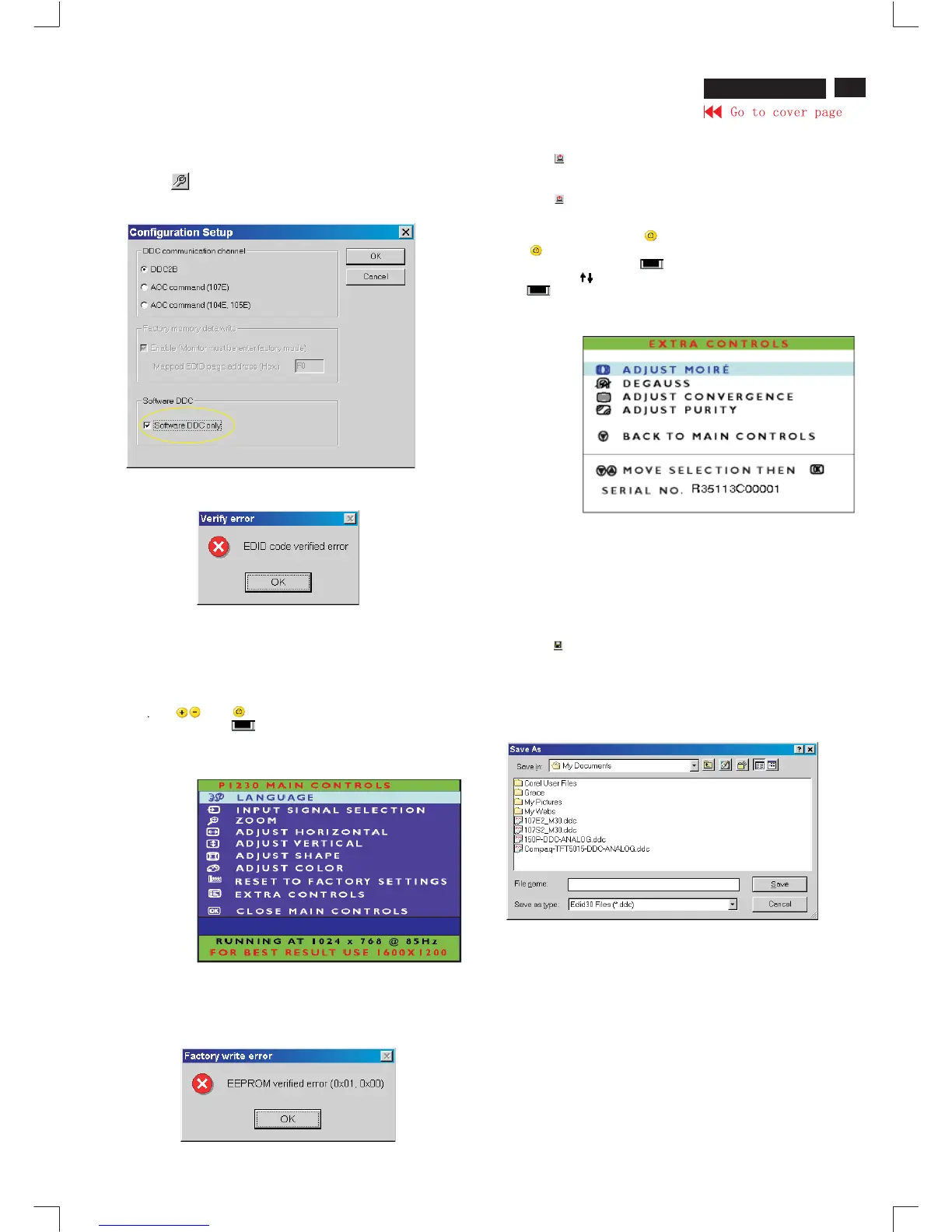

DDC Instructions (Continued)
Fig. 16
Fig. 18
Step 8: Save DDC data
Sometimes, you may need to save DDC data as a text file for using
in other IC chip. To save DDC data, follow the steps below:
1. Click (Save) icon (or click "file"-> "save as") from the tool bar
and give a file name as shown in Fig. 19.
The file type is EDID301 file (*.ddc) which can be open in WordPad.
By using WordPad, the texts of DDC data & table (128 bytes, hex
code) can be modified. If DDC TEXTS & HEX Table are completely
correct, it can be saved as .ddc flie to re-load it into EEPROM for
DDC Data application.
Step 5: **Configuration Setup & Enter Factory Mode **
for "write EDID data"
1. Click icon from the tool bar to bring up the Configuration
Setup windows again. Then, select "Software DDC only" as shown
in
Step 6: Write DDC data
1. Click (Write EDID) icon from the tool bar to write DDC data.
Bring up "Writing 0%~100%, ready" a progressing bar on the left
down corner.
2. Click (Read EDID) to confirm it.
Step 7: Confirm Serial Number in User Mode
1. Press the power button to turn off the monitor. Then press it
again to turn on the monitor.
2. Press the OSD button to bring up the OSD Main Menu.
3. Press the button to select (INFORMATION), press the
button to confirm your selection/change.
4. Once the Serial Number has been changed, to confirm the change
as shown in Fig. 18.
Fig. 19
If you do not select "Software DDC only", when you execute
"write EDID", it will bring up an error message as below.
If you do not access "Factory mode", when you execute
"write EDID", it will bring up an error message as below.
2. Click .Save
Fig. 17
Factory mode indication
Serial number indication -->
2.Access factory mode
How to get into Factory Mode Menu
Step1:
Turn off monitor (do not turn off PC)
Step 2:
Press " " and " "simultaneously on the frond control
panel, then press " " ,wait till the OSD menu with characters
DELL P1230 VO.15 20031119(below OSD menu)" come on the
screen of monitor.
01379
DE L L P1230 VO.15 20031119
DELL P1230
