Philips DELLP1230 - Exploded View

36
XXX
Go to cover page
36

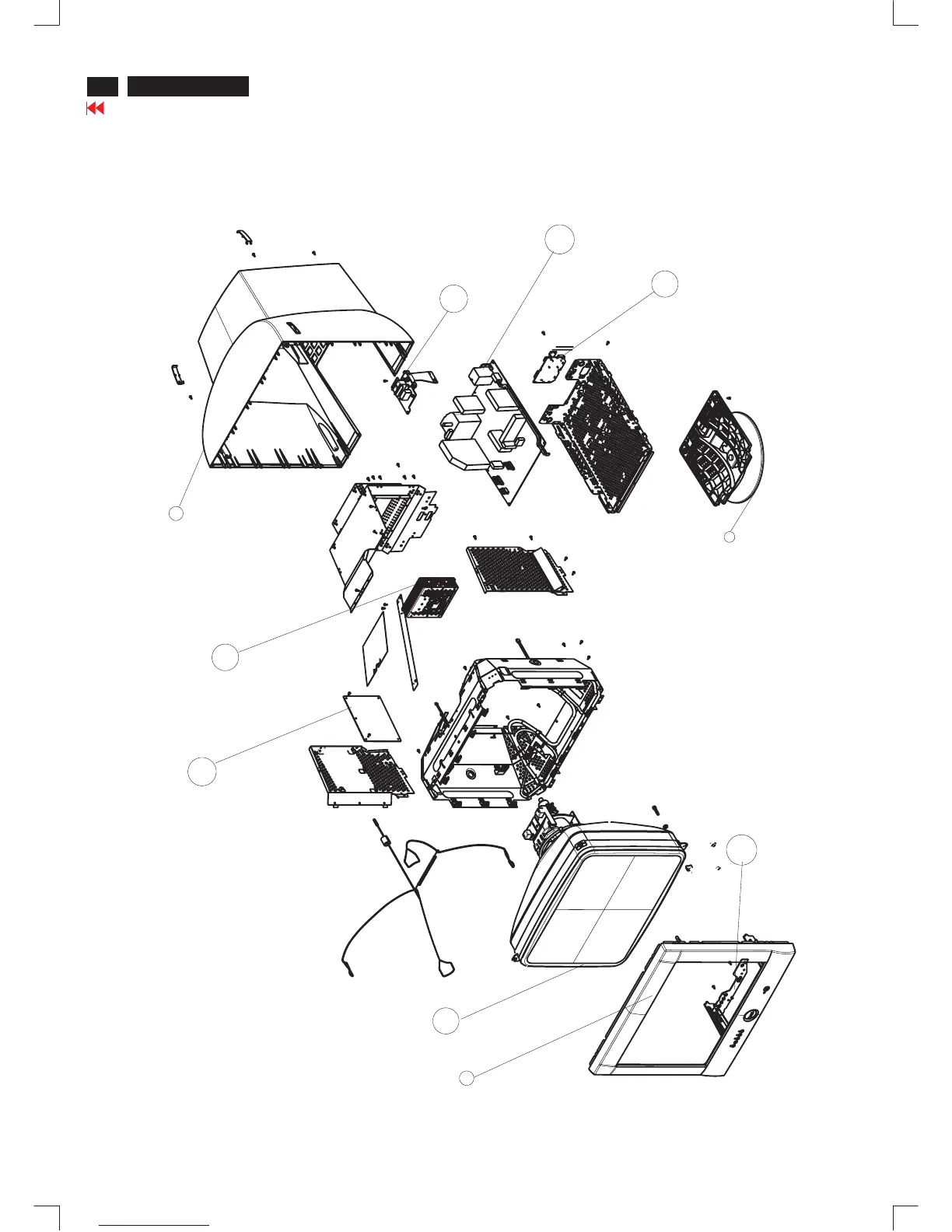

Exploded View
DELL P1230 M25P
1
313812754391
FRONT CABINET ASSY
2
313812754401
BACK COVER ASSY (BLK)
3
313812754421
PEDESTAL ASSY
1051
932220343682
M51LVT42X71A(MITJ)
1160
313817867421
MAIN PCB ASSY
1161
313817867431
VIDEO PCB ASSY
1162
313817867441
TERMINAL PCB ASSY
1164
313817867291
DRIVE PCB ASSY
1165
313817867301
MHR PCB ASSY
1163
313817867451
CONTROL PCB ASSY
