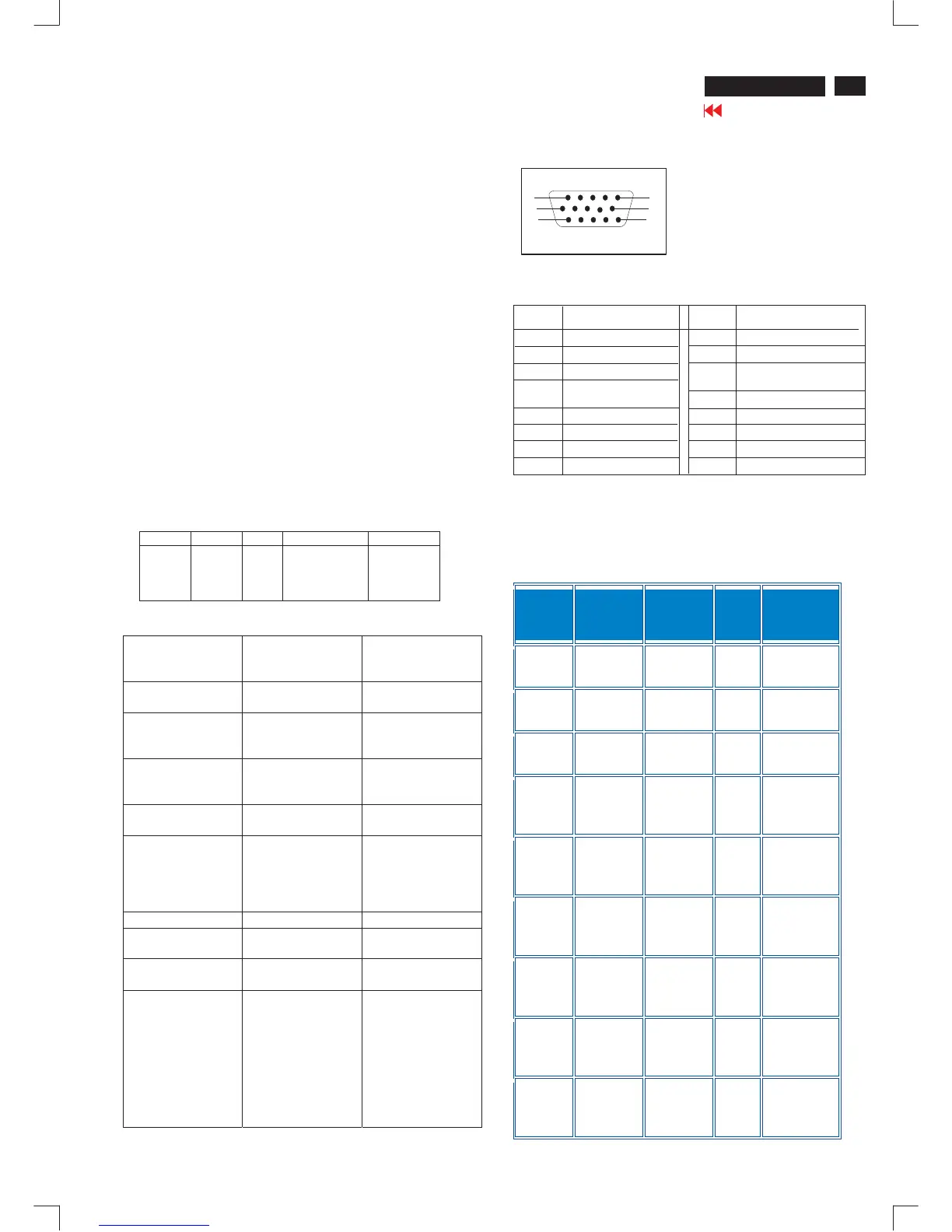

Technical Data
Pin assignment :
:The 15-pin D-sub connector(male) of the signal cable
Assignment
Assignment
Pin No.
Pin No.
Ground
Ground
Blue video input
2
7
6
8
4
5
3
1
9
12
11
14
13
15
10
Red video ground
Blue video ground
Green video ground
Self test
PC +5V for DDC
Ground
DDC Data CLOCK (SCL)
V.Sync
H.Sync
Bi-directional data(SDA)
Green video input
Red video input
(1)
1
10
6
11
15
5
Data Storage
Factory preset mode:
This monitor has 8 factory-preset modes as indicated in the
following table :
DELL P1230 M25P
Dimensions Width:
Depth:
Height:
512.8 mm (20.19 in.)
483.6 mm (19.04 in.)
516.4 mm (20.33 in.)
Weight With Packaging:
Without Packaging:
35.5 kg (78.19 lb )
30.5 kg (67.18 lb)
Tilt Swivel Forward tilt:
Backward tilt:
Swivel:
5
15
+90 /-90
Image Maximum Height:
Maximum Width:
Dot Pitch:
304.80 mm (12.00 in.)
406.44 mm (16.00 in.)
0.24 mm (0.0094 in.)
Power Input Supply Voltage:
Max Supply Current :
90-264 V ac, 47-63 Hz
1.8A at 100 V ac
Video Input Input Signal:
Horiz. Addressability:
Vert. Addressability:
Clock Rate
Analog Direct Drive,
75 ohm 0-0.7 V
2048 pels (maximum)
1536 lines (maximum)
360 MHz
Communications VESA DDC 2B
Synchronization R ange Horiz. Frequency:
Vert. Frequency:
30 kHz-130 kHz
50 Hz-160 Hz
Power Consumption
(Typical)
Normal Operation:
Off:
<130 W
<1 W
Environment Operating Temperature:
Storage Temperature:
Shipping Temperature:
Operating Humidity:
Storage Humidity:
Shipping Humidity:
Emissions:
0 to 35 C (32 to 95 F)
-25to65 C ( -13to149 F)
-25to65 C (-13to
149 F)
10 to 90 %
5to95%
5to95%
TCO 03/TCO 99
Specification
Dimensions : 22" NF
PhosphorPitch(mm):0.24(atcenter)
Mask : AG
Deflection angle : 90 deg
Phosphor : B22
Horizontal scan : 30 - 130 KHz
Vertical scan : 50 - 160 Hz
Input signals
Video :0.7Vp-pLinear/75ohms
Sync :H/H+V,VTTLlevel, compositesync
Impedance
Video : Terminated with 75 ohms
Sync : Terminated with 2K2 ohms
7\ SH 1 5 0 / 9 7 ; $ 0 LWV XELVKL1 ) 8
/LJKWWUDQVP LVVLRQ
6XUIDFH RI SODWH 6 SXWWHUFRDWLQJ
$QDORJ 6 2 * 6 \ Q F 2 Q * UHHQ I RU
models with SOG function.
Power supply
Mainvoltage :AC90-264Vrms,47-63Hz
Power consumption : 125 Watts (typical)
Powercordlength :1.8M
Powercordtype :3leadwithearthplug,detachable
Powerindicator :LED(2colorsgreen,amber).
Auto power saving : Fulfill TCO99 , EPA and E2000
Requirements
Mode H, V Video power consumption LED colors
ON 1 1 1 Typical 115Wl Green
OFF 0 1 X <1Watts Amber
OFF 1 0 X <1Watts Amber
OFF 0 0 X < 1Watts Amber
X:Videoblanked.
Display
Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel
Clock
(MHz)
Sync Polarity
(Horizontal /
Vertical)
VESA,
640 x 480
31.5 59.9 25.2 -/-
VESA,
640 x 480
43.3 85.0 36.0 -/-
VESA,
800 x 600
53.7 85.1 56.3 +/+
VESA,
1024 x
768
60.0 75.0 78.8 +/+
VESA,
1024 x
768
68.7 85.0 94.5 +/+
VESA,
1280 x
1024
80.0 75.0 135 +/+
VESA,
1280 x
1024
91.1 85.0 157.5 +/+
VESA,
1600 x
1200
93.8 75.0 202.5 +/+
VESA,
1600 x
1200
106.3 85.0 229.5 +/+
