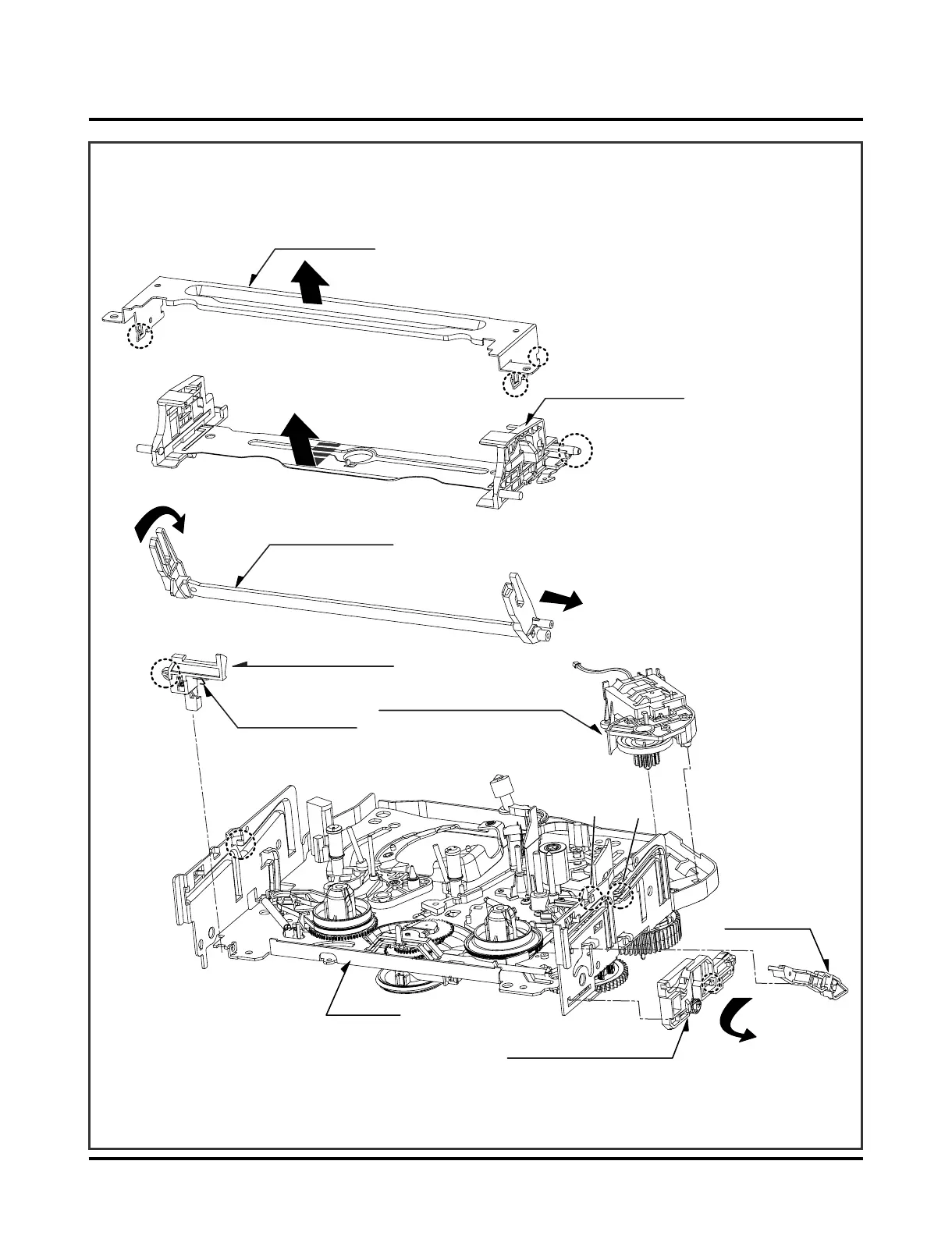

DECK MECHANISM DISASSEMBLY
4-3
(B)
(E)
(C1)
(C)
Plate Top
Arm Assembly F/L
Spring Lever S/W
Gear Assembly Rack F/L
Chassis
Opener Door
Bracket Assembly L/D Motor
Holder Assembly CST
(B')
(C')
(D)
(E')
(H6)
(A)
(B)
Lever Assembly S/W
(H8)
Fig. A-2
(Fig. A-2-1)
(Fig. A-2-2)
(Fig. A-2-6)
(Fig. A-2-7)
(Fig. A-2-5)
(Fig. A-2-3)
(Fig. A-2-4)
