3-72

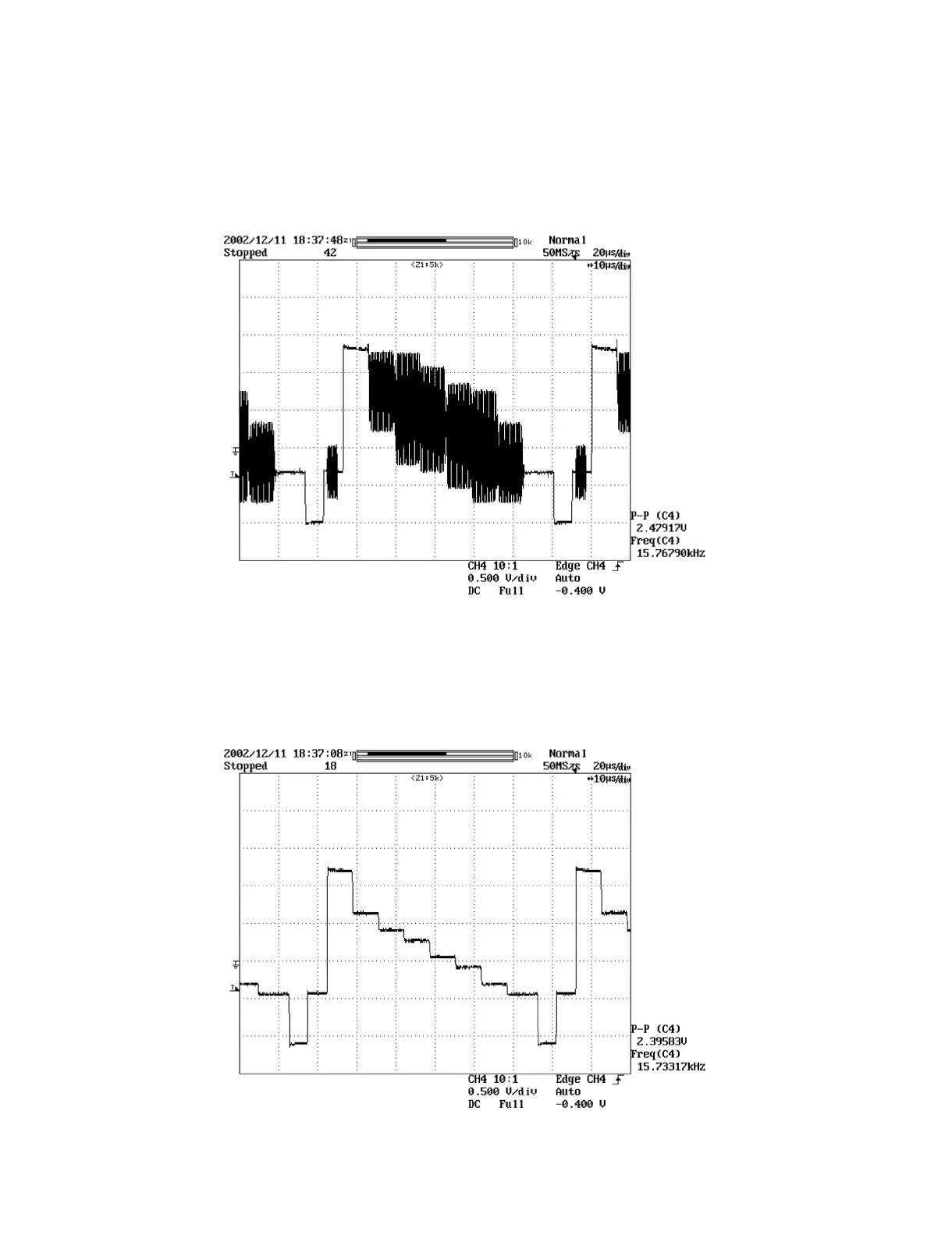

13. MT1379 VIDEO OUTPUT WAVEFORM
1) Full colorbar signal(CVBS)
(IC604 PIN 23)
FIG 13-1
2) Y
(IC604 PIN 21)
FIG 13-2
