3-68

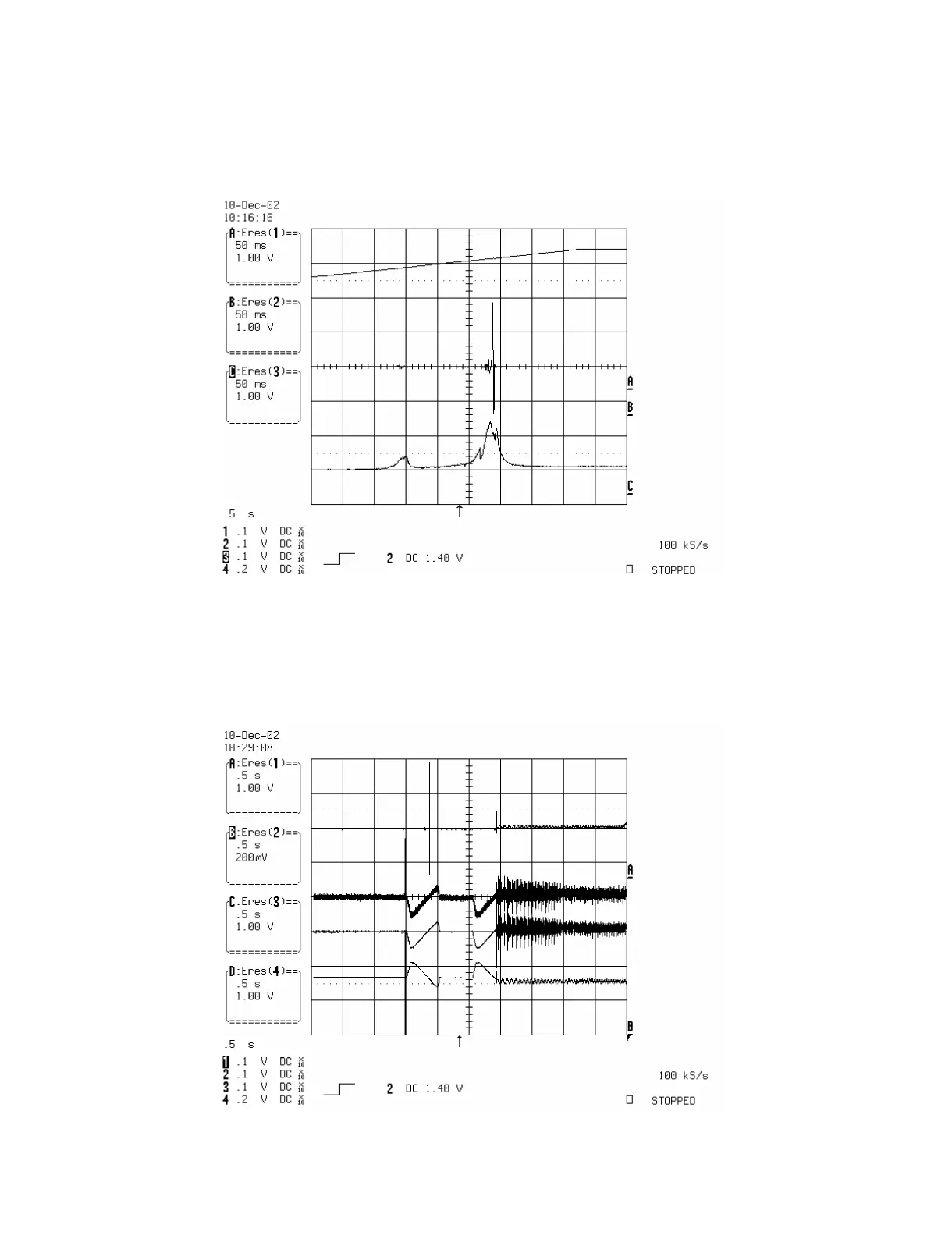

F+(IC202 PIN 9)
FE(IC201 PIN 18)
RFL(IC201 PIN 19)
FIG 7-4 (CD)
8. FOCUS ON WAVEFORM
FE(IC201 PIN 18)
FOSO(IC501 PIN12)
F+(IC202 PIN 9)
F-(IC202 PIN 8)
FIG 8-1 (DVD)
