3-71

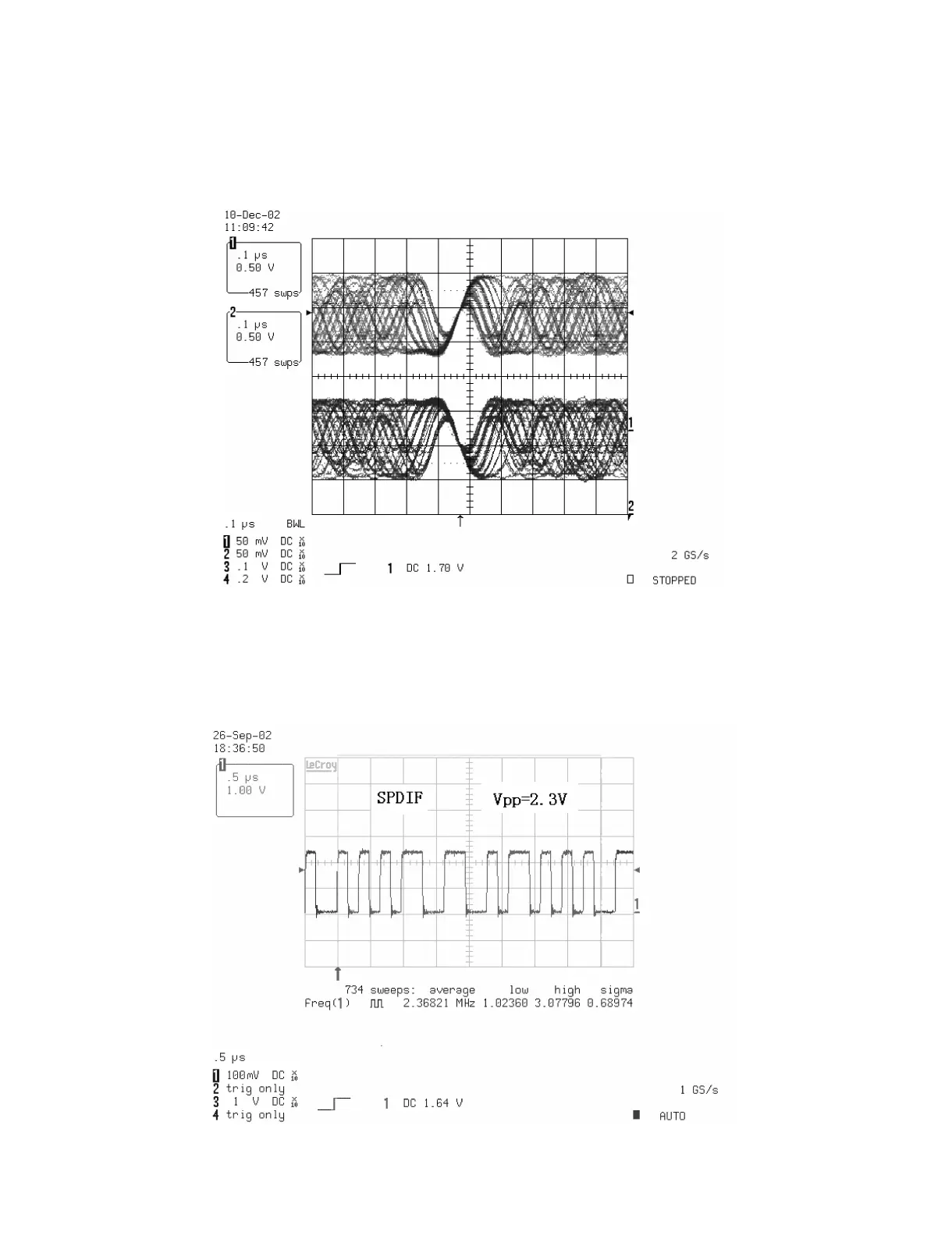

11. RF WAVEFORM
RFOP(2.3V/1.1V)
(IC201 PIN 6)
RFON(0.8V/2.0V)
(IC201 PIN 7)
FIG 11-1
12. MT1379 AUDIO OPTICAL AND COAXIAL OUTPUT (ASPDIF)
(IC501 PIN 153)
FIG 12-1
