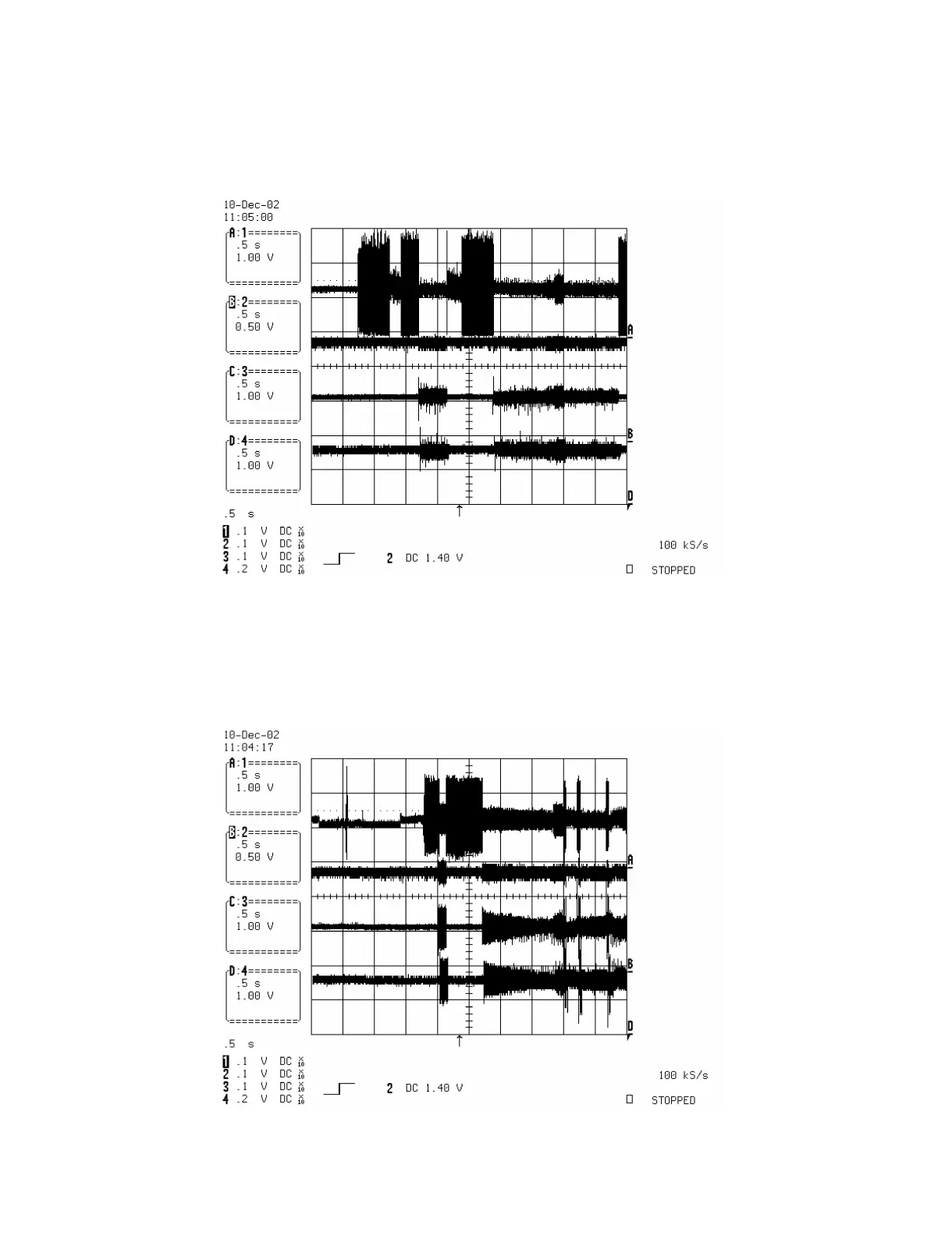

10. TRACKING CONTROL RELATED SIGNAL(System checking)
TE(IC201 PIN 21)
TRSO(IC501 PIN 13)
T-(IC202 PIN 7)
T+(IC202 PIN 6)
FIG 10-1(DVD)
TE(IC201 PIN 21)
TRSO(IC501 PIN 13)
T-(IC202 PIN 7)
T+(IC202 PIN 6)
FIG 10-2(CD)
