3-64

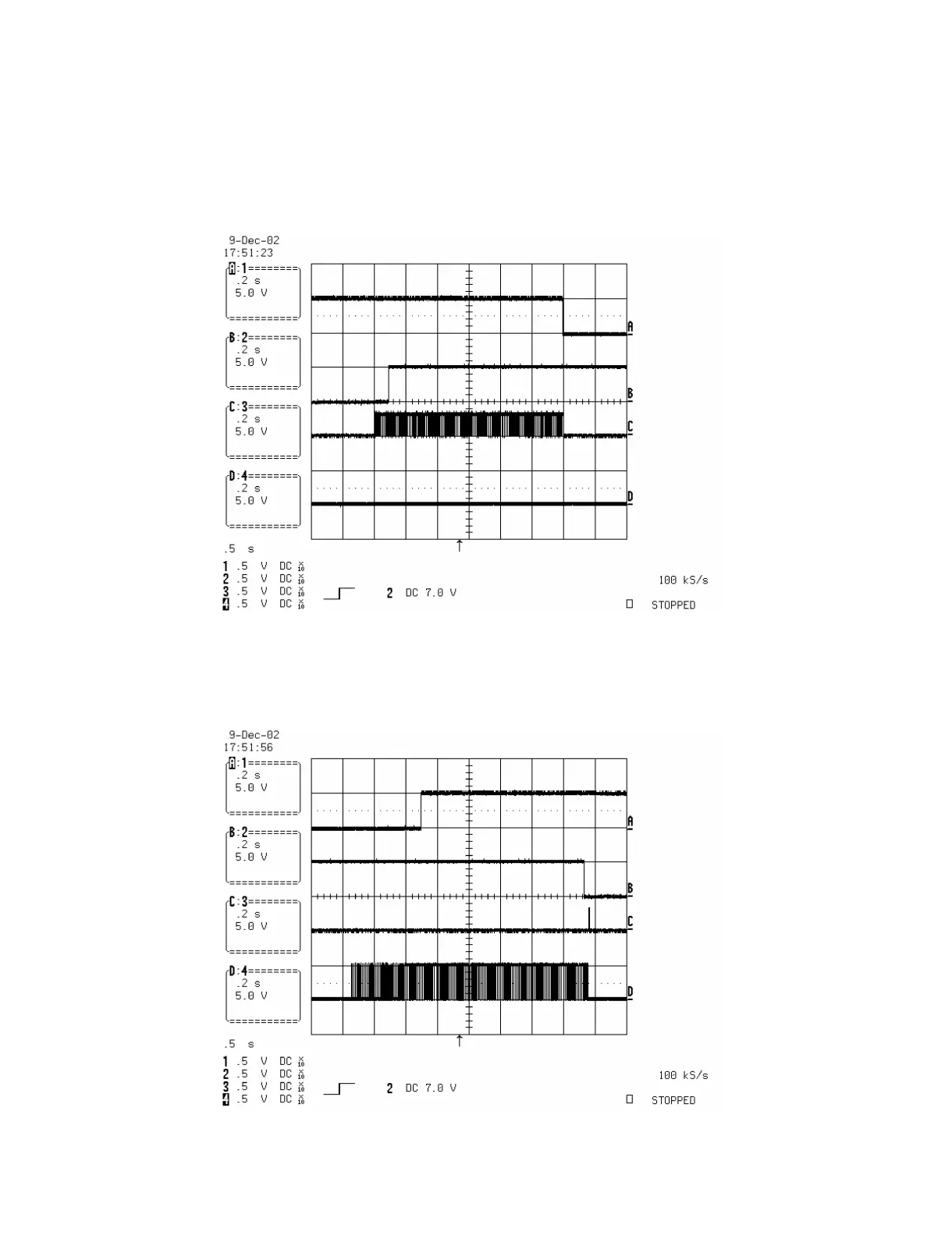

2) Tray close waveform
OPEN((CN203 PIN 3)
CLOSE(CN203 PIN 2)
TROPEN(IC202 PIN 1)
TRCLOSE(IC202 PIN 2)
FIG 3-2
3) Tray open waveform
OPEN((CN203 PIN 3)
CLOSE(CN203 PIN 2)
TROPEN(IC202 PIN 1)
TRCLOSE(IC202 PIN 2)
FIG 3-3
