5-3
DECK MECHANISM DISASSEMBLY
3.Base Assembly Sled (Fig. 5-3)
1) Release 4 Screw(S2).
2) Disconnect the FFC Connector(C1)
3-1. Gear Feed
3-2. Gear Middle
3-3. Gear Rack
1) Release the Scerw(S3)
4. Rubber Rear (Fig. 5-3)
BASE PU
RUBBER DAMPER
RUBBER DAMPER
SCREW INSERTION TORGUE CONTROL
(800gf DOWN)
RUBBER DAMPER
Distinguish upper and
lower sides
(Assemble with care)
Distinguish upper and
lower sides
(Assemble with care)
MIDDLE GEAR
RUBBER DAMPER
GEAR RACK
PINION GEAR
GEAR RACK
GENERAL PICK UP ASSEMBLY
SPINDLE MOTOR ASSEMBLY
(S2)
(S2)
(S3)

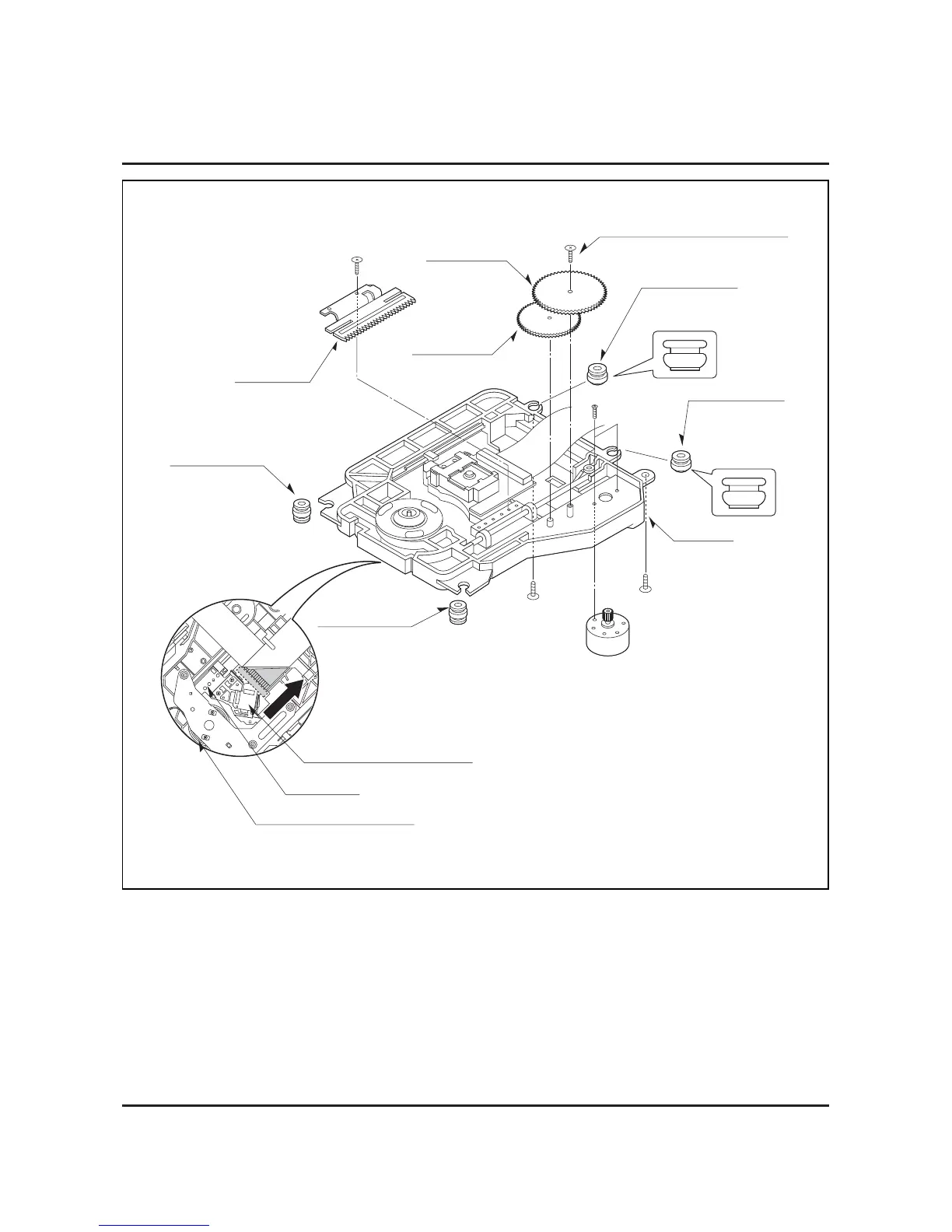

Fig. 5-3
