Pre-installation instructions
Step 1 | Check the door opening direction

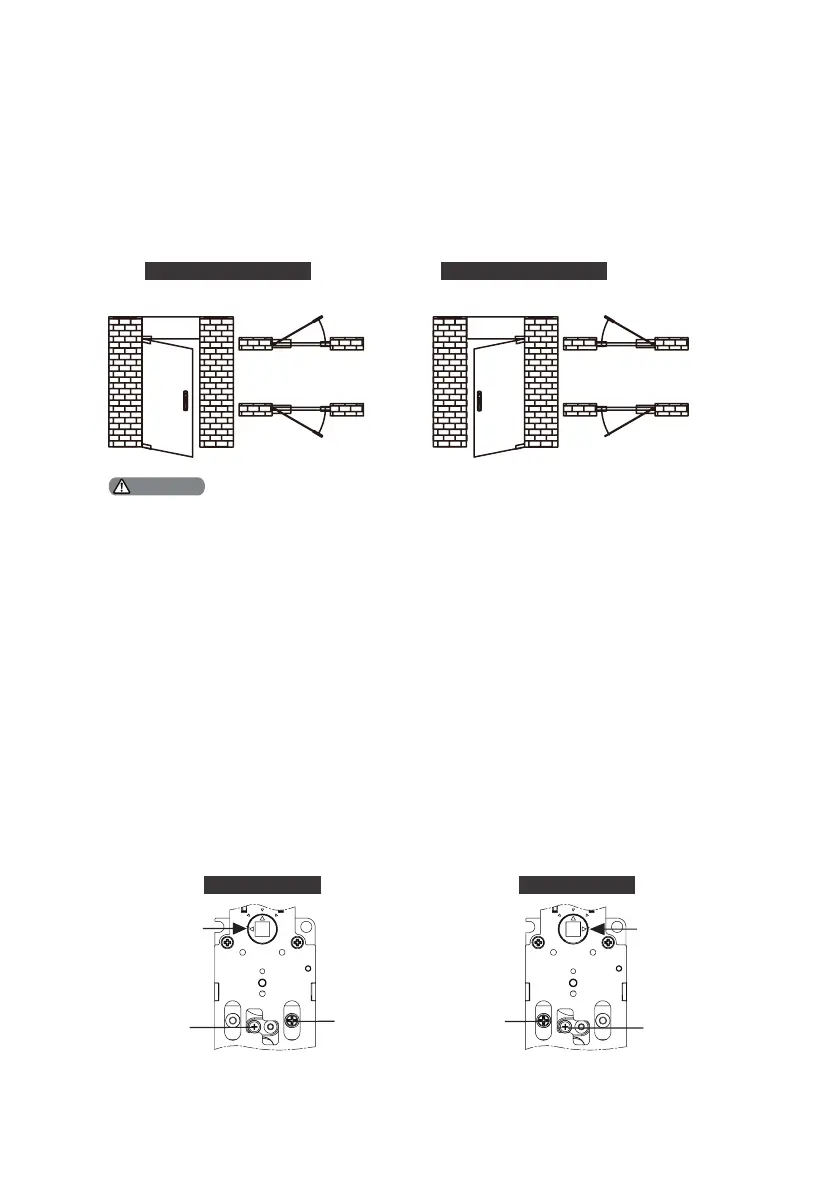

This product can be installed on doors of 4 types of opening directions:
left-out pull, right-in push, right-out pull and left-in push.
Left-in
push
Right-
in push
Indoor Indoor
Indoor Indoor
Outdoor
Outdoor
Outdoor Outdoor
Left-
out pull
Right-
out pull
Left-handle open Right-handle open
1. Please choose proper installation kit as per the door thickness.
2. The default installation kit is applicable for a door thickness of 38-60mm, if your door thickness
does not within this range, please feel free to contact us.
Attention
Step 2 | How to switch between push and pull
Please x the screws in proper locations according to the door opening
direction.
Right-in push
Direction of
square shaft
driving block
Direction of
square shaft
driving block
Inside escutcheon Inside escutcheon
Screw Screw
Screw
Screw
Left-in push
Right pull
Left push
Right pull
Left push
Right push
Left pull
Right push
Left pull
