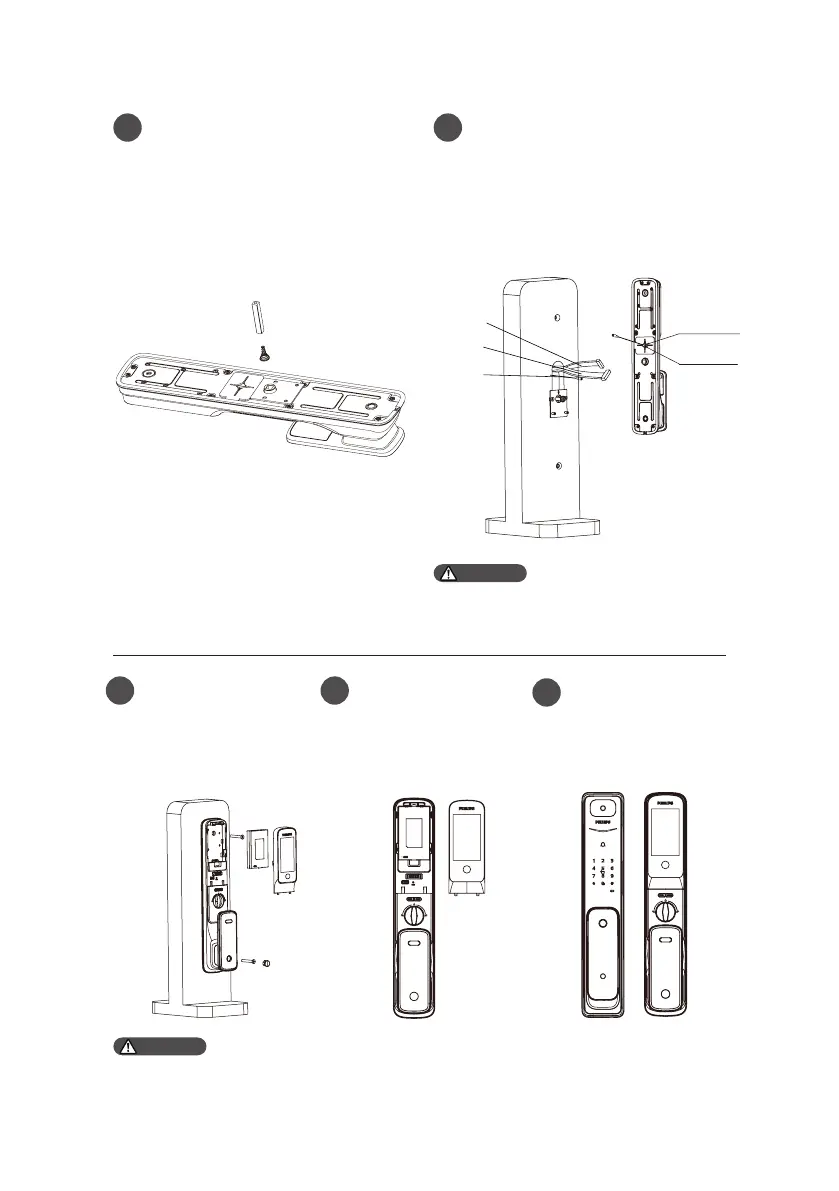

Remove the front cover
and the battery cover.
Insert and tighten M6
anchor screws to secure
the rear escutcheon as
indicated in illustration.
Put the deco cover
back, install the lithium
battery, and install the
battery cover along
with the strike.
Check whether the
rotary knob, mechanical
key, and all other
components work
properly.
Put the compressed spring and
square shaft into the hole of the rear
escutcheon accordingly.
5 6
Connect the connector of escutcheon
and mortise as well as the wi-
antennas to the connector port of rear
escutcheon. Then insert the square
shaft into the hole on the mortise,
making sure the rear escutcheon is
ush against the door.
Please hide the extra connector in the door
hole or the inside escutcheon.
Attention
Once installed the strike, please test the locking and unlocking function.
Attention
7 8
9
Mortise
connector
Mortise
connector port
Escutcheon
connector port
Front
escutcheon
connector
Wi-Fi
antennas
