6
Instructions
The following installation steps only apply to right-handed door. For left-handed
door, please read [Before installation] carefully and make necessary adjustments.

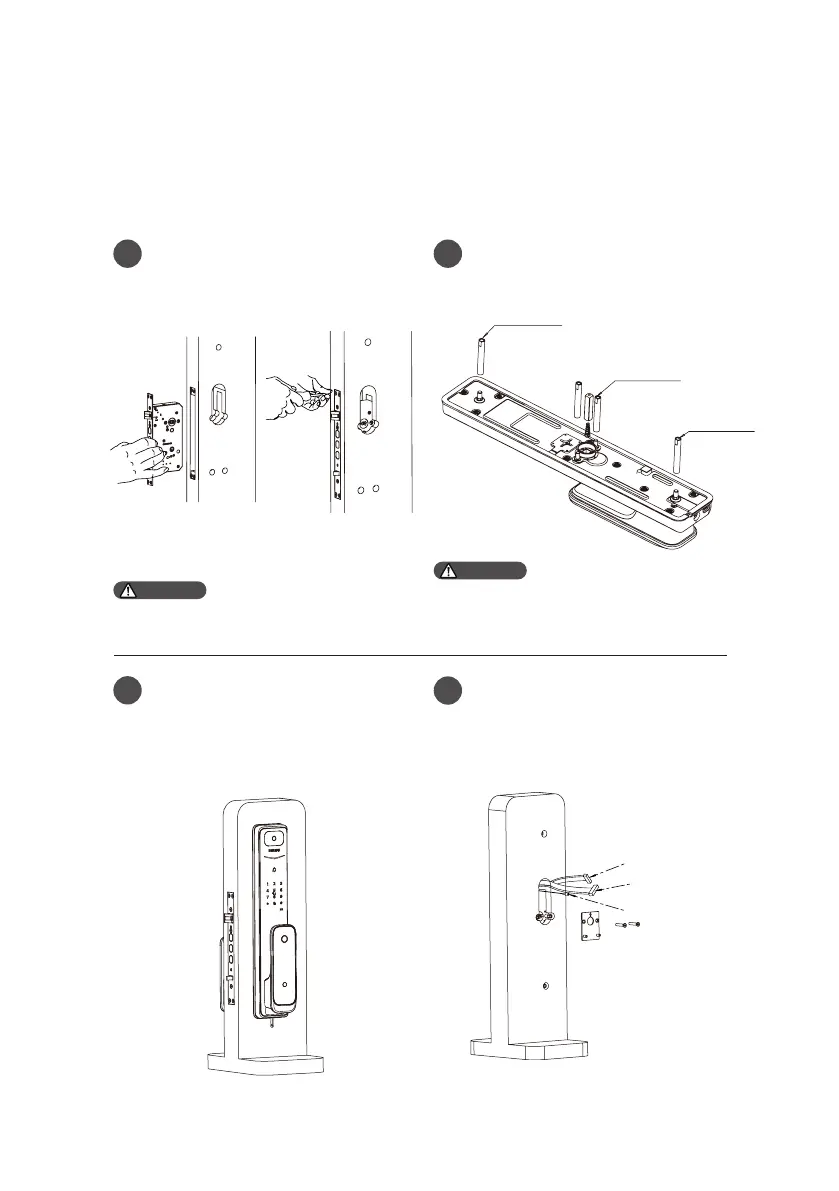

Mark the hole for drilling with drilling
template and drill the marked hole,
then mount the mortise into the hole
and fasten it with four anchor screws.
1 2
Install threaded pipes on the front
escutcheon and put the compressed
spring and square shaft accordingly
into the corresponding holes.
Pull the connector through the hole
and insert the square shaft into the
hole on the mortise, making sure the
front escutcheon is ush against the
door.
3
Place the mounting plate on the door
and fasten it with two M5 anchor
screws.
4
Make sure the latch bolt stays inside the
door during installation.
Attention
Please choose the proper square shaft and
threaded pipe to suit your door thickness.
Attention
M5 threaded pipe
M6 threaded
pipe
M6 threaded
pipe
Mortise connector
Escutcheon connector
Wi-Fi antennas
