Philips EasyKey DDL702 - Get to Know Your EasyKey; Outside Escutcheon Overview; Inside Escutcheon Overview

8
The pictures are for reference only, please refer to the actual packaging
items.
Inside escutcheon
Outside escutcheon

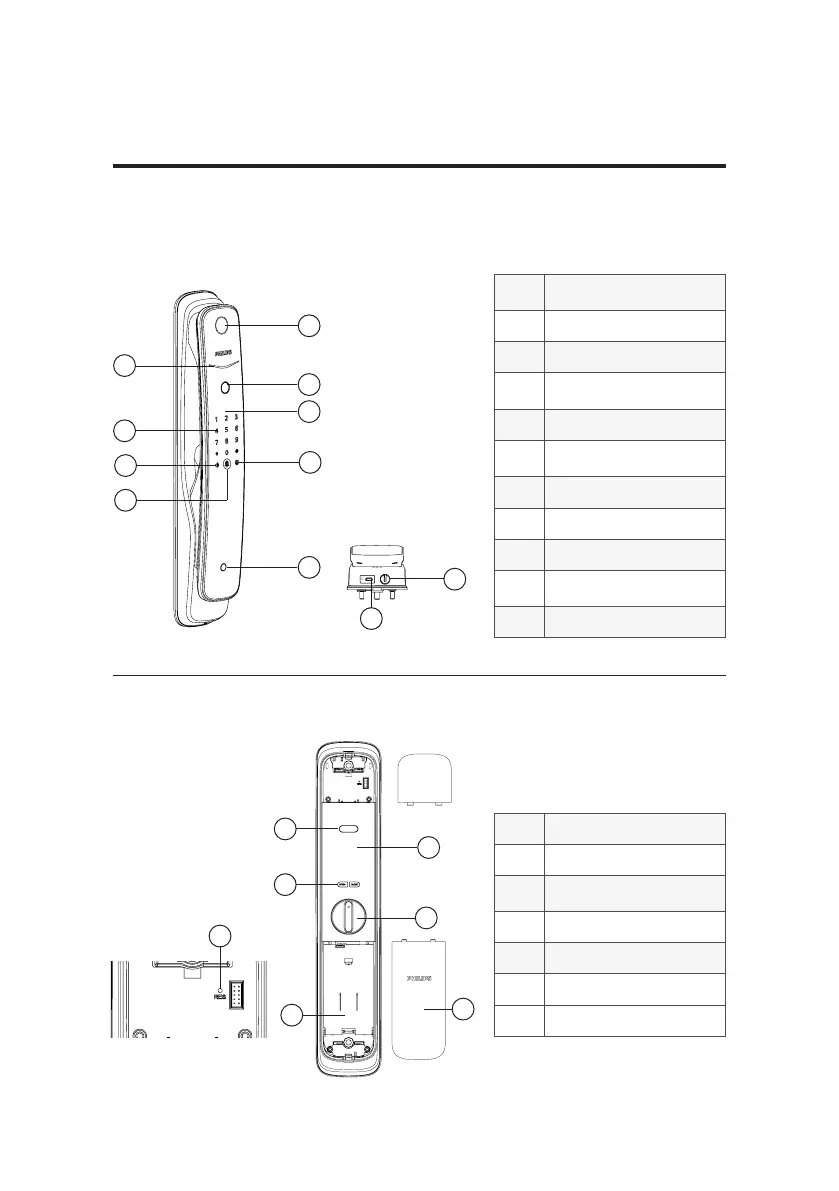

3. Get to know your EasyKey
①
Door lock status
indicator
②
Keypad
③
Mute button
④
Doorbell button/Low
battery voltage indicator
⑤
Push-pull handle
⑥
Outside forced lock
button
⑦
Camera
⑧
PIR sensor
⑨
Fingerprint sensor
⑩
Reboot and emergency
power supply interface
⑪
Mechanical key hole
①
Battery cover
②
Battery compartment
③
Restore to a default
setting
④
Push-pull handle
⑤
[OPEN/CLOSE] button
⑥
Rotary knob
⑦
Infrared sensor
3
4
7
5
6
8
9
11
1
2
10
6
2
5
7
4
1
3
