Connect

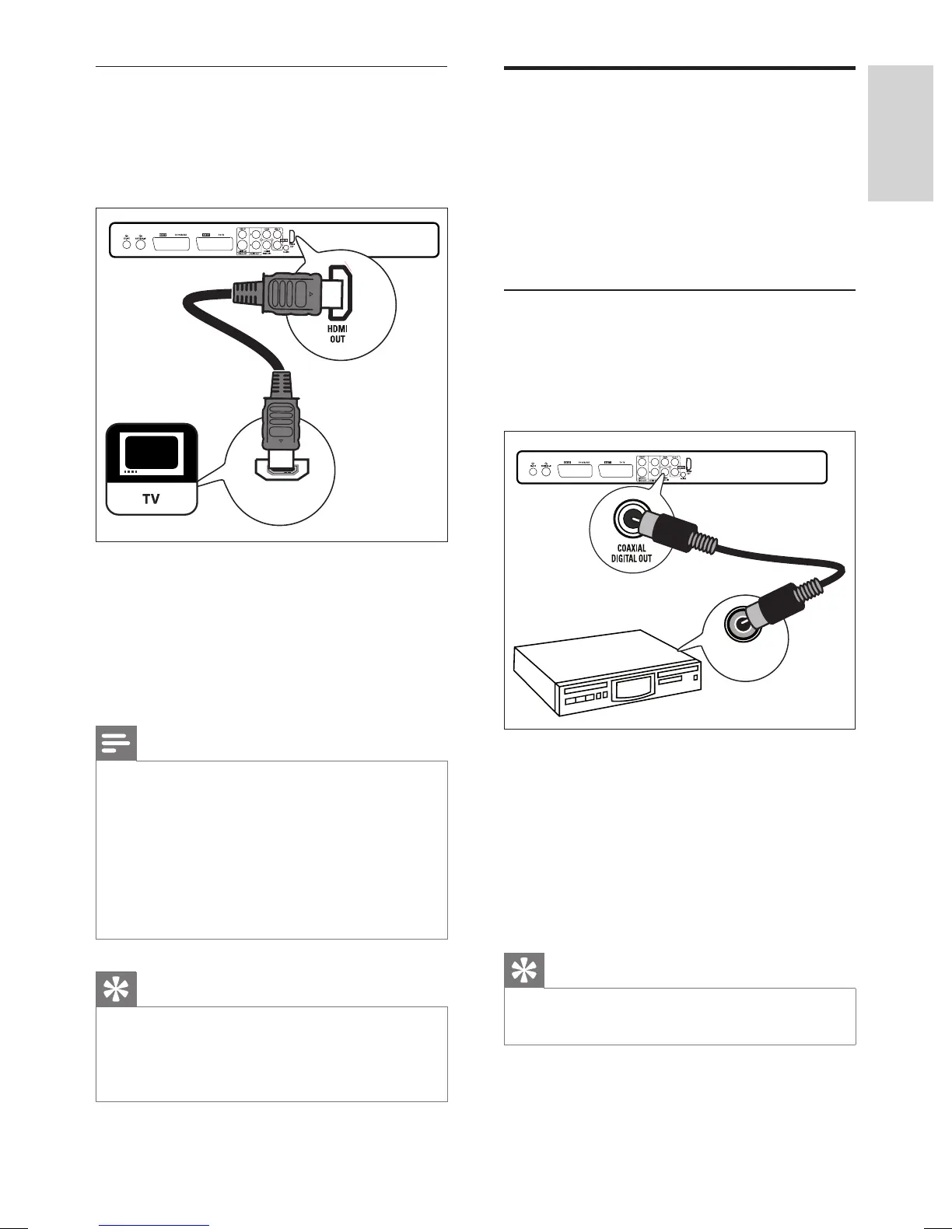

Option 4: Connect to HDMI socket
HDMI (High Defi nition Multimedia Interface) is
a digital interface that supports both audio and
video transmission through a single cable.
HDMI IN
1 Connect a HDMI cable (not supplied)
from the HDMI OUT to the HDMI IN
socket on your TV.
To adjust HDMI settings (see chapter
‘Adjust settings – Adjust HDMI video
and audio’).
Notes
Depending on your TV capabilities, audio may not
be supported through the HDMI connection. In
this case, make an audio connection to your TV and
turn off the HDMI audio output (See chapter ‘ Setup
HDMI video and audio’).
HDMI supports HDCP (High-bandwidth Digital
Contents Protection). HDCP is a copy protection
signal that comes with the HD content (DVD disc or
Blu-ray disc).
•
•
Tips
Use a HDMI/DVI adaptor in case your TV has only
a DVI connection. An extra audio connection is
needed to complete this connection.
This connection provides the best picture quality.
•
•
•
Connect other devices
To connect this recorder to other devices, you
can use these suggested connections for
common used cases. Other solutions may be
possible, it depends on the capabilities of the
devices.
Connect to AV amplifi er/receiver
You can enjoy multi-channel surround sound
from this recorder when it is connected to a
digital audio device.
DIGITAL IN
1 Connect a coaxial cable (not supplied)
from the COAXIAL DIGITAL OUT
socket to the digital input socket on the
amplifi er/receiver.
Select the digital audio output setting
according to the type of audio that the
device can output (See chapter ‘Audio
settings’).
Tip
The digital coaxial input socket on the device may be
labelled as COAXIAL IN or DIGITAL IN.
•
•
