Philips LX8500W Service Manual

This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3139 113 3553 pt5 dd wk0428
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3139 113 3553 pt5 dd wk0428
6-6 6-6

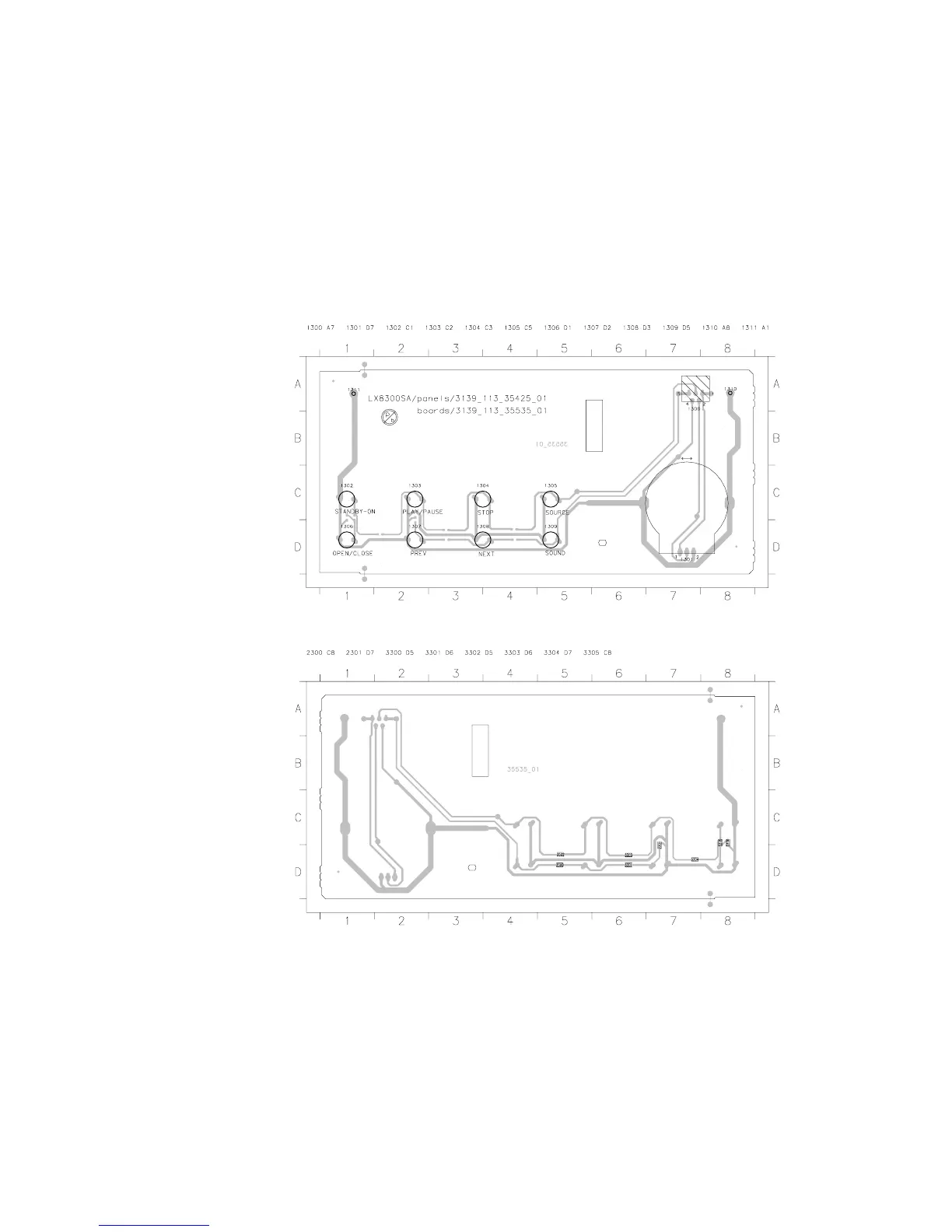

FRONT KEY BOARD - COMPONENT LAYOUT
FRONT KEY BOARD - CHIP LAYOUT

Philips LX8500W Specifications

Sound Specifications

D/A converter	24 bit, 96 kHz
frequency response	30-48000 Hz
signal to noise ratio	>95 dB
output power (RMS)	3 x 100W, 2 x 75W + 150W
total sound power (RMS)	600 W
satellite speaker frequency range	120-50000 Hz
satellite speaker impedance	6 ohm
center frequency range	120-30000 Hz
center speaker impedance	6 ohm
subwoofer frequency range	30-120 Hz
subwoofer impedance	4 ohm

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 1W

Weight and Dimensions

center speaker dimensions	435 x 76 x 70 mm
center speaker weight	1.4 kg
packaging dimensions	1000 x 516 x 495 mm
set dimensions	360 x 40 x 305 mm
set weight	2.5 kg
stand dimensions	95 x 540 x 95 mm
subwoofer dimensions	300 x 400 x 300 mm
subwoofer weight	12 kg
surround speaker dimensions	100 x 550 x 107 mm
surround speaker weight	10.3 kg
weight including packaging	43 kg
