DISMANTLING INSTRUCTIONS
Dismantling of the DVD Loader

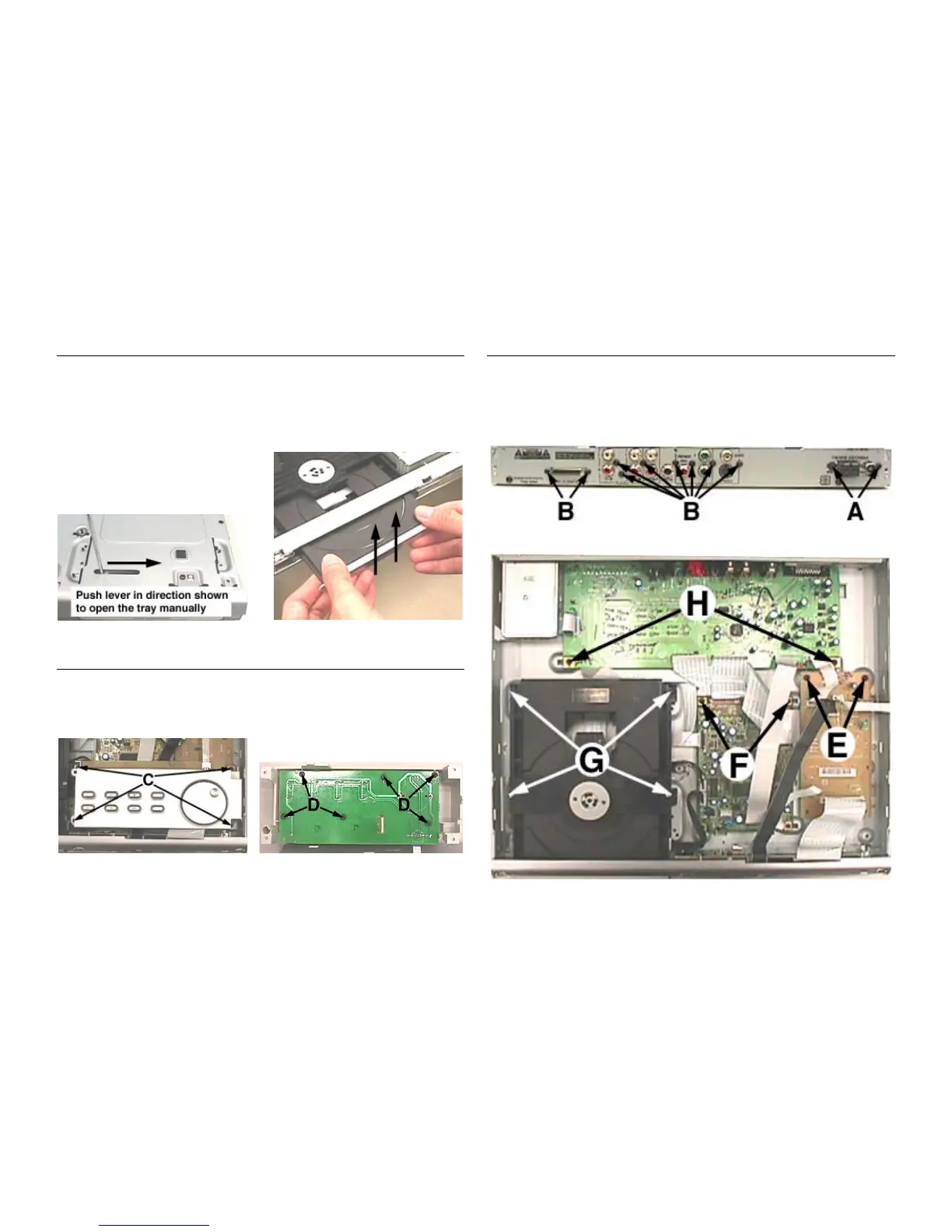

1) The tray can be manually open by inserting a minus
screw driver and push the lever in the direction as shown
in Figure 1 to unlock the tray before sliding it out.
2) Slide out the tray and remove the Cover Tray (pos 110)
as shown in Figure 2.
3) Loosen 2 screws each to remove the Panel Cover Left
(pos 231) and Panel Cover Right (pos 232).
1) Loosen 4 screws C (see Figure 3) to remove the Bracket
Support Control (pos 130) and the Front Key Board (pos
1401).
Dismantling of the Front Key Board
Figure 3
Figure 6
Figure 4
Figure 2Figure 1
2) Loosen 6 screws D (see Figure 4) to remove the Front
Key Board (pos 1401) from the Bracket Support Control
(pos 130).
1) Loosen 2 screws A (see Figure 5) to remove the Tuner
Module (pos 1801).
2) Loosen 9 screws B (see Figure 5) and 2 scews H (see
Figure 6) to remove the AV Board (pos 1501).
Dismantling of the Tuner Module, AV Board, Front Board and SD6.3 ST AV2 Board
3) Loosen 2 screws E (see Figure 6) to remove the Front
Board (pos 1201).
4) Loosen 2 screws F (see Figure 6) to remove the SD6.3
ST AV2 Board (1601).
Figure 5
4) Loosen 3 screws to remove the Front Top (pos 240).
- 1 screw each on the left & right side (pos 272)
- 1 screw at the bottom (pos 268)
5) Loosen 4 screws G (see Figure 6) to remove the DVD
Loader (pos 1602).
