Philips LX8500W Service Manual

3-1
Various
other Tests
Activated with
ACTION
TEST
S
S to Exit
EEPROM FORMAT
TEST
Load default data. Display shows "NEW".
Caution!
All presets from the customer will be lost!!
Disconnect
mains cord
LEAVE SERVICE
TEST PROGRAM
Volume
Knob
ROTARY
ENCODER TEST
Display shows value for 2 seconds.
Volume values increases or decreases in steps of 1
until 0 (VOL MIN) or 40 (VOL MAX) is reached.
Y
N
Y
N
N
BII
Button pressed?
BII
Button pressed?
DISPLAY
TEST
Display shows Figure 1
and switch "SACD" LED on
Display shows Figure 2
and switch "SACD" LED off
Y
9
Button pressed?
Figure 1
Figure 2
To start service test program
hold BII and
buttons depressed while
plugging in the mains cord
Display shows
"SERVICE"
followed by ROM version
"S-Vxx-yy"
S refers to Service Mode
V refers to Version
xx refers to Software version number of BEA
(counting up from 01 to 99)
yy refers to Software version number of Front uP
(counting up from 01 to 99)

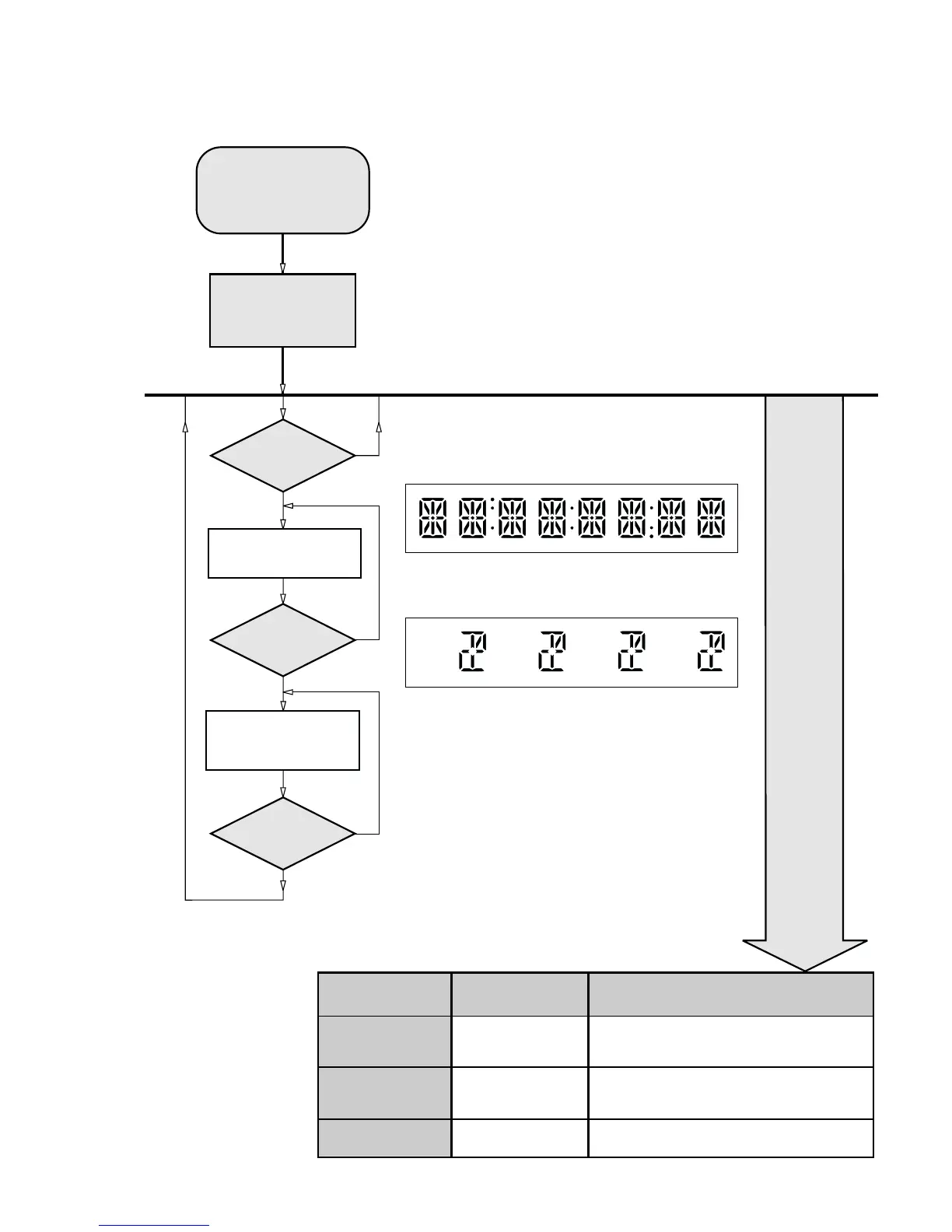

SERVICE TEST PROGRAM
LX8300SA & LX8320SA & LX8500W_Service Test Program_dd wk0429
MAIN MENU
Hold BII and buttons depressed till the Display shown "S-Vxx-yy"
S
S

Philips LX8500W Specifications

Sound Specifications

D/A converter	24 bit, 96 kHz
frequency response	30-48000 Hz
signal to noise ratio	>95 dB
output power (RMS)	3 x 100W, 2 x 75W + 150W
total sound power (RMS)	600 W
satellite speaker frequency range	120-50000 Hz
satellite speaker impedance	6 ohm
center frequency range	120-30000 Hz
center speaker impedance	6 ohm
subwoofer frequency range	30-120 Hz
subwoofer impedance	4 ohm

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 1W

Weight and Dimensions

center speaker dimensions	435 x 76 x 70 mm
center speaker weight	1.4 kg
packaging dimensions	1000 x 516 x 495 mm
set dimensions	360 x 40 x 305 mm
set weight	2.5 kg
stand dimensions	95 x 540 x 95 mm
subwoofer dimensions	300 x 400 x 300 mm
subwoofer weight	12 kg
surround speaker dimensions	100 x 550 x 107 mm
surround speaker weight	10.3 kg
weight including packaging	43 kg
