Philips LX8500W Service Manual

Exploded View PWR308_3139 117 10791_dd wk0419
8-3
8-3

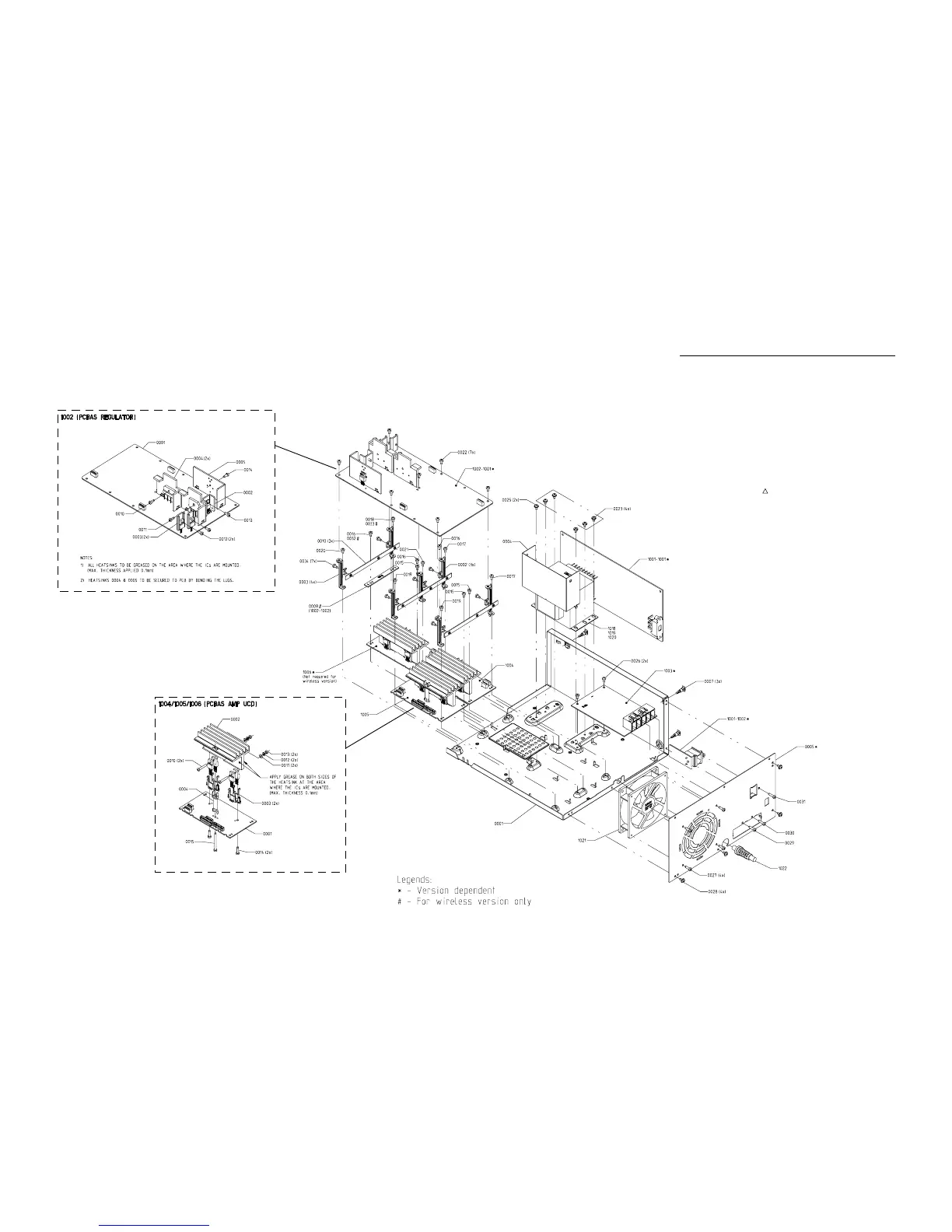

EXPLODED VIEW - MODULE PWR308
0007 3139 240 40061 SPACER - 8MM
1001 3139 118 57951 PCBAS MAINS & MAINS SOCKET
1002 3139 118 57921 PCBAS REGULATOR
1003 3139 118 57931 PCBAS SPEAKER
1004 3139 118 57981 PCBAS AMPLIFIER UCD
1005 3139 118 57981 PCBAS AMPLIFIER UCD
1006 3139 118 57981 PCBAS AMPLIFIER UCD
1008 3139 110 34950 FFC FOIL 07P/120/07P AD
1009 3139 110 34950 FFC FOIL 07P/120/07P AD
1010 3139 110 34950 FFC FOIL 07P/120/07P AD
1020 3139 118 33021
!
TRANSFORMER MAINS
1021 3139 258 70061 FAN KD1209PTS3
1022 3139 111 04281 36P CABLE ASSY
Note : Only the parts mentioned in this list are normal service
spare parts.
PARTS LIST - MODULE PWR308

Philips LX8500W Specifications

Sound Specifications

D/A converter	24 bit, 96 kHz
frequency response	30-48000 Hz
signal to noise ratio	>95 dB
output power (RMS)	3 x 100W, 2 x 75W + 150W
total sound power (RMS)	600 W
satellite speaker frequency range	120-50000 Hz
satellite speaker impedance	6 ohm
center frequency range	120-30000 Hz
center speaker impedance	6 ohm
subwoofer frequency range	30-120 Hz
subwoofer impedance	4 ohm

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 1W

Weight and Dimensions

center speaker dimensions	435 x 76 x 70 mm
center speaker weight	1.4 kg
packaging dimensions	1000 x 516 x 495 mm
set dimensions	360 x 40 x 305 mm
set weight	2.5 kg
stand dimensions	95 x 540 x 95 mm
subwoofer dimensions	300 x 400 x 300 mm
subwoofer weight	12 kg
surround speaker dimensions	100 x 550 x 107 mm
surround speaker weight	10.3 kg
weight including packaging	43 kg
