Installing the Universal Bed Hanger (M3080A #A11)
Installin
the Instrument
99
Installing the Universal Bed Hanger (M3080A #A11)
The hanging mount is used for hanging the Monitor on the bed footboard/headboard or a rail.
It is delivered ready-to-use and does not require installing.

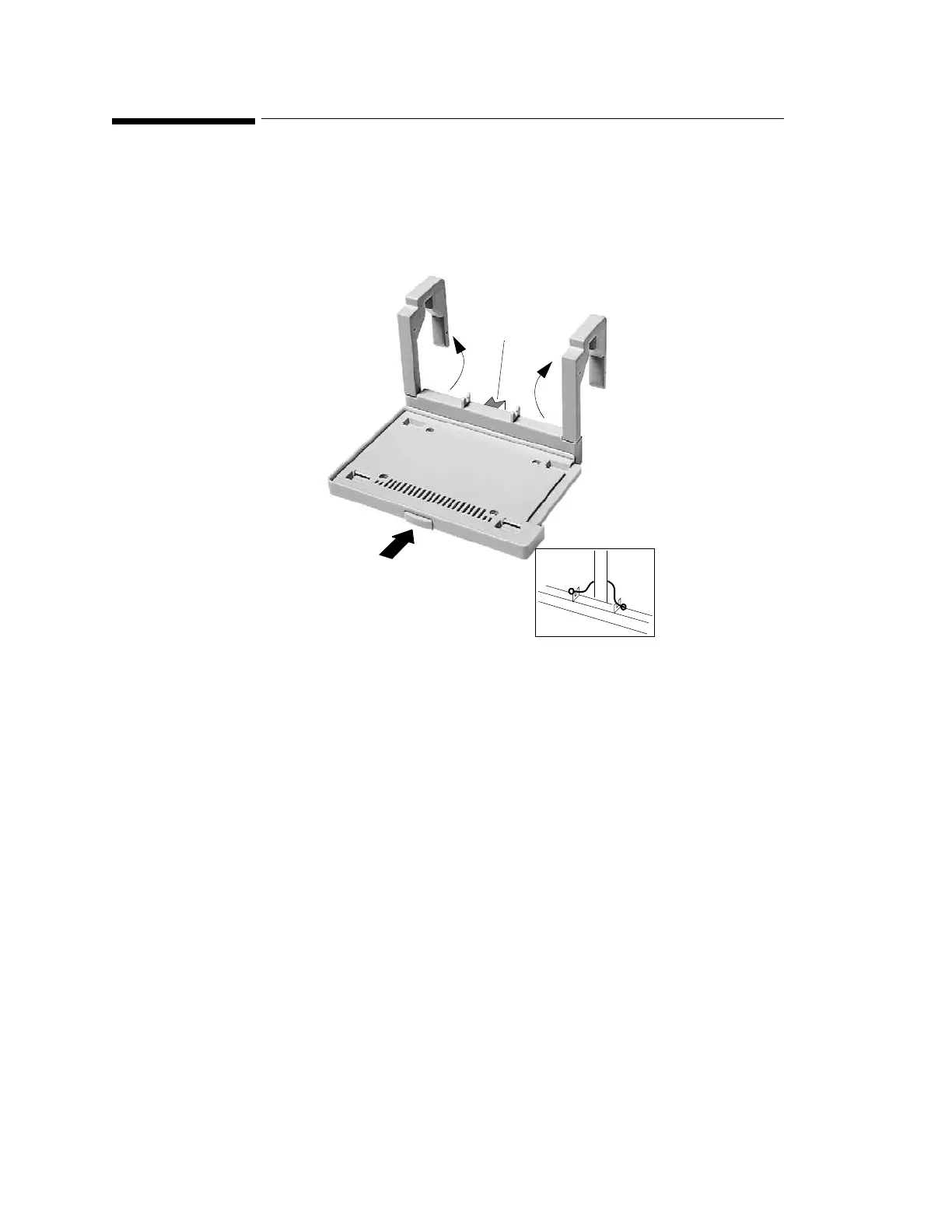

Step 1 Unpack the Bed Hanger and check all parts are available.
Step 2 Rotate the arms to their open position.
Step 3 Hang the hanger on the rail (or as appropriate).
Step 4 If necessary, adjust the bed hanger to a vertical position by pulling out the slider at
the rear of the hanger.
Step 5 If necessary, fix the bed hanger by hooking the rubber strap around a vertical bar (as
shown in the insert).
The Monitor snap-fits onto the plate. To release the Monitor, press the button on the front of
the plate.
Slider
