Philips MX1060D - Components Layout

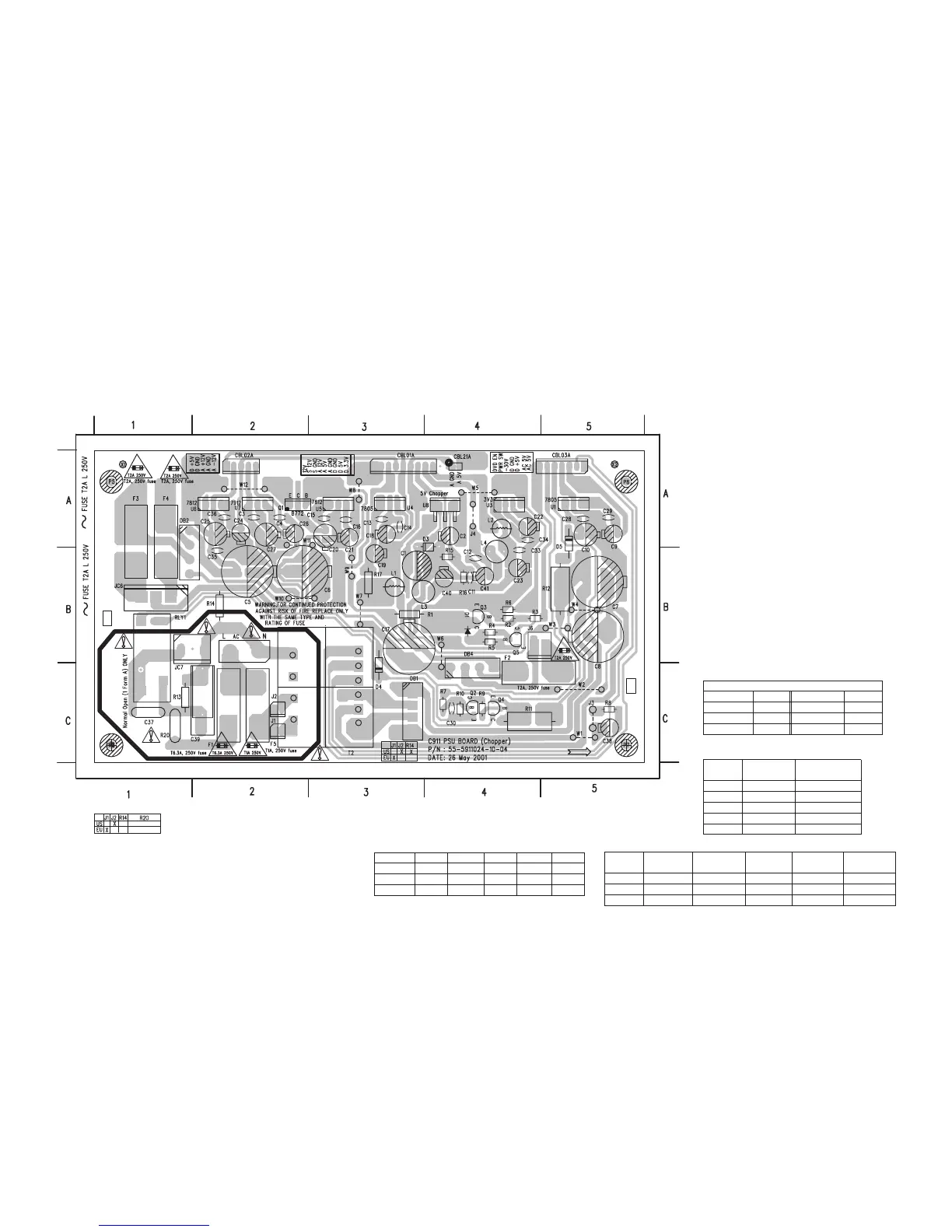

COMPONENTS LAYOUT
5-25-2
AC B2
C1 B3
C10 A5
C11 B4
C12 B4
C13 A3
C14 A3
C15 A3
C16 A3
C17 B3
C18 A3
C19 B3
C2 A4
C20 A3
C21 A3
C22 A4
Measurement in DVD playing Mode (5,1 Channel Disc)
Pin No. Q1 Q2 Q3 Q4 Q5
B 16,2V 0,7V 0,7V 7,9V 8,66V
C 16,8V 64mV 74mV 8,7V 8,8V
E 16,8V 2mV 0V 8.7V 9,22V
AC voltages across transformer winding:
Pin No. T1 Pin No. T2
5 - 7 8,9V 4 - 6
8 - 10 27V 7 - 9
11 - 13 54V
Pin No. U1 U4 U5 U6 U7
NJM7805FA NJM7805FA NJM7812 NJM7812 NJM7912
IN 6,9V 9,02V 18V 17,7V -19V
GND 0V 0V 0V 0V 0V
OUT 5V 5V 12,23V 12V -12,3V
Pin No. U3 U8
PQ3RD13 PQ12CG3032F
1 5,71V 9,4V
2 3,31V 6,1V
30V0V
4 9,18V 12,6V
5 9,10V
C23 B4
C24 A2
C25 A2
C26 A2
C27 A2
C28 A5
C29 A5
C3 A2
C30 C4
C33 B4
C34 B4
C35 B2
C36 A2
C37 C1
C38 C5
C39 C2
C4 A2
C40 B4
C41 B4
C5 B2
C6 B2
C7 B5
C8 B5
C9 A5
CBL1 A3
CBL2 A2
CBL21A4
CBL3 A5
CON4 POWER AMP BD
D1 B4
D3 A4
D4 C3
D5 A5
DB1 C3
DB2 A1
DB4 C4
F1 C2
F2 C4
F3 A1
F4 A1
F5 B2
J1 C2
J2 C2
J3 C5 wire line
J4 A4 wire line
JC6 B1
JC7 B1
L1 B3
L2 A4
L3 B3
L4 B4
Q1 A2
Q2 C4
Q3 B4
Q4 C4
Q5 B4
R1 B3
R10 C4
R11 C4
R12 B5
R13 C1
R14 B2
R15 B4
R16 B4
R17 B3
R2 B4
R20 C1
R3 B4
R4 B4
R5 B4
R6 B4
R7 C4
R8 C5
R9 C4
RLY1 B1
T1 ___
T2 C3
U1 A5
U3 A4
U4 A3
U5 A3
U6 A2
U7 A2
U8 A4
W1 C5
W10 B2
W11 A2
W12 A2
W2 C5
W3 B5
W4 B5
W5 A4
W6 B4
W7 B3
W8 A3
1
3
4
9
Replace by wire
Replace by wire
