Philips MX1060D - Chips Layout

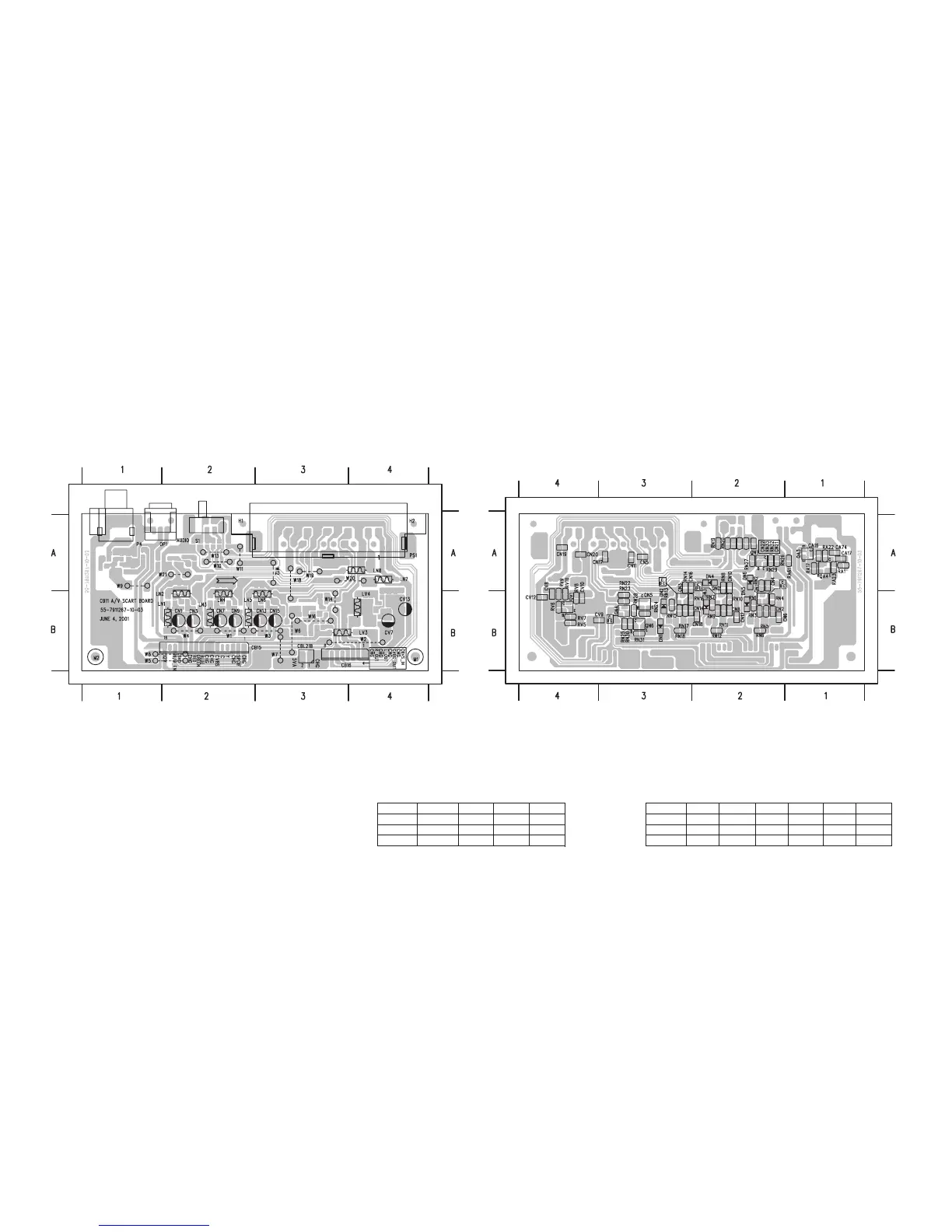

COMPONENTS LAYOUT
8B-28B-2
CHIPS LAYOUT
SCART version
SCART version
CA1 SKY MOUNT
CA16 A1
CA17 A1
CA74 A1
CB15 B2
CB16 B3
CBL21B B3
CN1 B2
CN10 A2
CN11 A3
CN12 B2
CN13 B3
CN14 B3
CN15 B3
CN16 A3
CN17 A3
CN18 B2
CN19 A4
CN2 B2
CN20 A4
CN21 A2
CN22 A2
CN3 B2
CN4 A2
CN5 A3
CN6 B2
CN7 B2
CN8 B2
CN9 B2
CV10 B4
CV12 B4
CV13 B4
CV7 B4
CV8 B4
CV9 B4
DN1 B3
DN2 B3
DN3 B2
DN4 A2
DN5 B2
DN6 A2
LN1 B2
LN2 B2
LN3 B2
LN4 B2
LN5 B2
LN6 B3
LN7 A4
LN8 A4
LV3 B3
LV4 B4
OP1 A1
P4 A1
PS1 A3
QA3 A1
QA4 A1
QN1 B2
QN2 B2
QN3 B3
QN4 B3
QN5 B3
QN6 B3
QN7 A2
QV1 B4
RA1 A1
RA17 A1
RA22 A1
RA23 A1
RA61 A1
RN1 B2
RN10 B2
RN11 B2
RN12 B2
RN13 B3
RN14 A3
RN15 B3
RN16 B3
RN17 B3
RN18 B3
RN19 A2
RN2 A2
RN20 A2
RN22 B3
RN23 B3
RN24 B3
RN25 B3
RN26 A2
RN27 A2
RN28 B3
RN29 A2
RN3 B2
RN30 B3
RN31 B3
RN32 A2
RN33 A2
RN4 B2
RN5 B2
RN6 B2
RN7 B2
RN8 A2
RN9 B2
RV10 B4
RV5 B4
RV6 B4
RV7 B4
RV8 B4
RV9 B4
S1 A2
W1 B2
W10 A2
W11 A2
W12 A3
W13 A2
W14 B3
W16 B3
W18 A3
W19 A3
W2 B3
W20 A4
W21 A2
W3 B3
W4 B2
W5 B2
W6 B3
W7 B3
W8 B2
W9 A1
Measurement in DVD playing Mode (5,1 Channel Disc)
Pin No. QN4 QN5 QN6 QN7 QA3 QA4
B 0V 11,3V 0,6V 4,5V 1,57V 1,75V
C 12V 12V 0V 5V 0V 4,98V
E 0V 12V 0V 5V 1,75V 1,54V
Measurement done with ABEX TVD541 (White 100%)
Pin No. QV1 QN1 QN2 QN3
B 0,68V
p-p
0,5V
p-p
0,5V
p-p
0,5V
p-p
C 1,07V
p-p
0,8V
p-p
0,8V
p-p
0,8V
p-p
E 0,62V
p-p
0,5V
p-p
0,5V
p-p
0,5V
p-p
