Philips MX1060D - Version Package; Location of Pc Boards

1-2

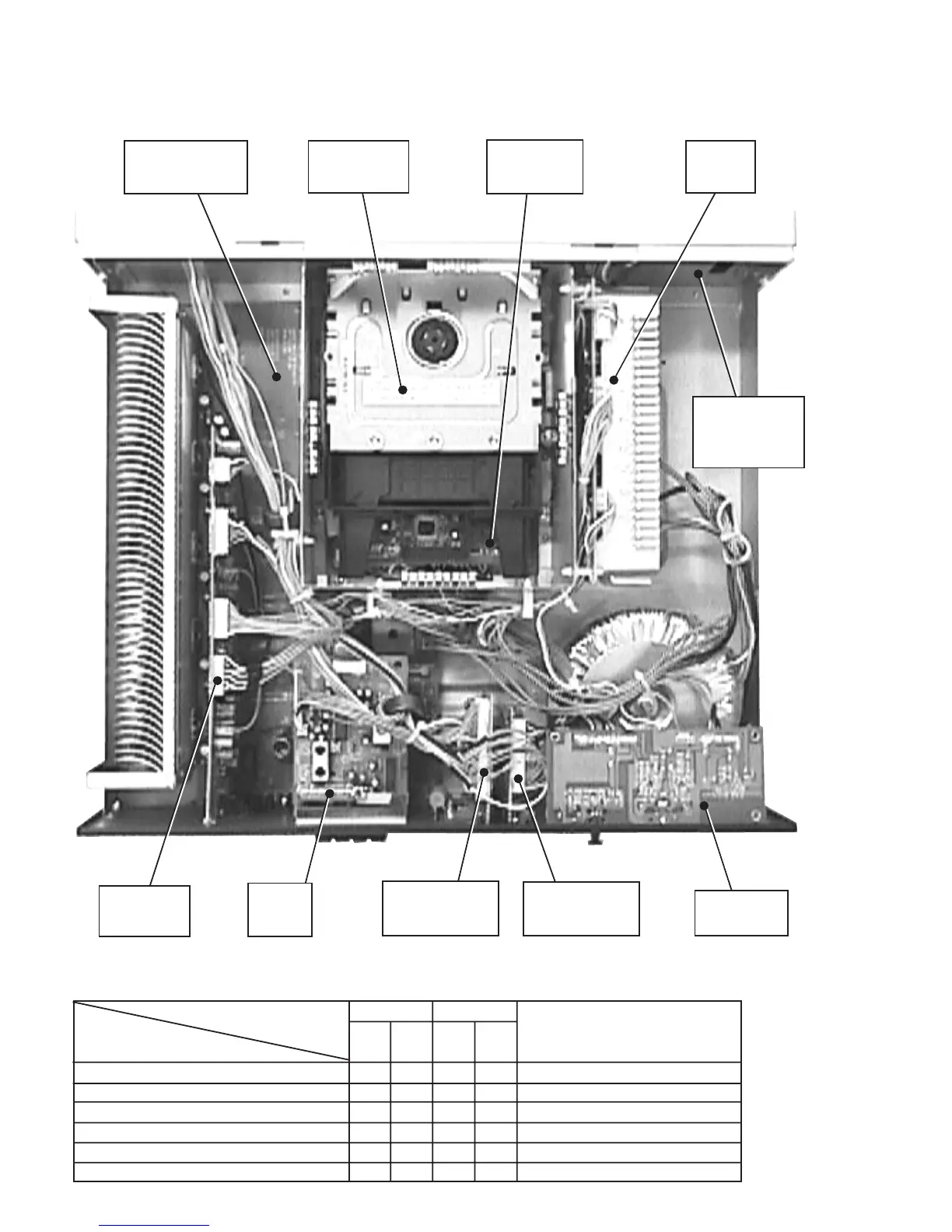

LOCATION OF PC BOARDS
Front Board
(behind the
metal panel)
Main Amplifier
Board
DVD Mech
Loader
DVD Main
Board
PSU
Board
Pro-Logic
Board
Tuner
Board
Audio Switch
Board
Video Switch
Board
AV Output
Board
Package Unit: /22 /22S
Center Unit DFR1500/00 x
Center Unit DFR1600/00S x
Sub-woofer SW965/00 x 3139 785 22970
Sub-woofer SW966/00S x 3139 785 22890
Satellite Speakers CS985/17 x
Satellite Speakers CS990/17S x
Type /Versions: MX1050D MX1060D For repair see Service Manual
with 12NC given below
VERSION PACKAGE:
