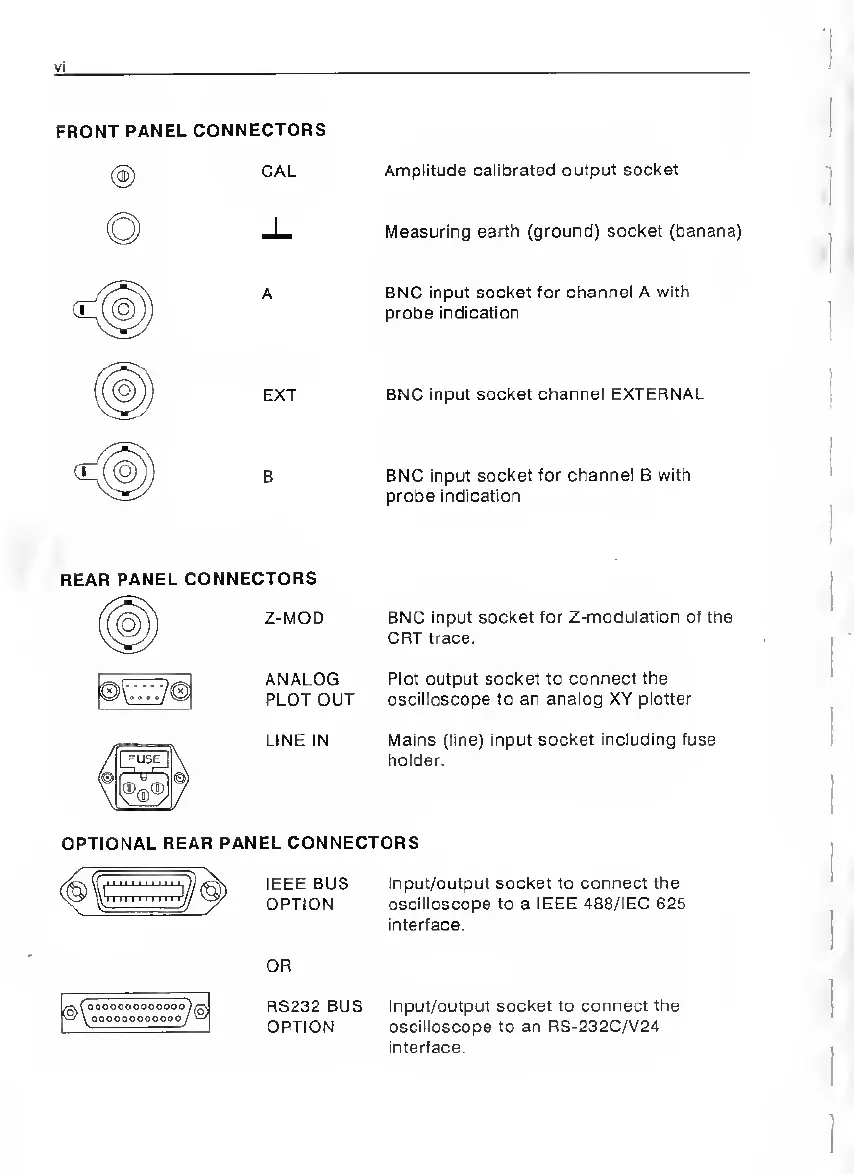

FRONT PANEL CONNECTORS
CAL
Amplitude calibrated output socket
Measuring earth (ground) socket (banana)
A BNC input socket for channel A with
probe indication
EXT BNC input socket channel EXTERNAL
B
BNC Input socket for channel B with
probe indication
REAR PANEL CONNECTORS
Z-MOD
BNC input socket for Z-modulation of the
CRT trace.
ANALOG Plot output socket to connect the
PLOT OUT oscilloscope to an analog XY plotter
LINE IN Mains (line) input socket including fuse
holder.
OPTIONAL REAR PANEL CONNECTORS
IEEE BUS
OPTION
Input/output socket to oonnect the
oscilloscope to a IEEE 488/IEC 625
interface.
OR
RS232 BUS Input/output socket to connect the
OPTION oscilloscope to an RS-232C/V24
Interface.
