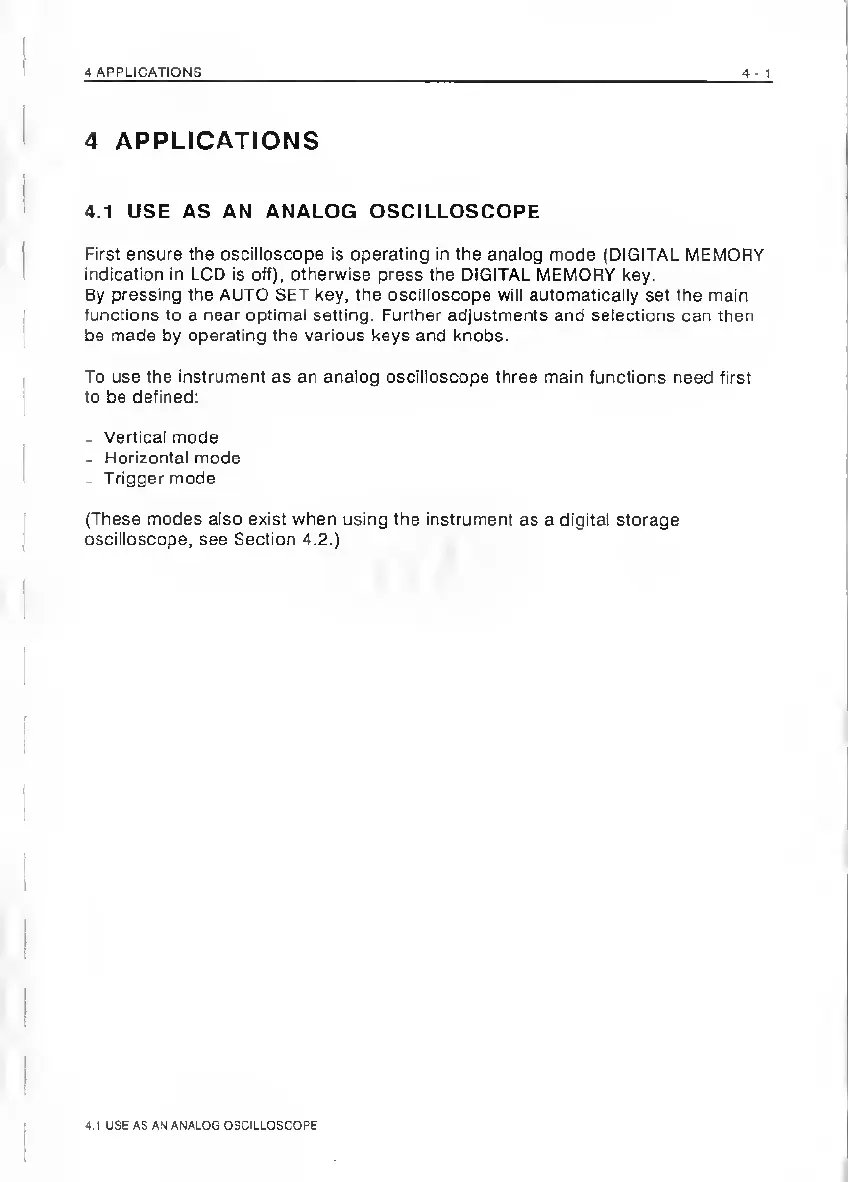

4 APPLICATIONS
4 • 1
4 APPLICATIONS
4.1 USE AS AN ANALOG OSCILLOSCOPE
First ensure the oscilloscope is operating in the analog mode (DIGITAL MEMORY
indication in LCD is off), otherwise press the DIGITAL MEMORY key.
By pressing the AUTO SET key, the oscilloscope will automatically set the main
functions to a near optimal setting. Further adjustments and selections can then
be made by operating the various keys and knobs.
To use the instrument as an analog oscilloscope three main functions need first
to be defined:
. Vertical mode
- Horizontal mode
- Trigger mode
(These modes also exist when using the instrument as a digital storage
oscilloscope, see Section 4.2.)
