3
OPEBATING
INSTRUCTIONS
3
-
1
3

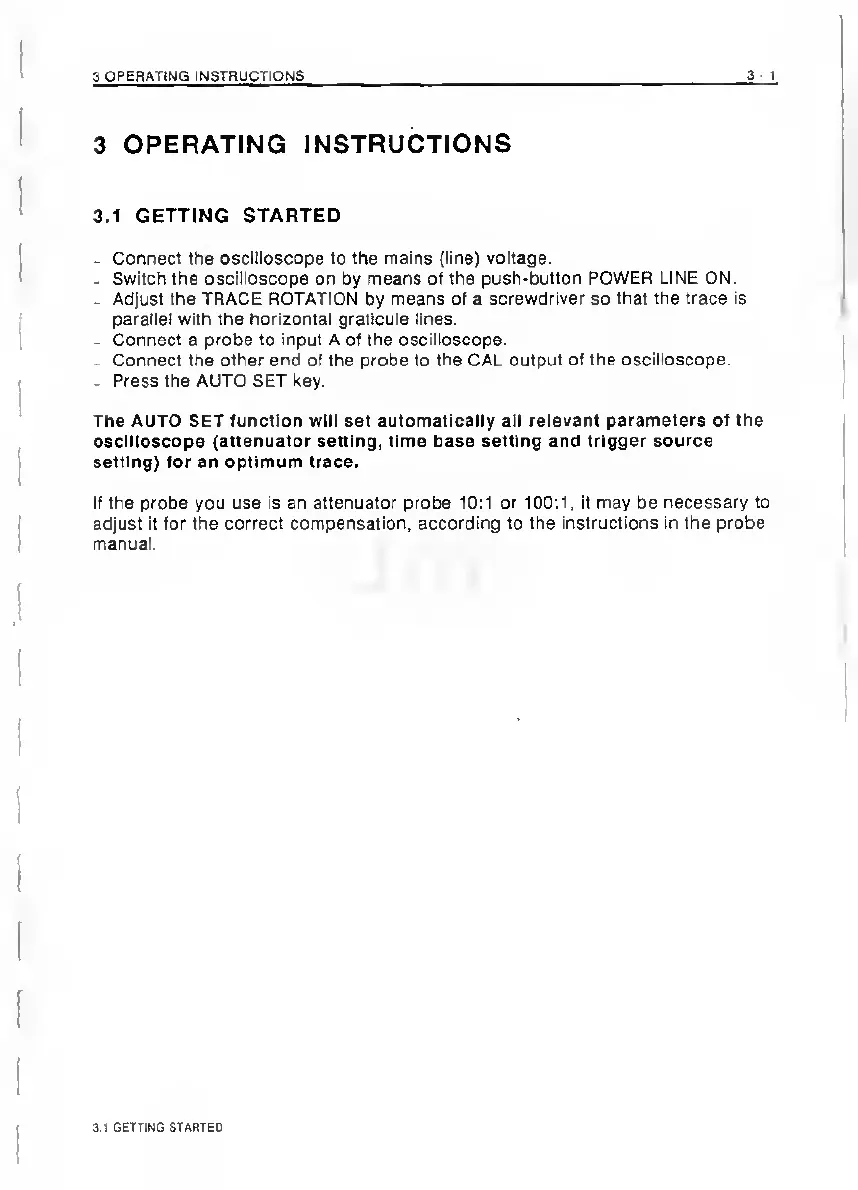

OPERATING
INSTRUCTIONS
3.1
GETTING
STARTED
-
Connect
the
oscilloscope
to
the
mains
(line)
voltage.
-
Switch
the
oscilloscope
on
by
means
of
the
push-button
POWER
LINE
ON.
-
Adjust
the
TRACE
ROTATION
by
means
of
a
screwdriver
so
that
the
trace
is
parallel
with
the
horizontal
graticule
lines.
-
Connect
a
probe
to
input
A
of
the
oscilloscope.
-
Connect
the
other
end
of
the
probe
to
the
CAL
output
of
the
oscilloscope.
-
Press
the
AUTO
SET
key.
The
AUTO
SET
function
will
set
automatically
all
relevant
parameters
of
the
oscilloscope
(attenuator
setting,
time
base
setting
and
trigger
source
setting)
for
an
optimum
trace.
If
the
probe
you
use
Is
an
attenuator
probe
10:1
or
100:1,
it
may
be
necessary
to
adjust
It
for
the
correct
compensation,
according
to
the
instructions
in
the
probe
manual.
3.1
GSTTING
STARTED
