5 PLOTTING AND PRINTING S • 9

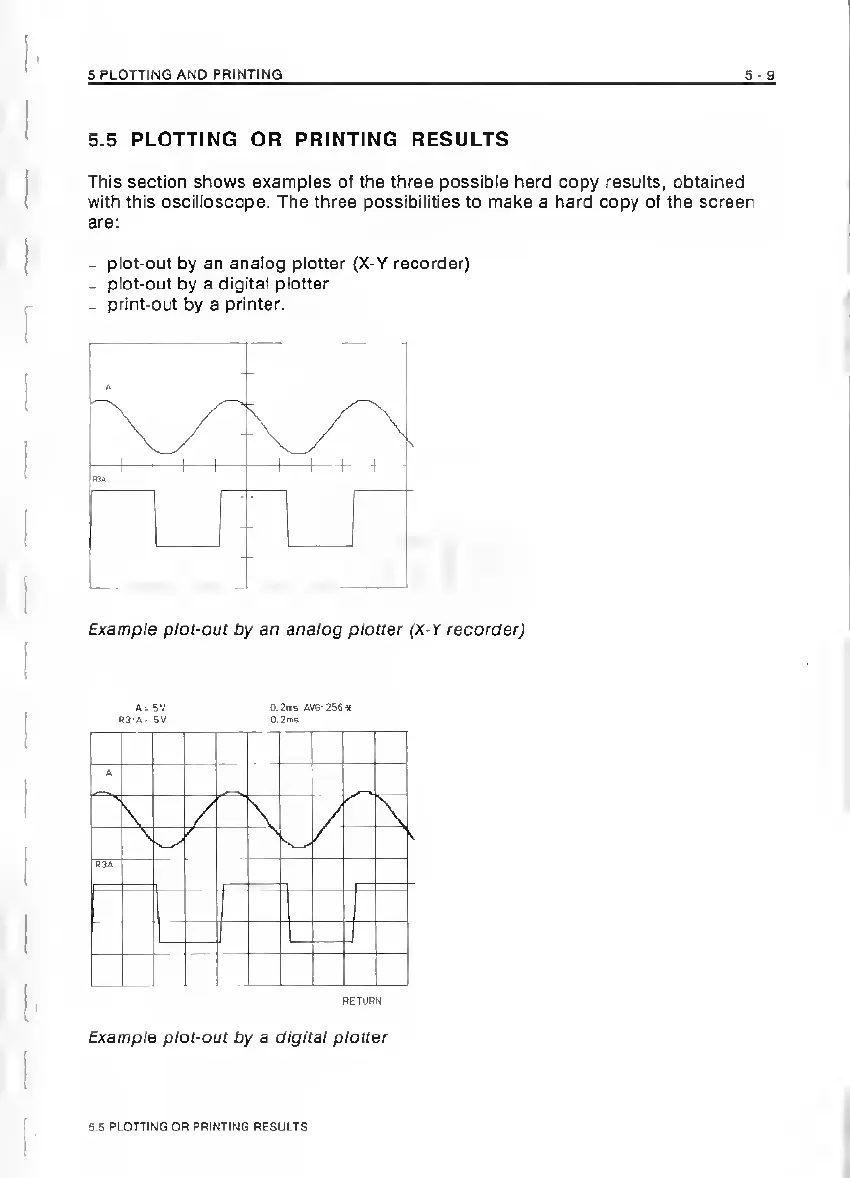

5.5 PLOTTING OR PRINTING RESULTS
This section shows examples of the three possible hard copy results, obtained
with this oscilloscope. The three possibilities to make a hard copy of the screen
are:
- plot-out by an analog plotter {X-Y recorder)
. plot-out by a digital plotter
- print-out by a printer.
Example plot-out by an analog plotter (X-Y recorder)
AsSV a2nis AVG*2S6«
5V O.Zms
Example plot-out by a digital plotter
5.5 PLOTTING OR PRINTING RESULTS
