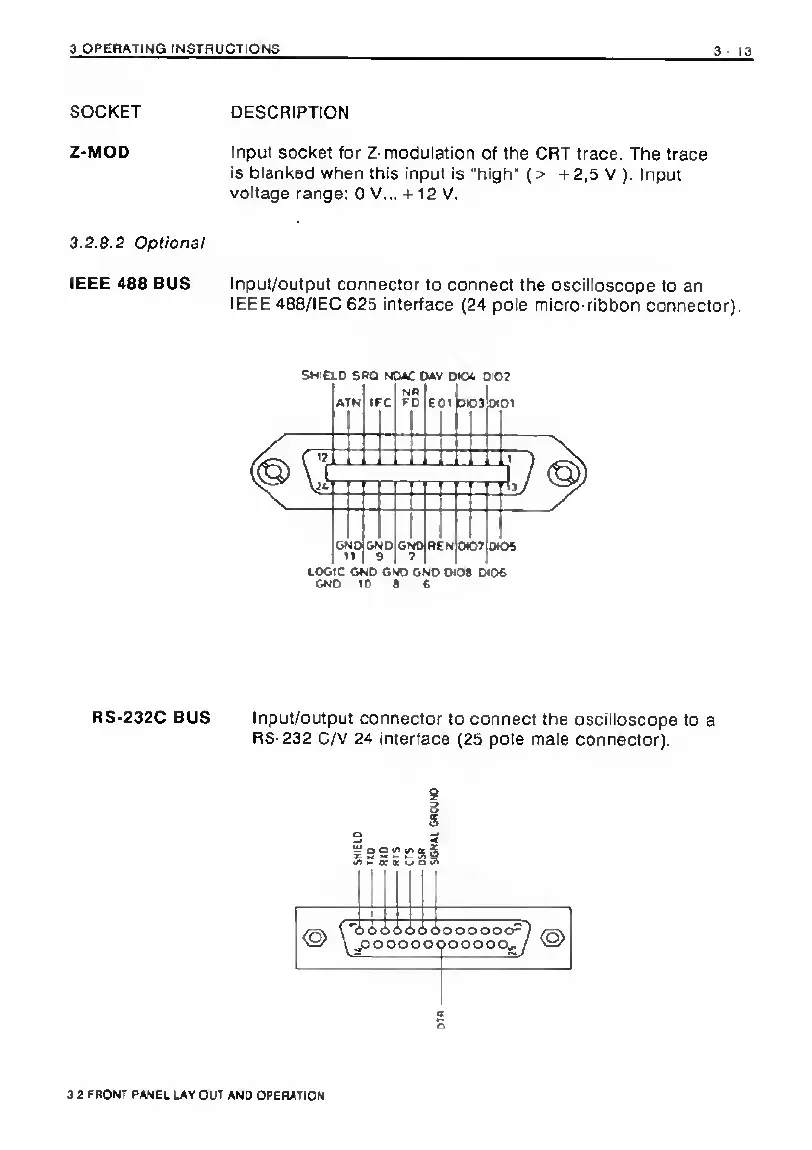

3 OPERATING INSTflUCTIONS
3 - 13
SOCKET
Z-MOD
3.2.B.2 Optional
IEEE 488 BUS
RS-232C BUS
DESCRIPTION
Input socket for Z-moduiation of the CRT trace. The trace
is blanked when this input is "high" (> +2,5 V ). Input
voltage range: 0 V... + 12 V.
Input/output connector to connect the oscilloscope to an
IEEE 4e8/IEC 625 interface (24 pole micro-ribbon connector).
Shield soq no<c cmv dol 0102
LOGIC GND 610 GNO DOS DI04
ONO 10 e e
Input/output connector to connect the oscilloscope to a
RS-232 C/V 24 interface (25 pole male connector).
V e e 1/t qt r
3 2 FRONT PANEL LAY OUT AND OPERATION
