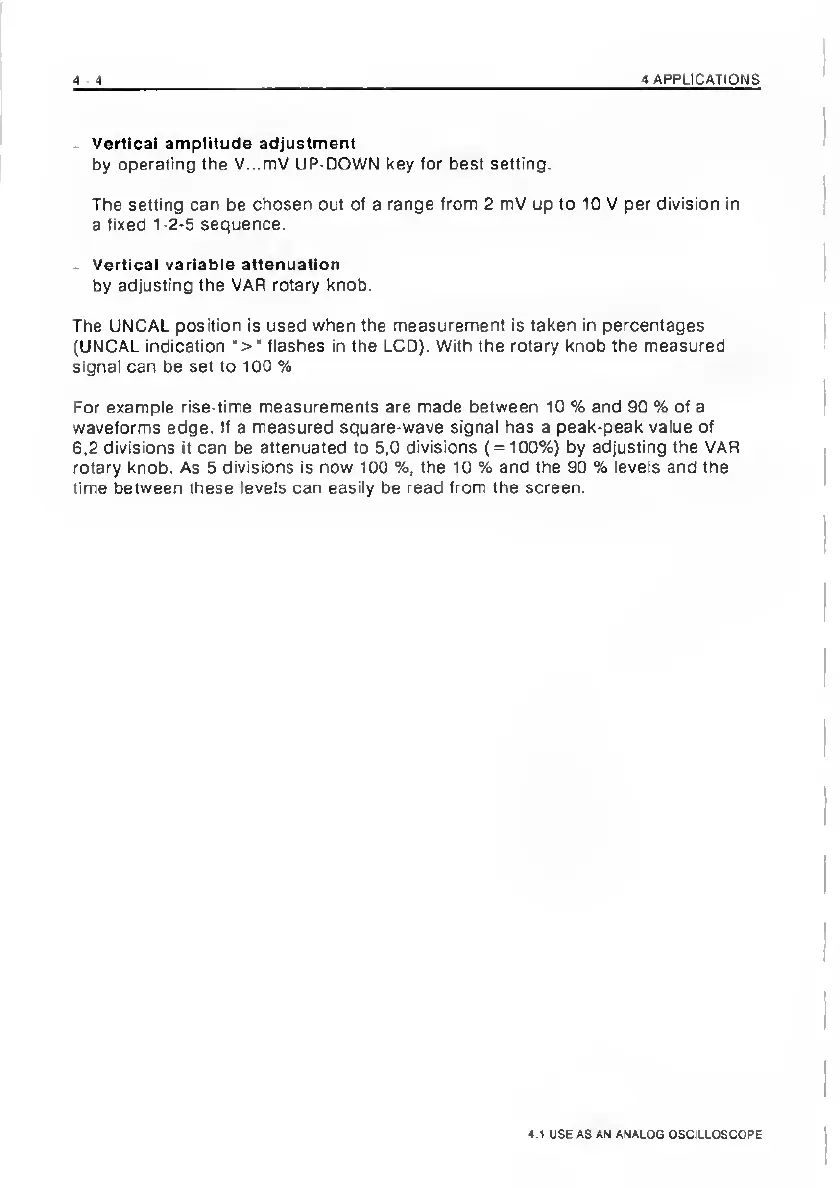

APPLICATIONS
Vertical
amplitude
adjustment
by
operating
the
V...mV
UP-DOV/N
key
for
best
setting.
The
setting
can
be
chosen
out
of
a
range
from
2
mV
up
to
10
V
per
division
in
a
fixed
1-2>S
sequence.
.
Vertical
variable
attenuation
by
adjusting
the
VAR
rotary
knob.
The
UNCAL
position
is
used
when
the
measurement
is
taken
in
percentages
(UNCAL
indication
■
>'
fiashes
in
the
LCD).
With
the
rotary
knob
the
measured
signal
can
be
set
to
100
%
Per
exampie
rise*time
measurements
are
made
between
10
%
and
90
%
of
a
waveforms
edge.
If
a
measured
square-wave
signal
has
a
peak-peak
value
of
6.2
divisions
it
can
be
attenuated
to
5,0
divisions
(=100%)
by
adjusting
the
VAR
rotary
knob.
As
5
divisions
is
now
100
%,
the
10
%
and
the
90
%
levels
and
the
time
between
these
levels
can
easily
be
read
from
the
screen.
4.1
USE
AS
AN
ANALOG
OSCILLOSCOPE
