Technical Specifications, Diversity, and Connections
EN 4 Q552.2L LA2.
2012-Mar-16
back to
div. table
7 - HDMI 1: Digital Video - In, Digital Audio with ARC - In/
Out

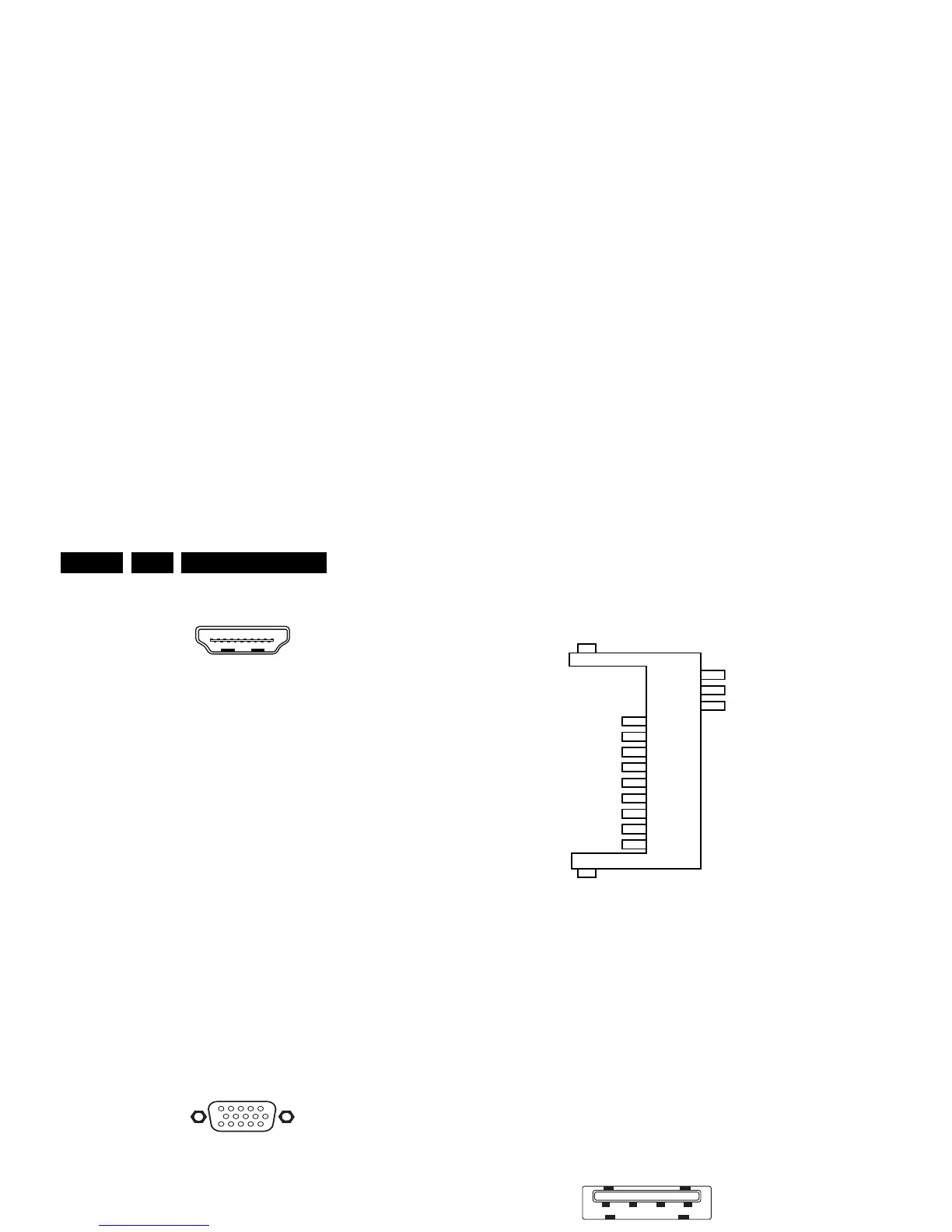

Figure 2-4 HDMI (type A) connector
1 - D2+ Data channel j
2-Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5-Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8-Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 -Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 -+5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
8 - Aerial - In
- - F-type Coax, 75 ohm D
9 - VGA: Video RGB - In
Figure 2-5 VGA Connector
1 - Video Red 0.7 V
PP
/ 75 ohm j
2 - Video Green 0.7 V
PP
/ 75 ohm j
3 - Video Blue 0.7 V
PP
/ 75 ohm j
4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 -n.c.
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
2.3.3 Side Connections
10 - SD-Card: Secure Digital Card - In/Out (optional)
Figure 2-6 SD-Card connector
1 - DAT3/CS Signal jk
2 - CMD/DI Signal k
3 - GND1 Gnd H
4 - Vdd Supply k
5 - CLOCK Signal k
6 - GND2 Gnd H
7 - DAT0/D0 Signal jk
8 - DAT1/IRQ Signal jk
9 - DAT2/NC Signal jk
10 - CD Signal j
11 - GND Gnd H
12 - WP Signal j
13 - GND Gnd H
14 - GND Gnd H
11 - USB2.0
Figure 2-7 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
12- HDMI : Digital Video, Digital Audio - In
See 7 - HDMI 2: Digital Video, Digital Audio - In
2.4 Chassis Overview
Refer to chapter Block Diagrams for PWB/CBA locations.
