Philips Q552.2L - Wiring Diagram Berlinale 40

EN 74Q552.2L LA 9.
Block Diagrams
2012-Mar-16
back to
div. table

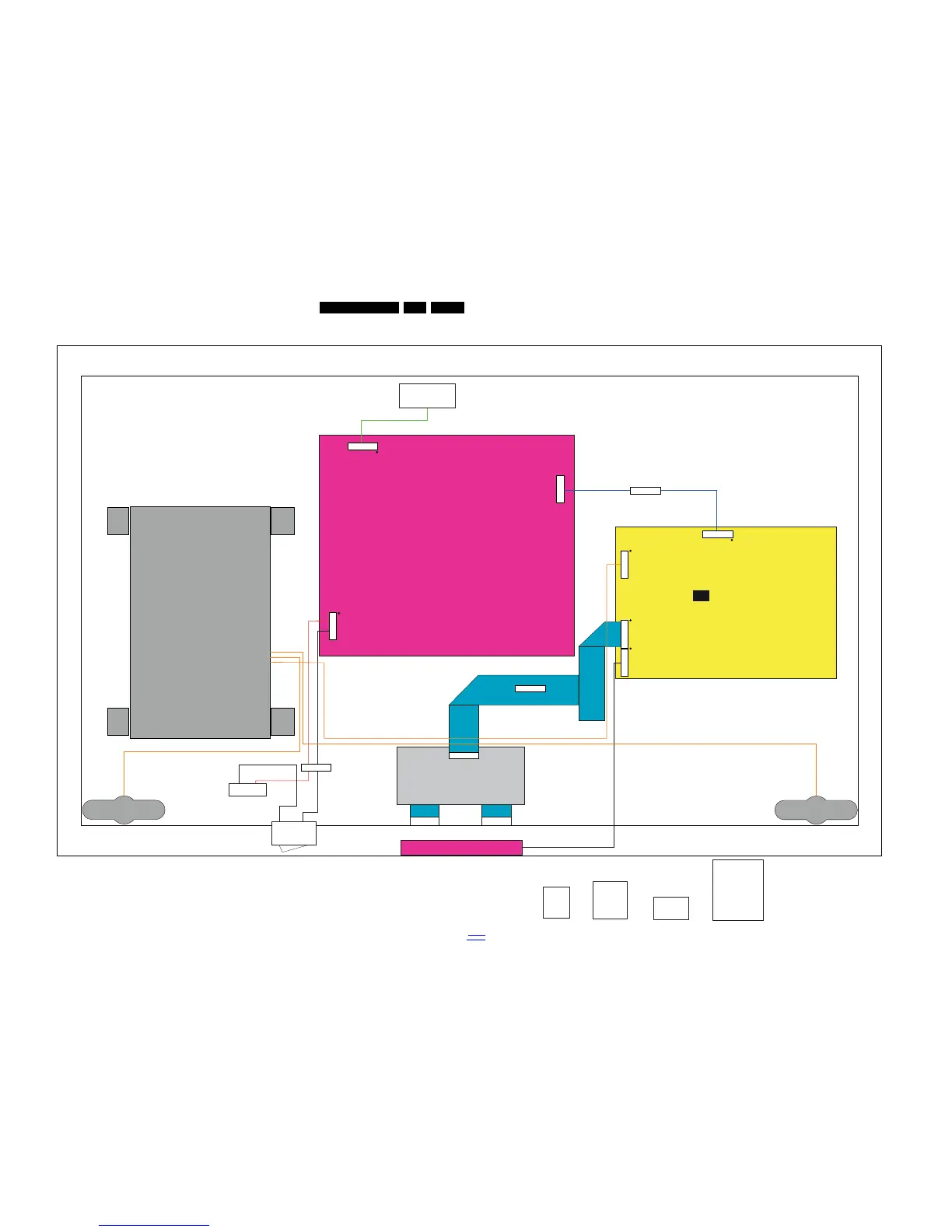

9.4 Wiring diagram Berlinale 40"
MAINS
SWITCH
INLET
LED
POWER
MAIN POWER SUPPLY
40" PLDE-P016A
(1005)
SSB
3139 123 6521.x
(1150)
B
LOUDSPEAKER
(5213)
TWEETER (5216)
TWEETER (5217)
CN2 CN1
51P
1316
10p
2p
1308
1M99
14p
1M95
14p
8M95
1M19
8p
1735
4p
1G51
51p
DISPLAY PANEL
(1004)
IR/LED/CONTROL BOARD
(1108)
8308
8G51
WIRING DIAGRAM 40" BERLINALE
19110_065_110908.eps
110908
1G51
(B06b)
1. +VDISP
2. +VDISP
3. +VDISP
4. +VDISP
|
|
51. N.C.
1M19 (B09a)
1. LIGHT-SENSOR
2. GND
3. RC
4. LED-2
5. +3V3-STANDBY
6. LED-1
7. KEYBOARD
8. +5V
1735 (B03a)
1. LEFT-SPEAKER
2. GND
3. GND
4. RIGHT-SPEAKER
1M95 (B03c)
1. +3V3-STANDBY
2. STANDBY
3. GND
4. GND
5. +12VIN
6. +12VIN
7. +24V-AUDIO-POWER
8. GND-AUDIO
9. LAMP-ON
10. BACKLIGHT-PWM_BL-VS
11. BACKLIGHT-BOOST
12. POWER-OK
13. +24V
14. GND_AL
