Philips Q552.2L - Block Diagrams; Wiring Diagram Blockbuster;Emmy 32

Block Diagrams
EN 71Q552.2L LA 9.
2012-Mar-16
back to
div. table
9. Block Diagrams

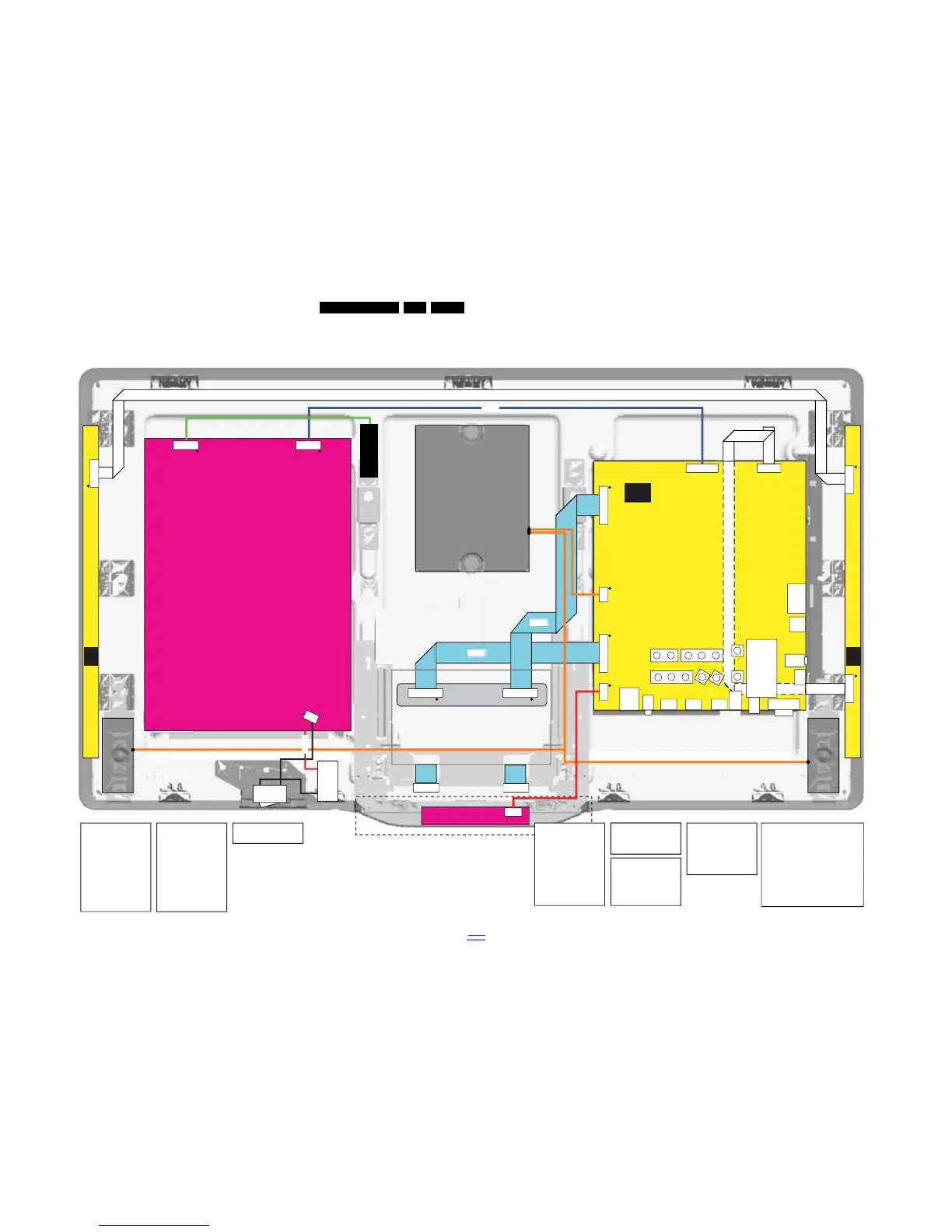

9.1 Wiring diagram Blockbuster/Emmy 32"
LCD DISPLAY
(1004)
MAIN POWER SUPPLY
32
" PLDC-P005A
(1005)
LOUDSPEAKER
(5213)
LOUDSPEAKER
(5216)
LOUDSPEAKER
(5216)
1M19
8P
1D38
3P
1M95
14P
1M59
26P
SD-CARD
READER
USB
ETHER
NET
SPDIF
HDMIHDMIHDMI
VGA
1316
10P
1M95
14P
MAINS
SWITCH
(8308)
INLET
8M95
19110_008_110323.eps
110711
TO DISPLAY
51P
TO DISPLAY
41P
C2 C1
IR/LED/CONTROL BOARD
(1108)
J1
8P
WIRING DIAGRAM 32" BLOCKBUSTER / EMMY
1M19 (B09A)
1. LIGHT-SENSOR
2. GND
3. RC
4. LED-2
5. +3V3-STAN D B Y
6. LED-1
7. KEYBOARD
8. +5V
1735 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. GND-AUDIO
4. RIGHT-SPEAKER
1D38 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. RIGHT-SPEAKER
1308 (PSU)
1. N
2. L
1M95 (B03C)
1. +3V3-STANDBY
2. STANDBY
3. GND
4. GND
5. +12VIN
6. +12VIN
7. +24V-AUDIO-POWER
8. GND
9. LAMP-ON
10. BACKLIGHT-PWM_BL-VS
11. BACKLIGHT-BOOST
12. POWER-OK
13. +24V
14. GND
1M95 (PSU)
1. +3V3STDBY
2. STANDBY
3. GND
4. GND
5. +12V
6. +12V
7. +VSND
8. GND_SND
9. BL-ON-OFF
10. BL-DIM1
11. BL-I-CTRL
12. POK
13. +24V
14. GND1
1316 (PSU)
1. ANODE 1
2. NC
3. CATHODE 1
4. GND
5. ANODE 2
6. NC
7. CATHODE 2
8. NC
9. ANODE 3
10. NC
11. CATHODE 3
12. NC
13. ANODE 4
14. NC
15. CATHODE 4
1G51 (B06B)
1. +VDISP
2. +VDISP
3. +VDISP
4. +VDISP
|
|
51. CTRL-DISP
TO DISPLAY
SUPPLY
8308
1G50
41P
1G51
51P
2P
1308
*AMBILIGHT MODULE (1162)
AL
18P
1M86
*AMBILIGHT MODULE (1161)
AL
1M85
18P
1M83
26P
TUNER
SPDIF
PHONE
8M85
8M59
8G51
8G50
SSB
3139 123 6521.x
(1150)
B
*AMBILIGHT ONLY APLICABLE FOR EMMY STYLING
1M59 (B09A)
1. AMBI-SPI-CLK-OUT
2. GND
3. AMBI-SPI-SDO-OUT
4. AMBI-SPI-SDI-OUT-GI
5. V-AMBI
6. AMBI-PWM-CLK_B2
7. GND
8. AMBI-SPI-CS-OUTn_R2
9. AMBI-LATCH1_G2
10. V-AMBI
11. AMBI-BLANK_R1
12. AMBI-PROG_B1
13. AMBI-LATCH2_DIS
14. AMBI-TEMP
15. GND_AL
16. GND_AL
17. GND_AL
18. GND_AL
19. GND_AL
20. N.C.
21. +24V
22. +24V
23. +24V
24. +24V
25. +24V
26. +24V
LEADING EDGE
HDMI
