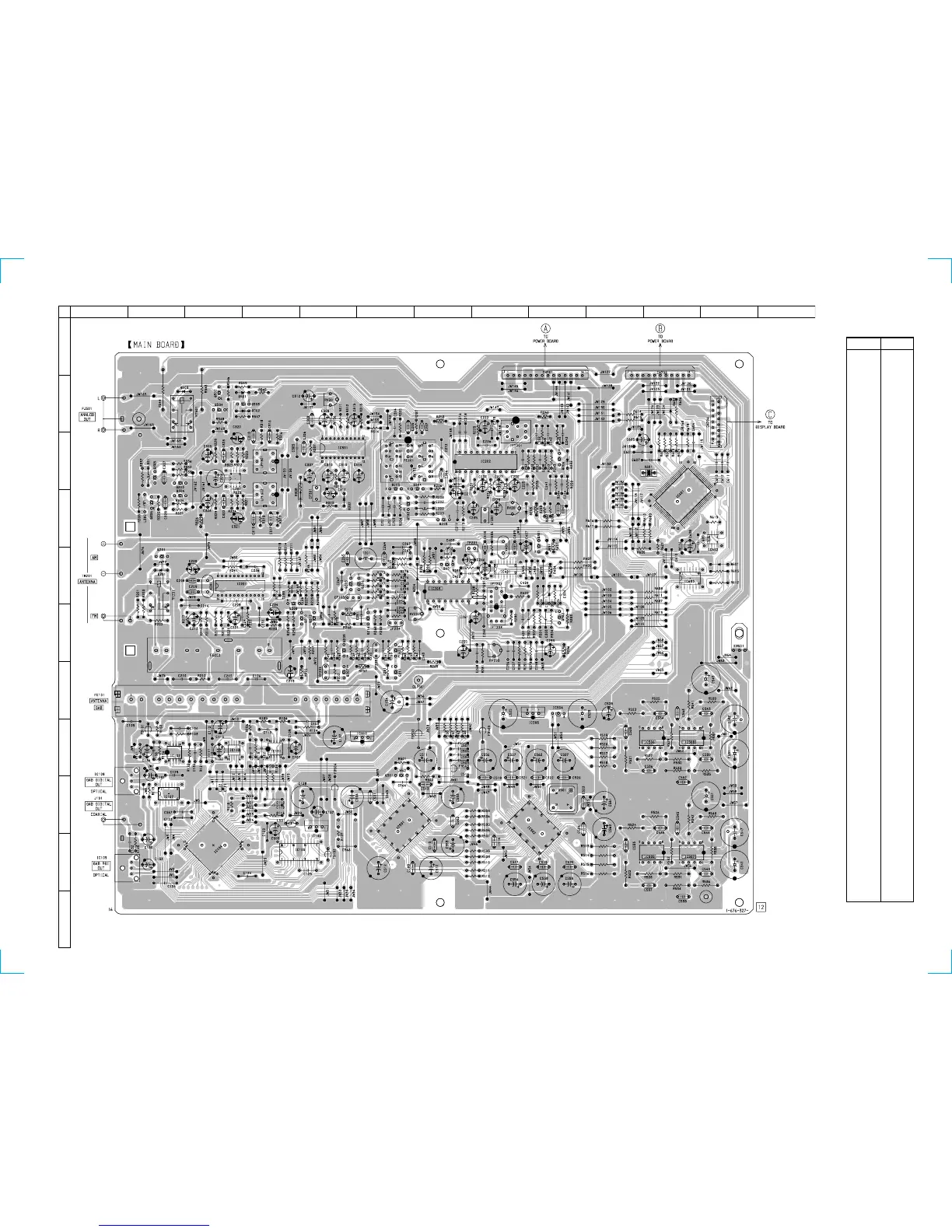

4-3. PRINTED WIRING BOARD MAIN SECTION
Ref. No. Location
D201 E-2
D202 C-9
D203 D-9
D204 E-7
D301 E-9
D302 C-5
D501 B-4
D502 B-4
D503 B-3
D601 D-12
D602 B-11
IC101 H-4
IC102 H-2
IC103 H-3
IC104 I-3
IC105 J-5
IC106 I-5
IC107 I-2
IC108 I-2
IC109 J-2
IC110 H-6
IC201 E-3
IC202 C-8
IC203 E-7
IC301 C-5
IC302 C-3
IC401 E-8
IC501 I-6
IC502 I-9
IC503 G-9
IC504 G-9
IC505 J-11
IC506 H-11
IC507 J-12
IC508 H-12
IC601 C-12
IC602 D-12
IC603 E-11
Q201 E-2
Q202 D-6
Q203 C-6
Q204 C-7
Q205 D-7
Q206 C-9
Q207 G-5
Q208 E-4
Q209 F-5
Q210 F-5
Q211 G-6
Q212 F-5
Q213 F-6
Q214 F-6
Q215 E-5
Q216 E-6
Q301 D-9
Q302 F-9
Q303 C-2
Q304 D-2
Q305 C-2
Q306 D-2
Q401 E-7
Q501 I-7
Q502 B-3
Q503 B-4
Q504 B-3
• Semiconductor
Location
(Page 27) (Page 27)
(Page 25)
12
A
B
C
D
E
F
G
H
I
J
K
345678910111213
• Refer to page 18 for Circuit Boards Location.
