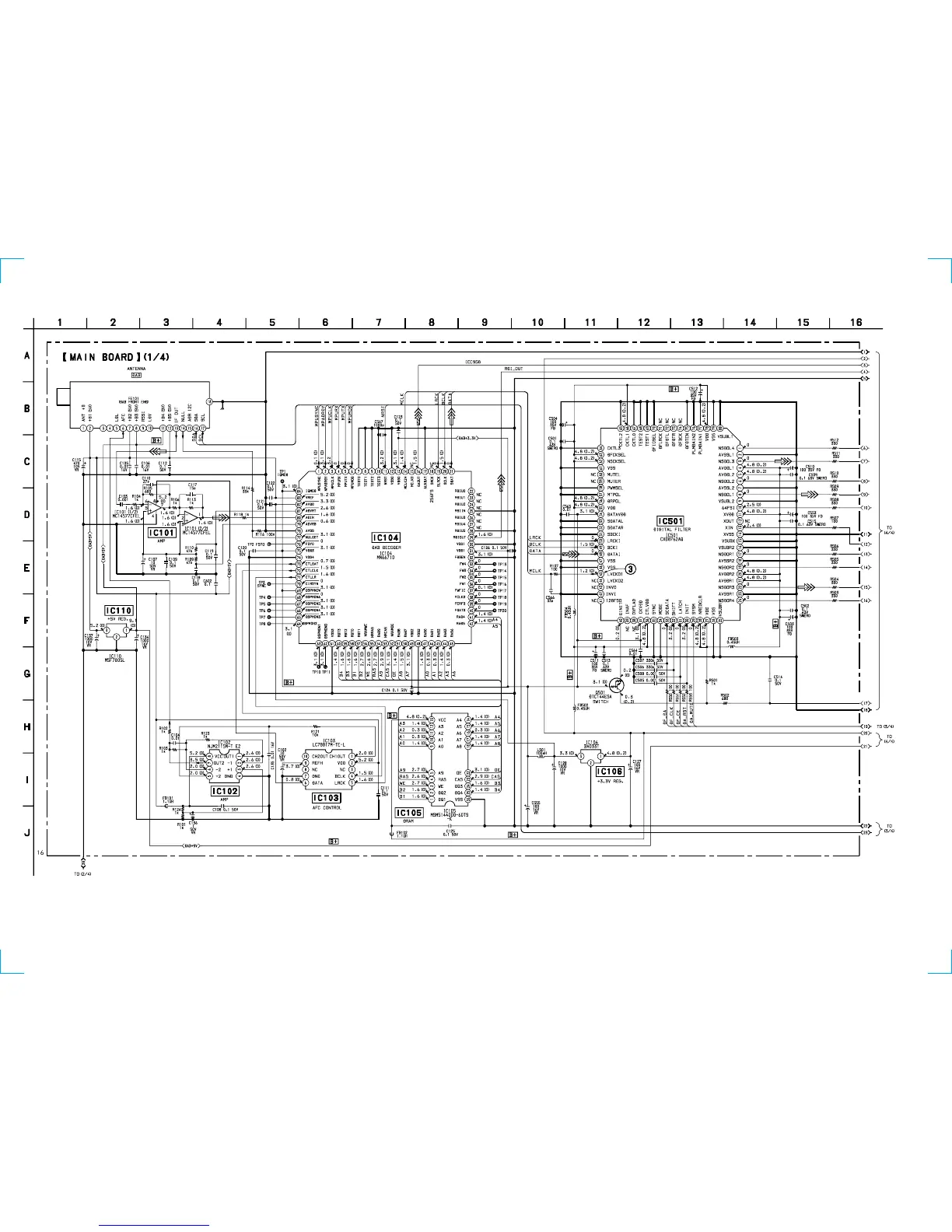

4-4. SCHEMATIC DIAGRAM MAIN SECTION (1/4)
• Refer to page 19 for Printed Wiring Board.
• Refer to page 18 for Waveform.
• Refer to page 28 for IC Pin Function Description.
• Refer to page 31 for IC Block Diagrams.
