35
51
52
52
53
54
55
56
57
56
57
58
59
60
61
62
63
not supplied
not supplied
not supplied
#3
#3
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#6
#6
T901
51 4-226-954-01 CHASSIS, SUB
52 4-226-951-01 CHASSIS (LR)
53 A-4428-525-A POWER BOARD, COMPLETE
54 A-4428-528-A MAIN BOARD, COMPLETE
* 55 3-349-025-41 HOLDER, PC BOARD
56 4-970-123-01 FOOT(F50180S)
57 4-970-124-01 CUSHION (F50180S)
58 3-657-760-00 WASHER
59 4-226-953-01 PANEL, BACK
60 3-703-244-00 BUSHING (2104), CORD
061 1-575-651-21 CORD, POWER
62 3-704-515-41 SCREW (BV/RING)
63 3-682-691-00 NUT,WASHER HEXAGON
0T901 1-435-330-11 TRANSFORMER, POWER
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

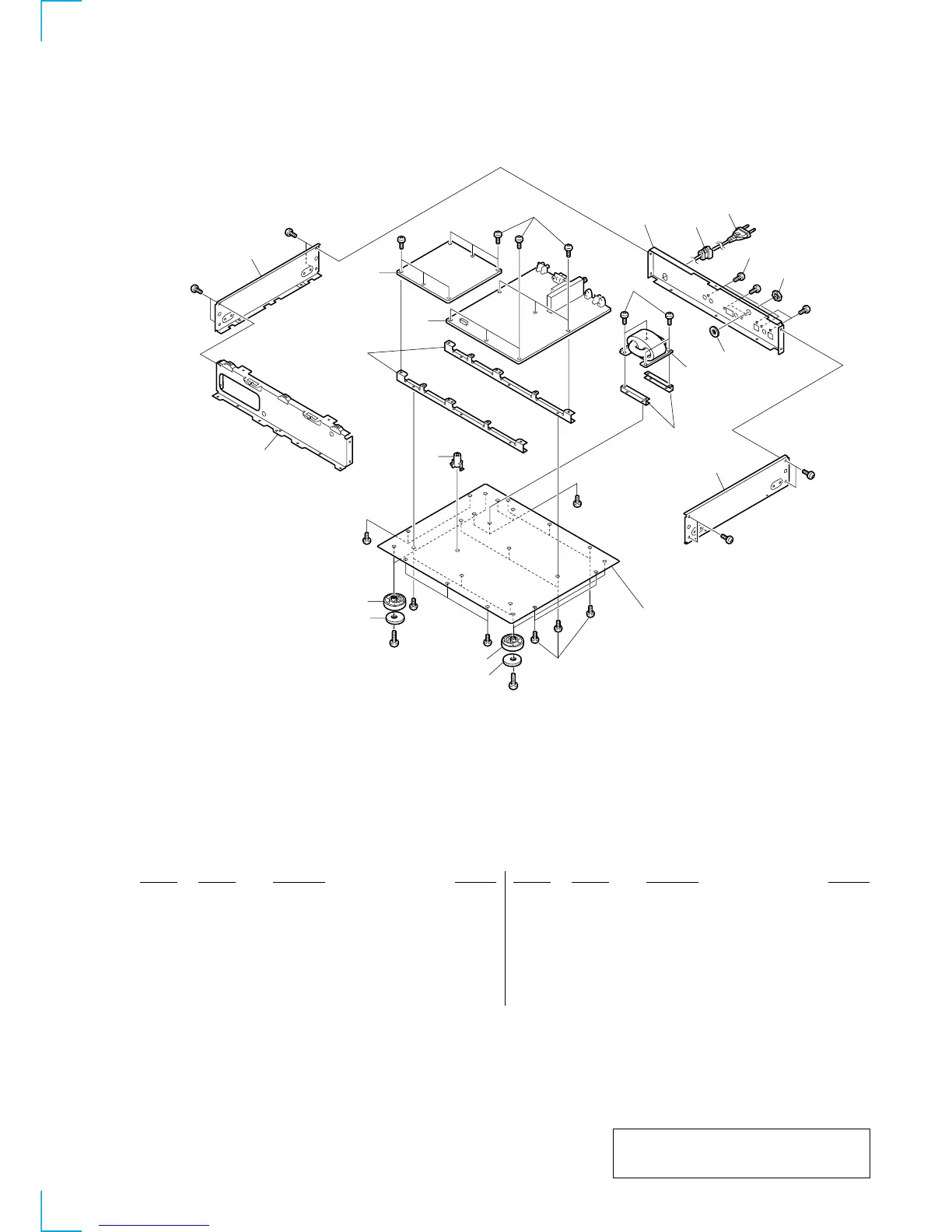

5-2. MAIN SECTION
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
To Next Page
